Door Open Detection Switch Circuit

Door Open Detection Switch Circuit

CIRCUIT DESCRIPTION
The door open detection switch is built in the door lock assembly. If is on when the door is open and off when the door is closed.

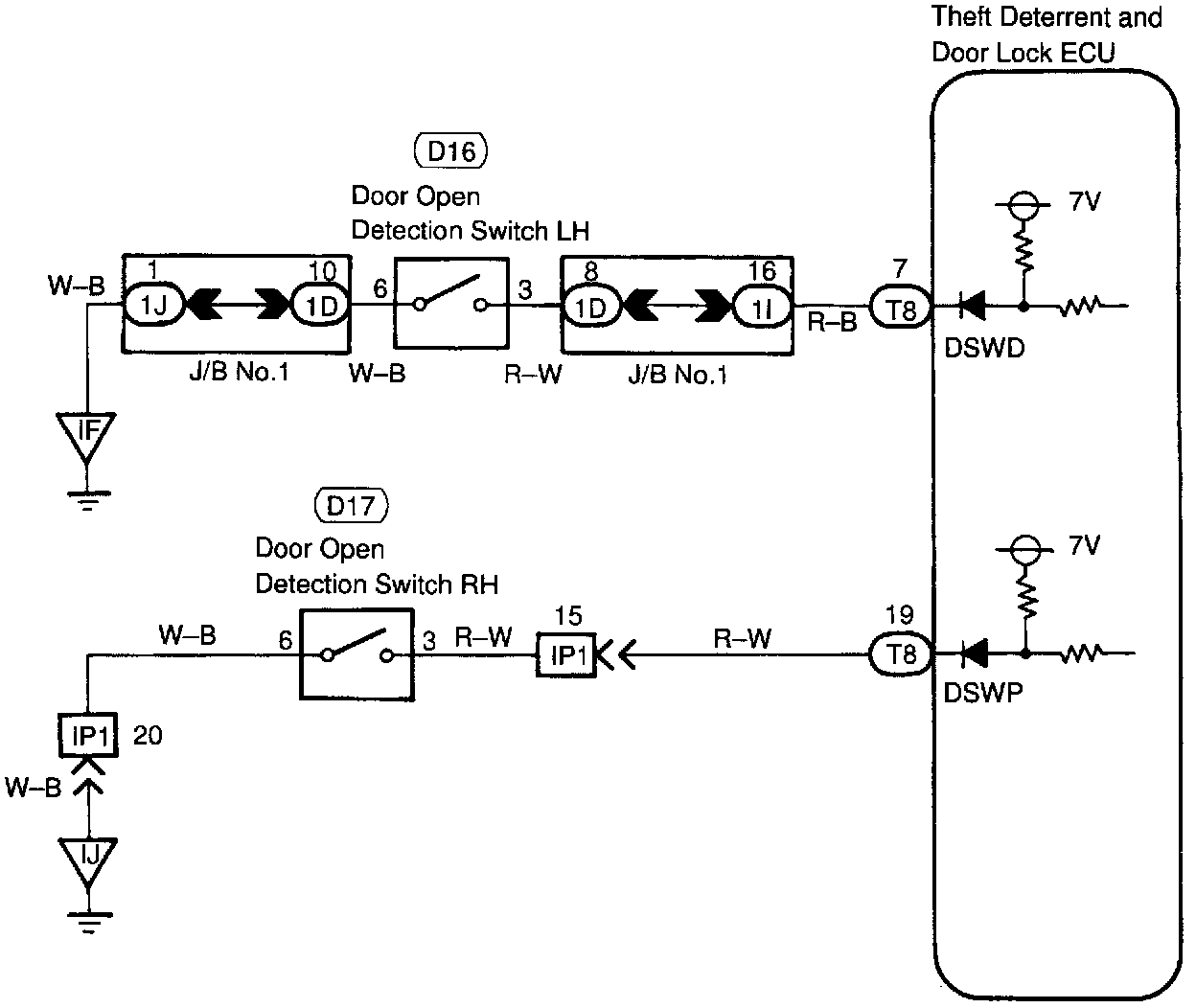

WIRING DIAGRAM

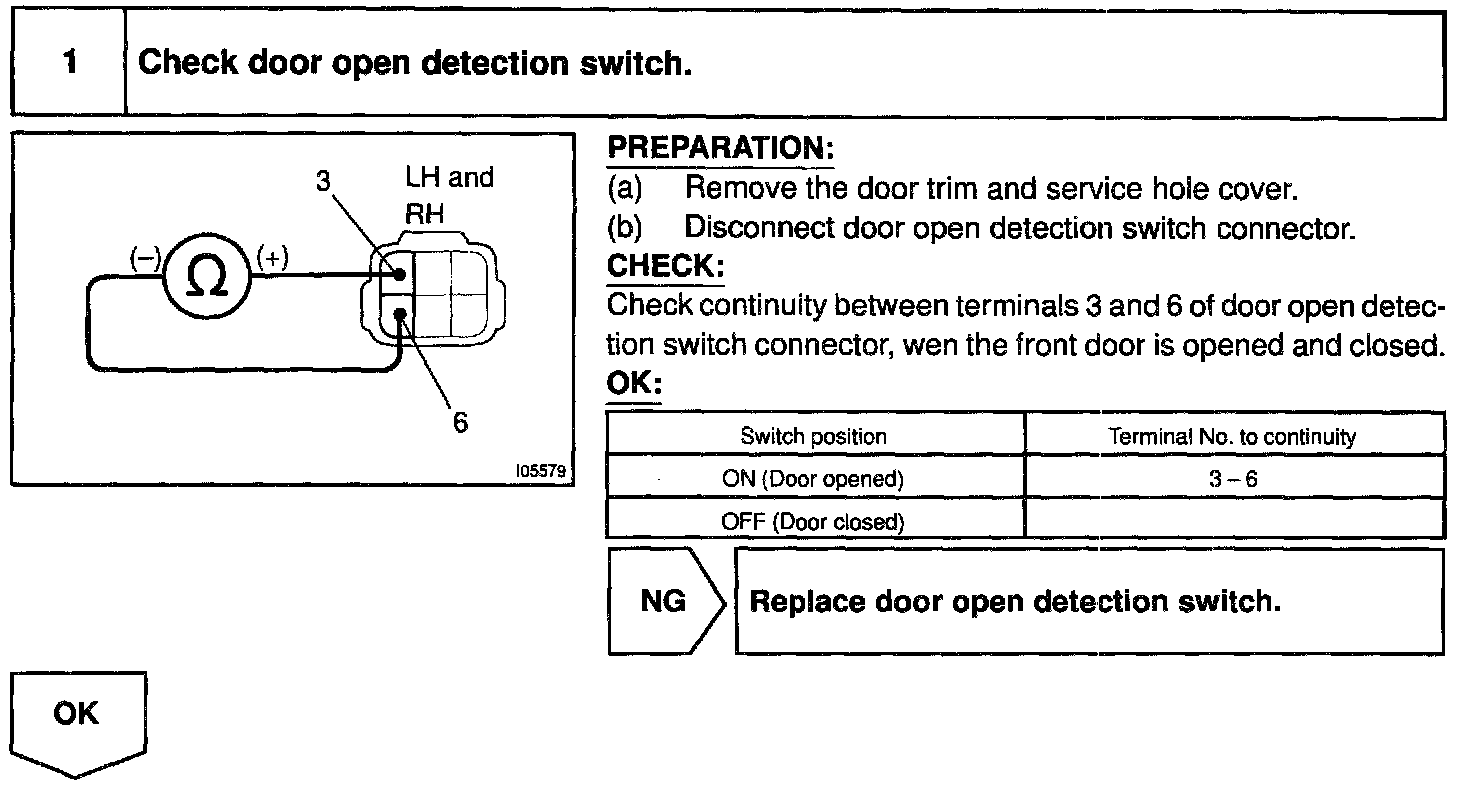

Step 1:

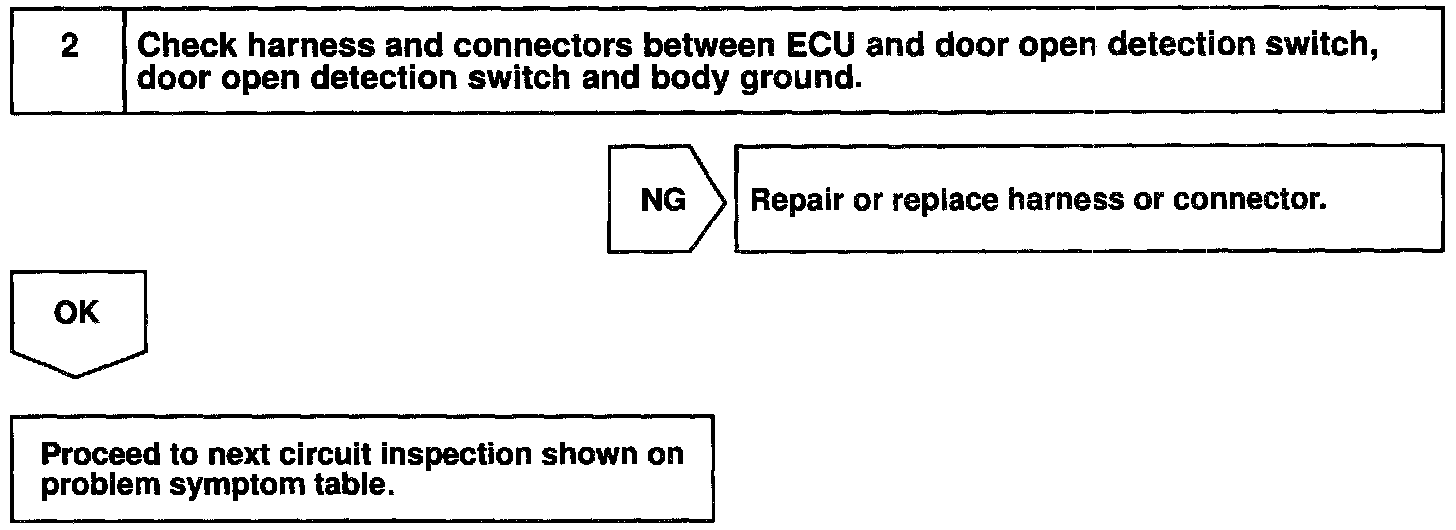

Step 2:

INSPECTION PROCEDURE
