Door Lock Motor Circuit

Door Lock Motor Circuit

CIRCUIT DESCRIPTION
This door lock motor locks and unlocks the door in accordance with signals from the ECU.

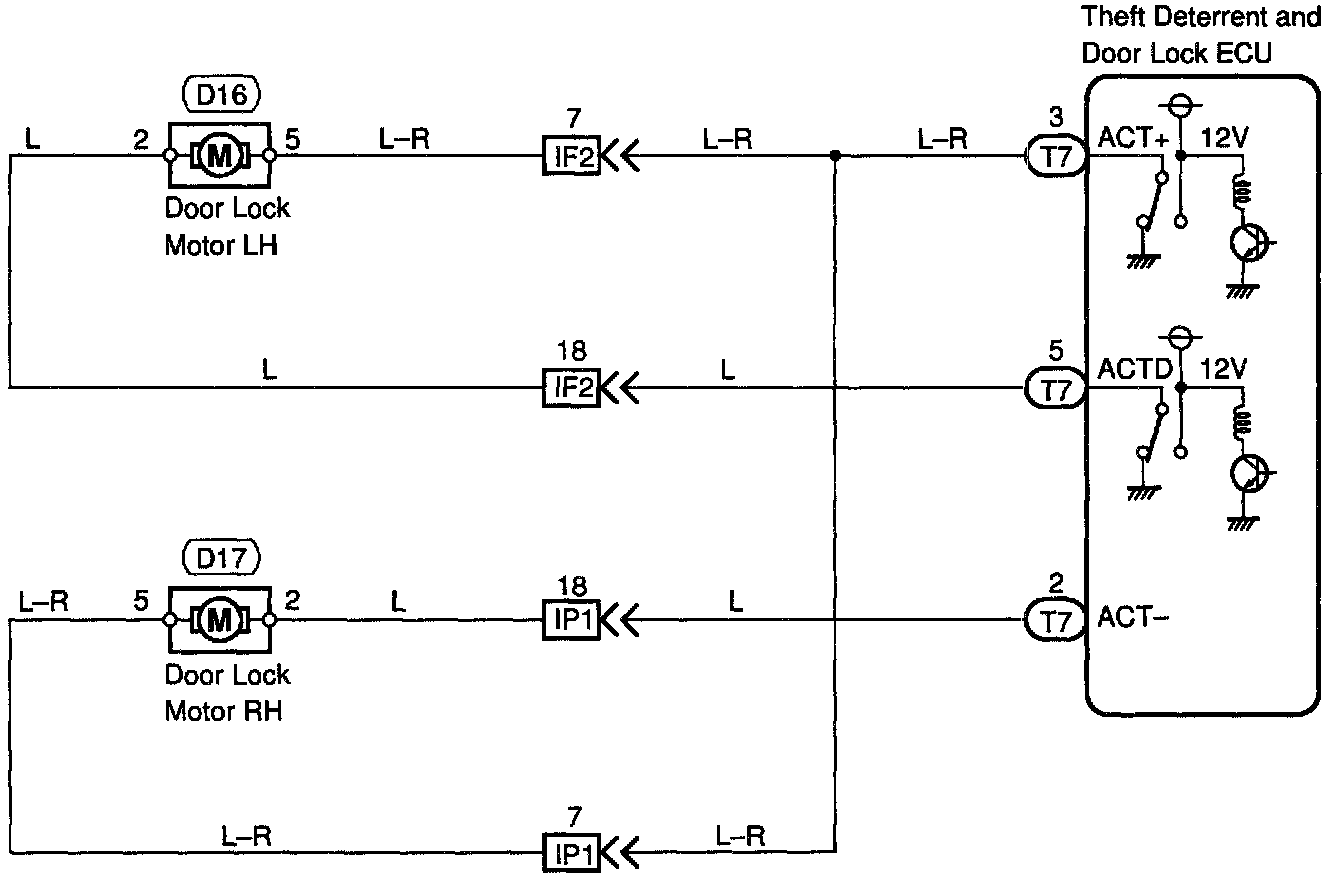

WIRING DIAGRAM

Step 1:

Step 2:

Step 3:

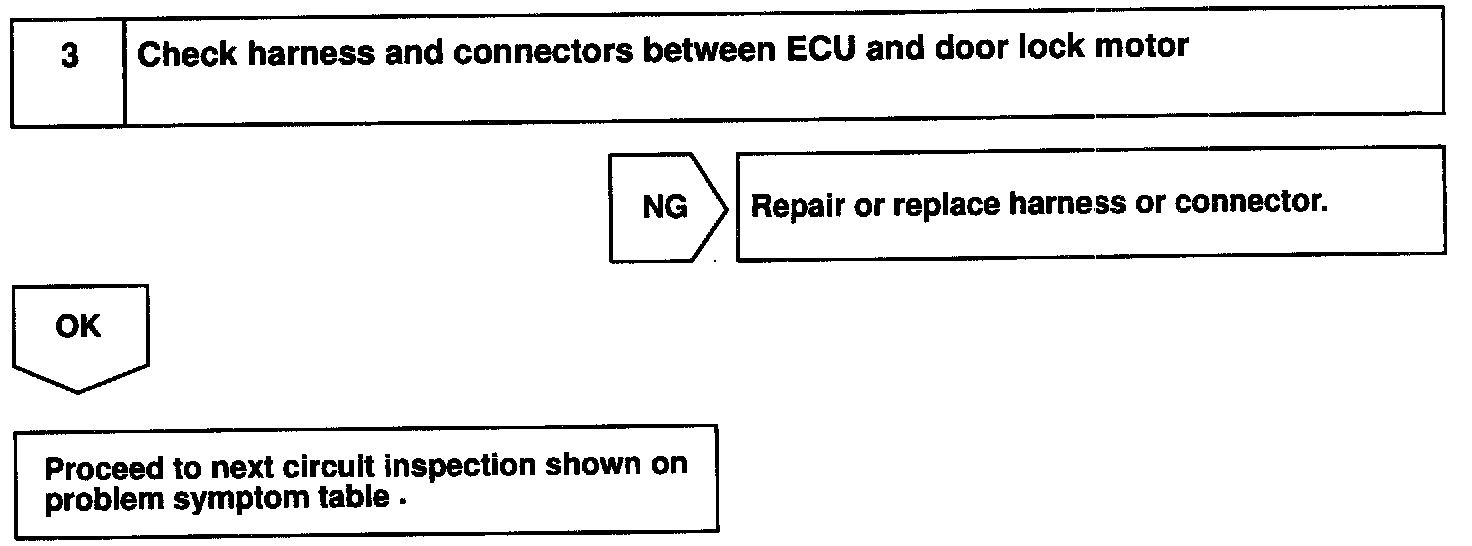

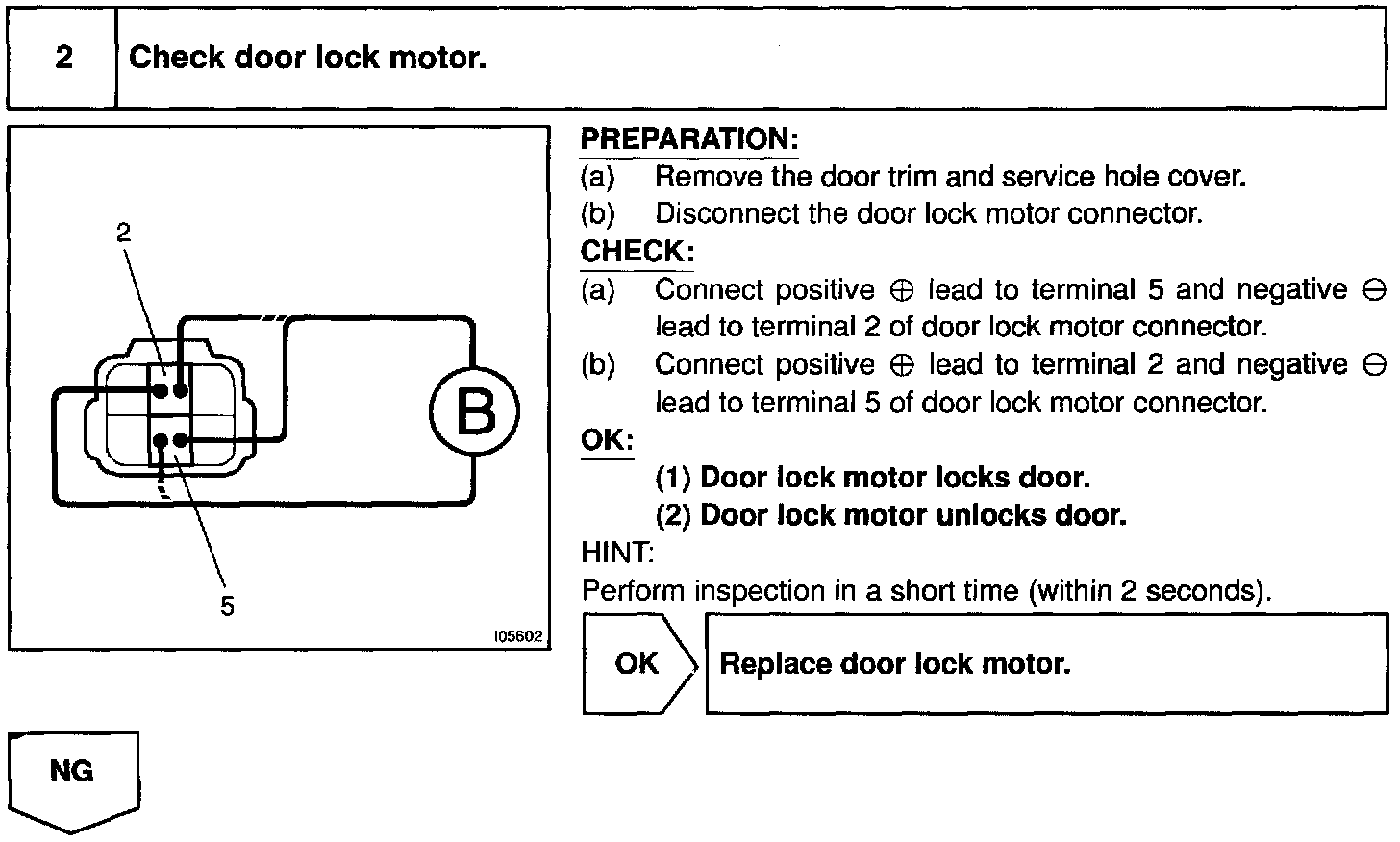

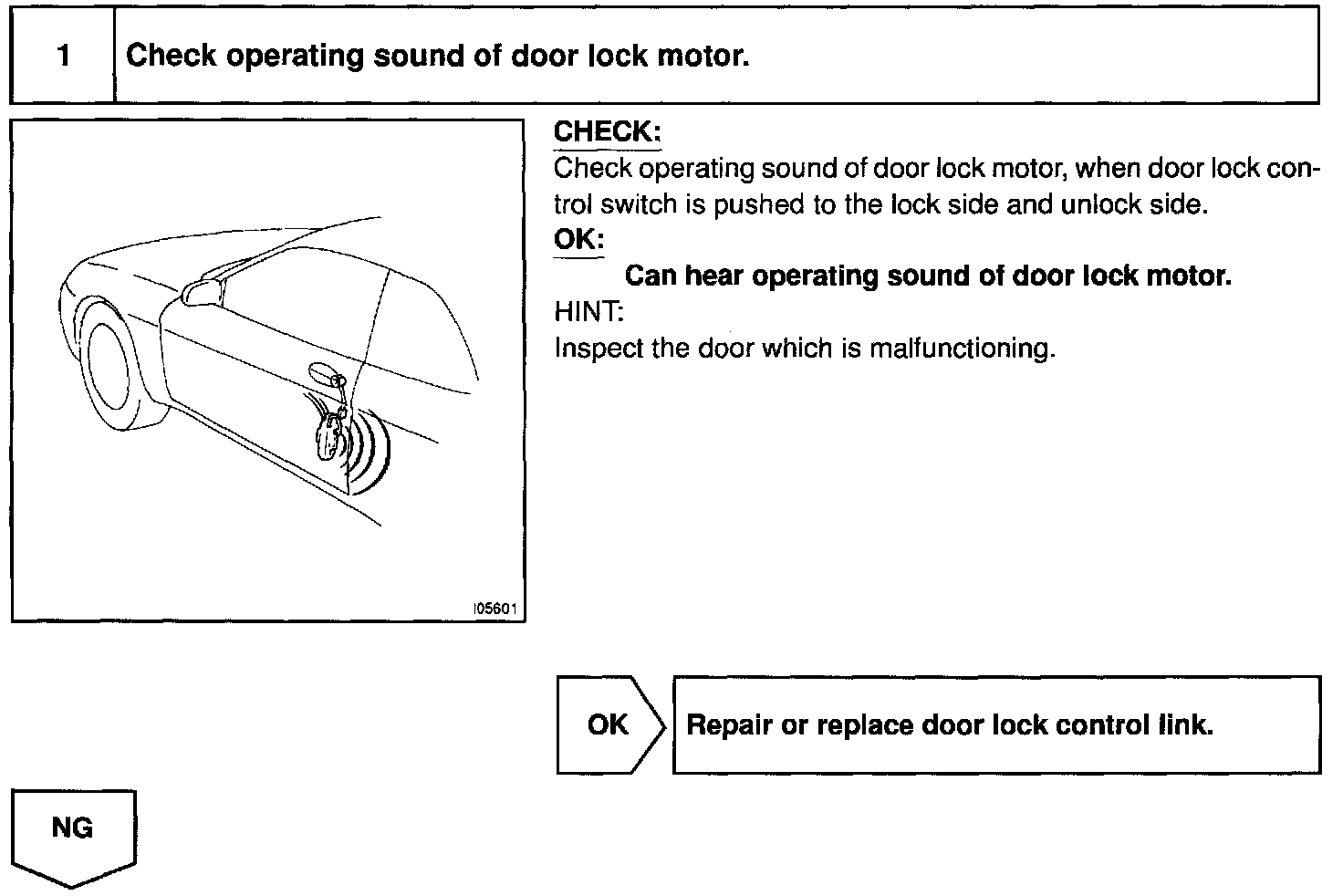

INSPECTION PROCEDURE
