Actuator Power Source Circuit


Actuator Power Source Circuit

CIRCUIT DESCRIPTION
This circuit provides power to drive the door lock motor and the luggage compartment door opener motor.

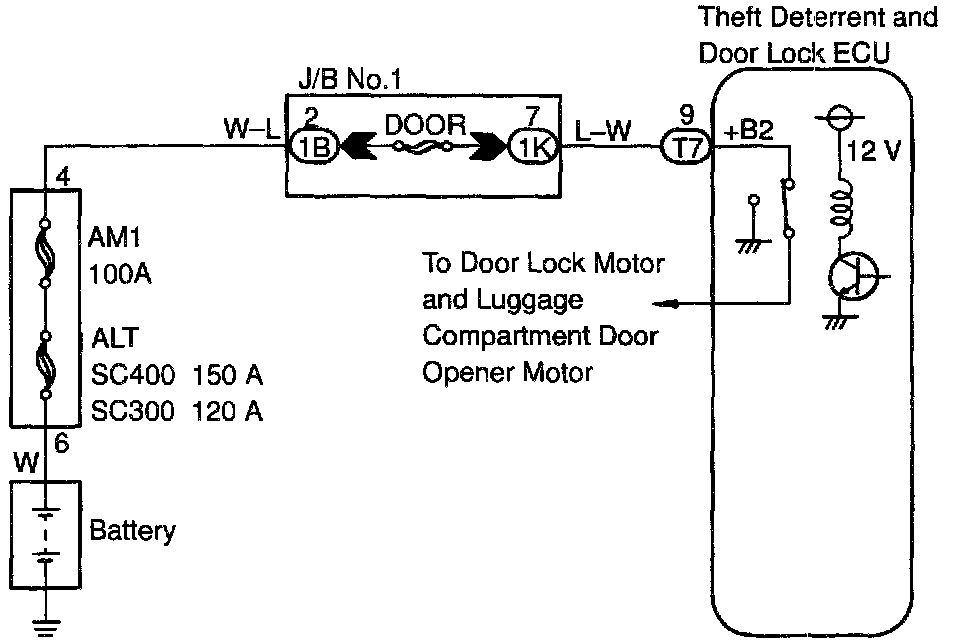

WIRING DIAGRAM

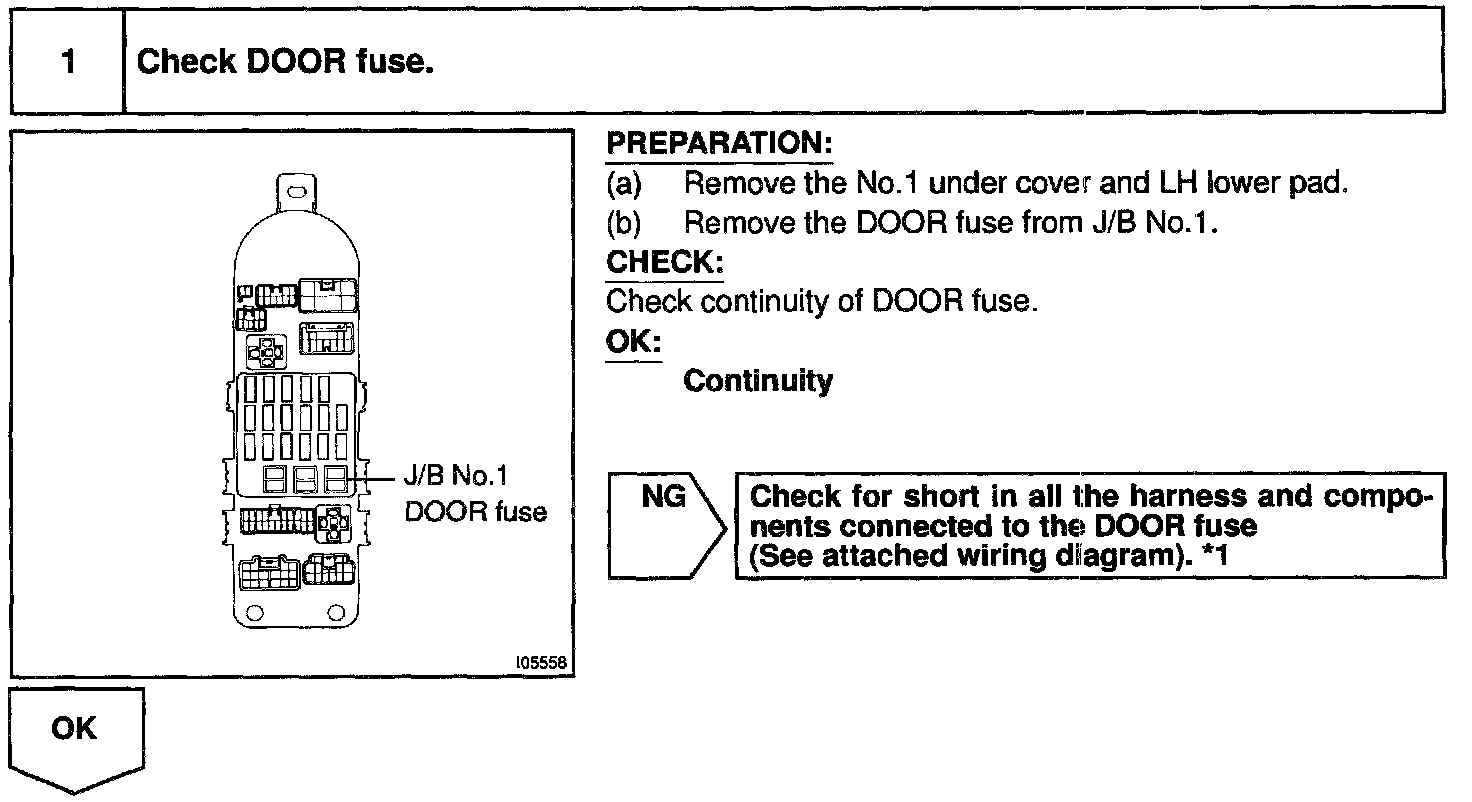

Step 1:

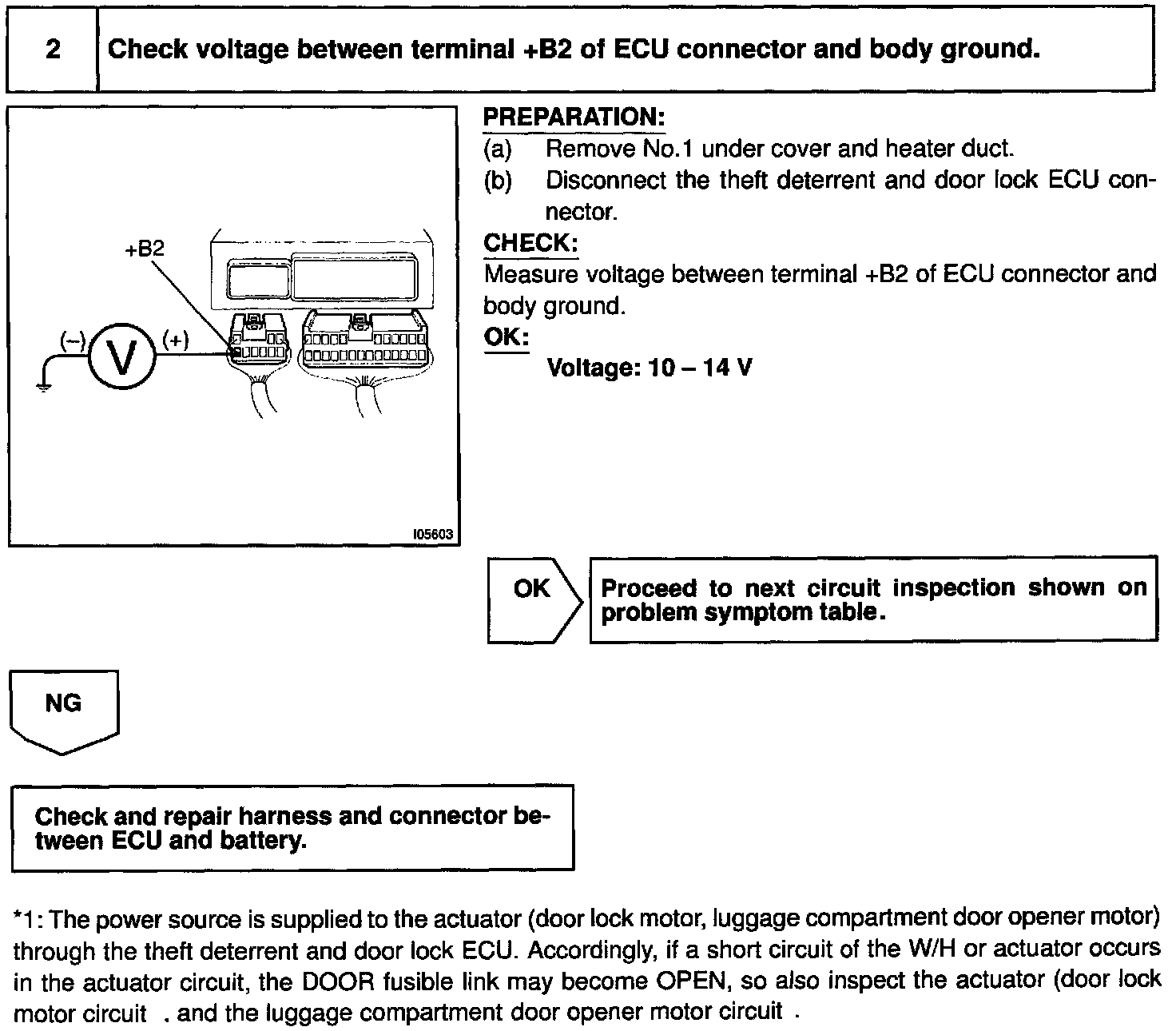

Step 2:





INSPECTION PROCEDURE
