Diagram Information and Instructions
>>
Theft Deterrent and Door Lock Control
>>
Relay Blocks
Relay Blocks
Relay Blocks:

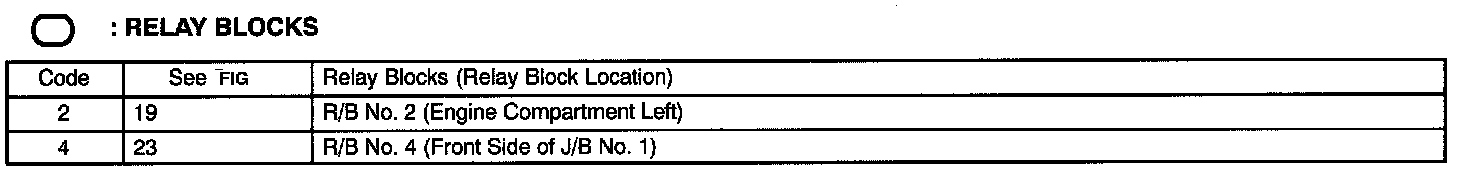

RELAY BLOCKS
R/B No.2 - Engine Compartment Left (Fig 19):
FIG 19

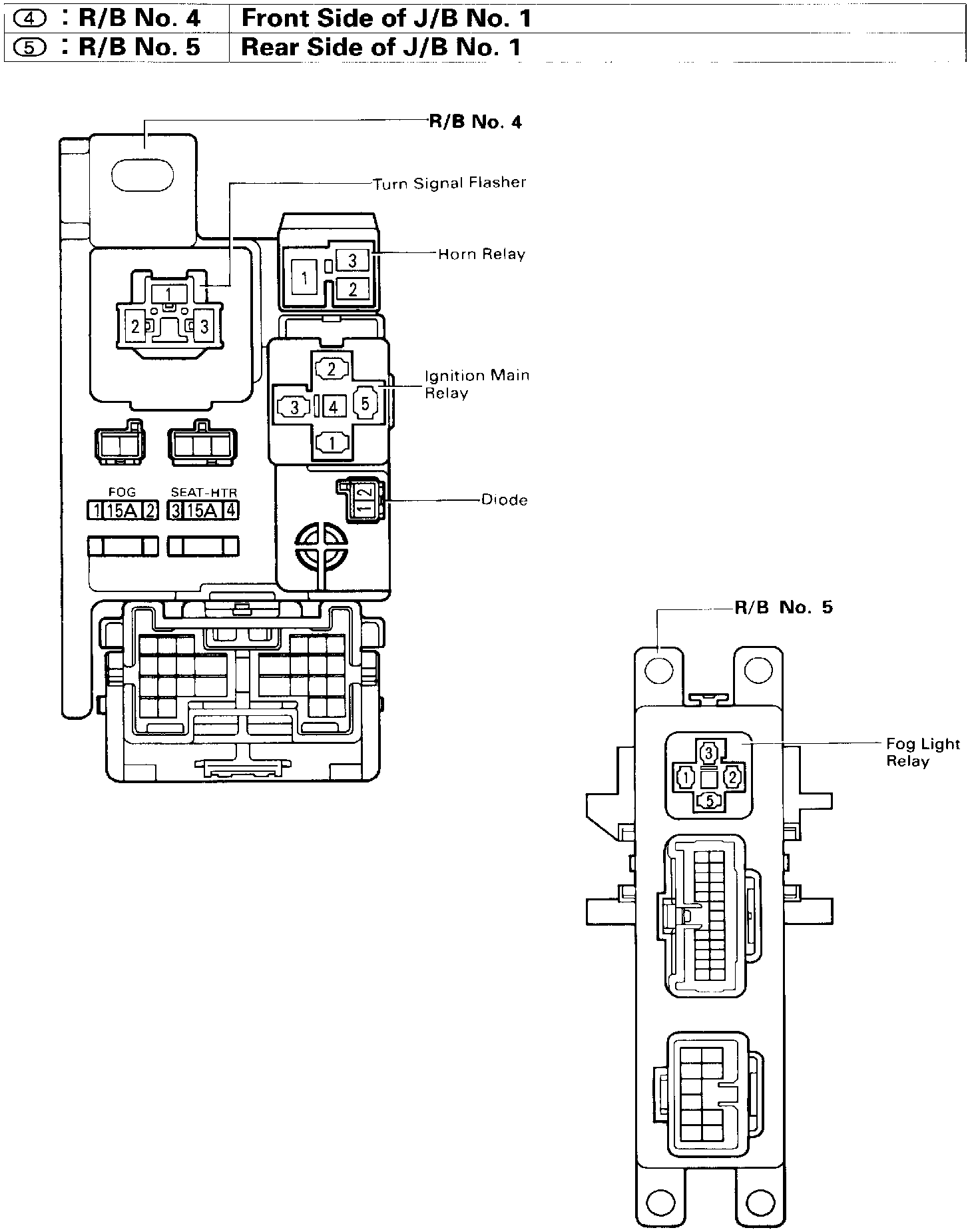

R/B No.4 - Front Side Of J/B No.1, R/B No.5 - Rear Side Of J/B No.1 (Fig 23):
FIG 23
