SC 400 V8-4.0L (1UZ-FE)
>>
Repair and Diagnosis
>>
Body and Frame
>>
Doors, Hood and Trunk
>>
Fuel Door
>>
Testing and Inspection
>>
Component Tests and General Diagnostics
Component Tests and General Diagnostics

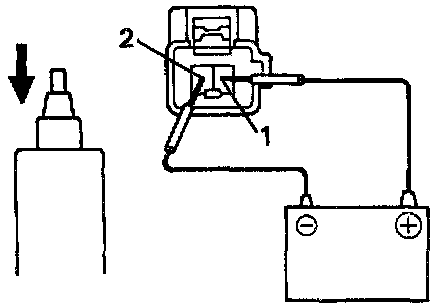

INSPECT FUEL LID OPENER SOLENOID OPERATION
a.
Apply battery positive voltage to the terminals.
b.
Check that the solenoid operates in the open direction.
If operation is not as specified, replace the solenoid.
