Home >> Lexus >> 1998 >> SC 400 V8-4.0L (1UZ-FE) >> Repair and Diagnosis >> Accessories and Optional Equipment >> Radio, Stereo, and Compact Disc >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Symptom Diagnostic Procedures >> Radio >> Flow Chart No. 2: Display Power Switch is "on", But No Sound

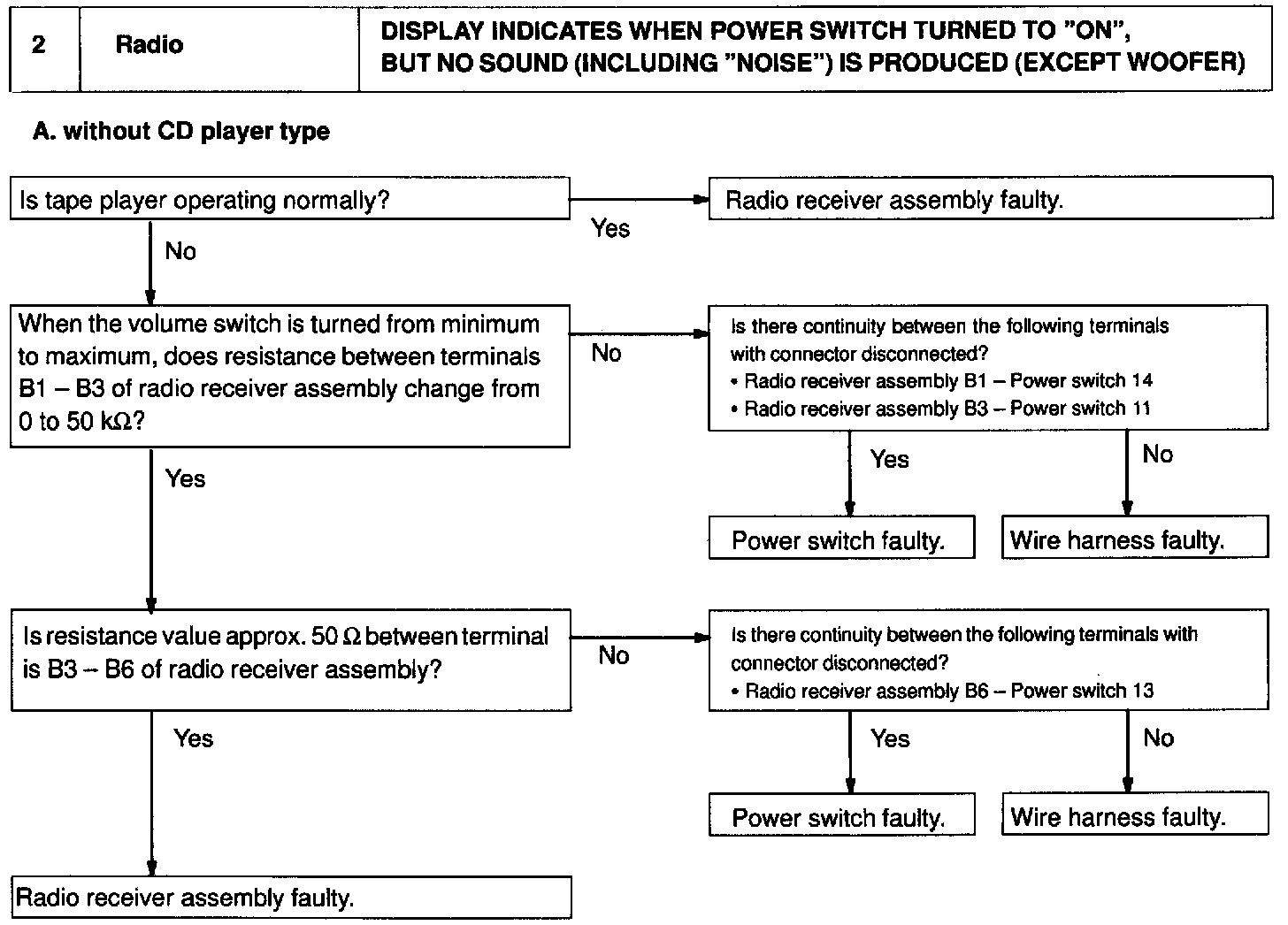

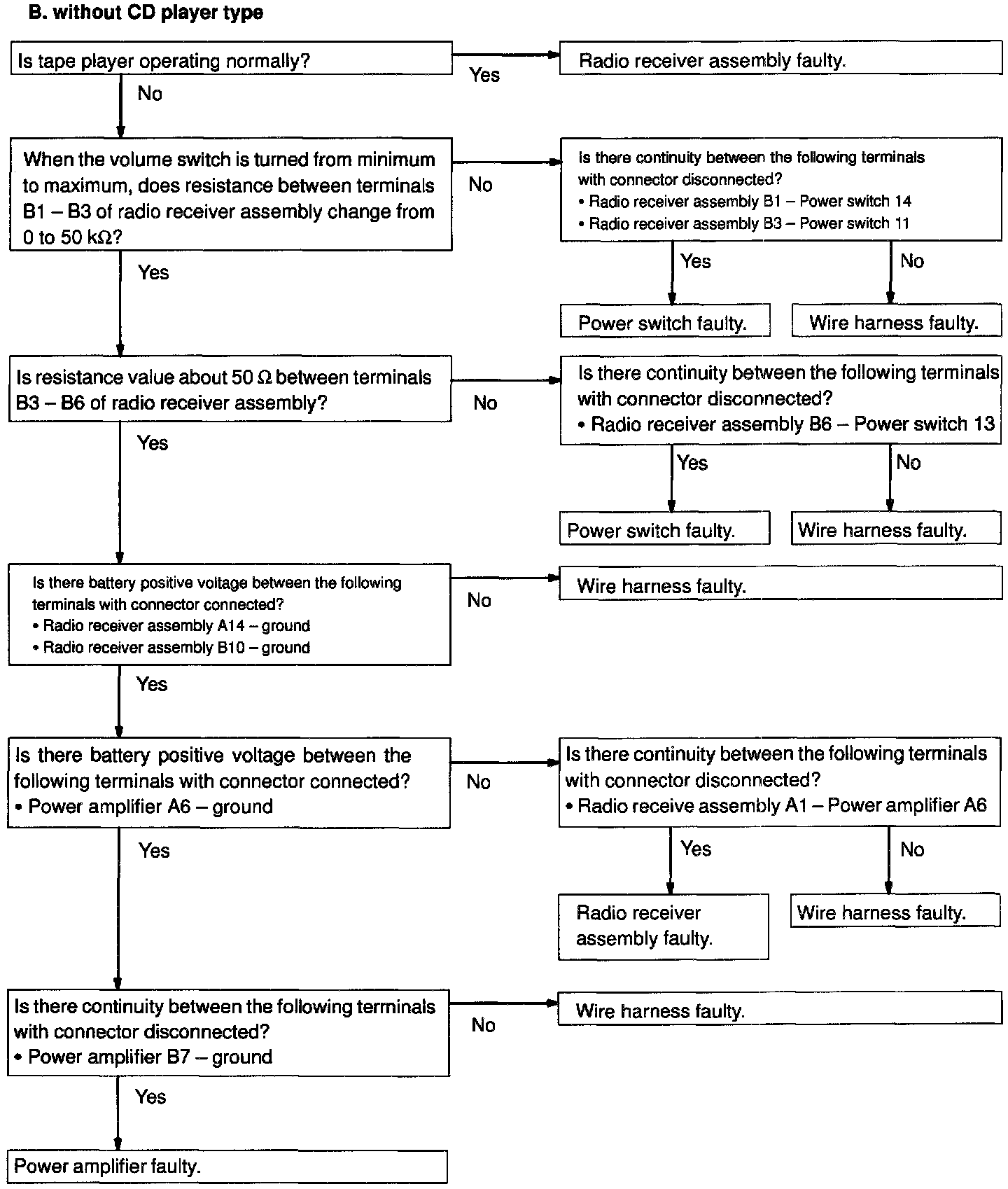

Flow Chart No. 2: Display Power Switch is "on", But No Sound
