SC 400 V8-4.0L (1UZ-FE)
>>
Repair and Diagnosis
>>
Accessories and Optional Equipment
>>
Radio, Stereo, and Compact Disc
>>
Testing and Inspection
>>
Symptom Related Diagnostic Procedures
>>
Symptom Diagnostic Procedures
>>
Radio
>>

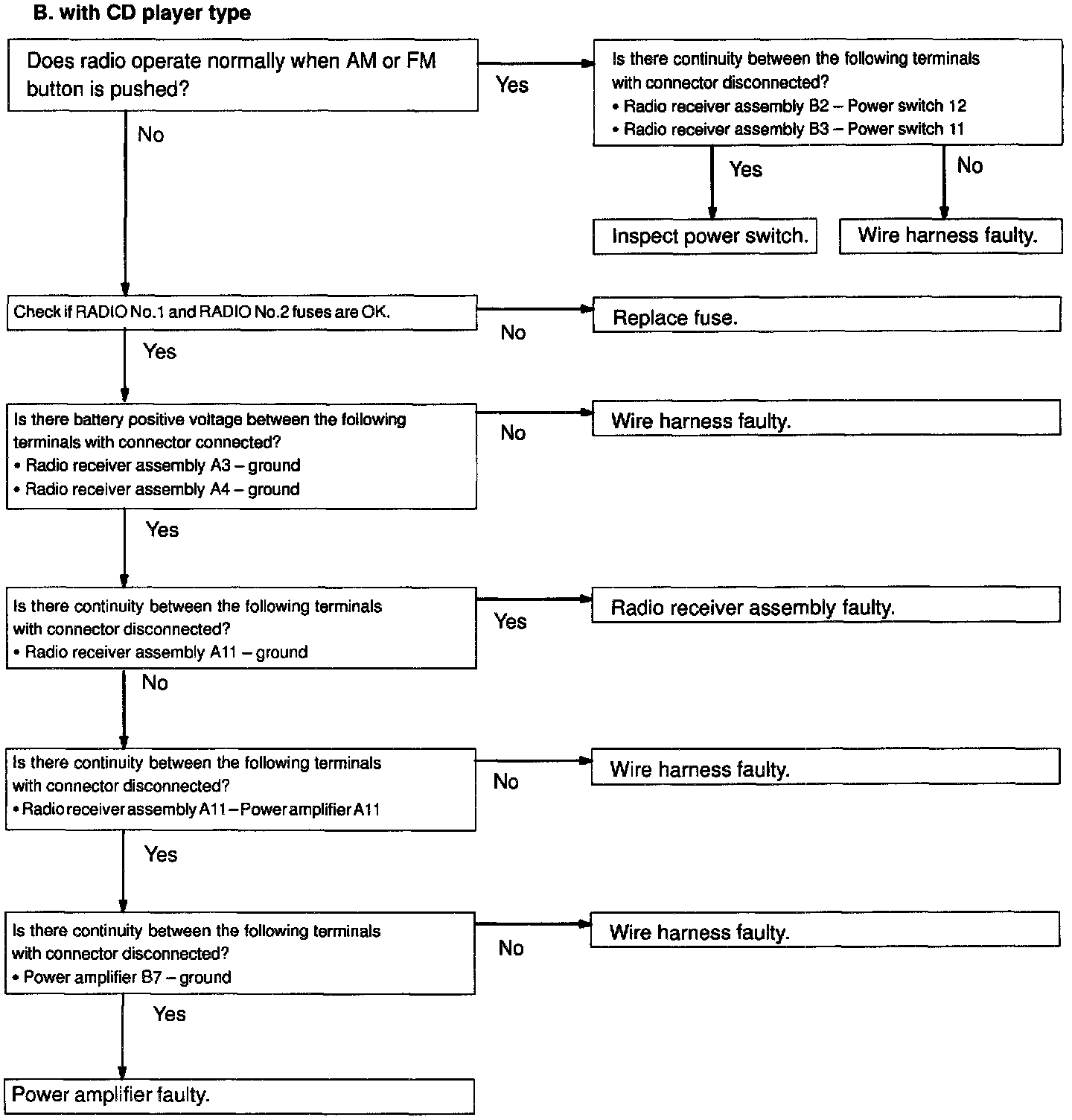

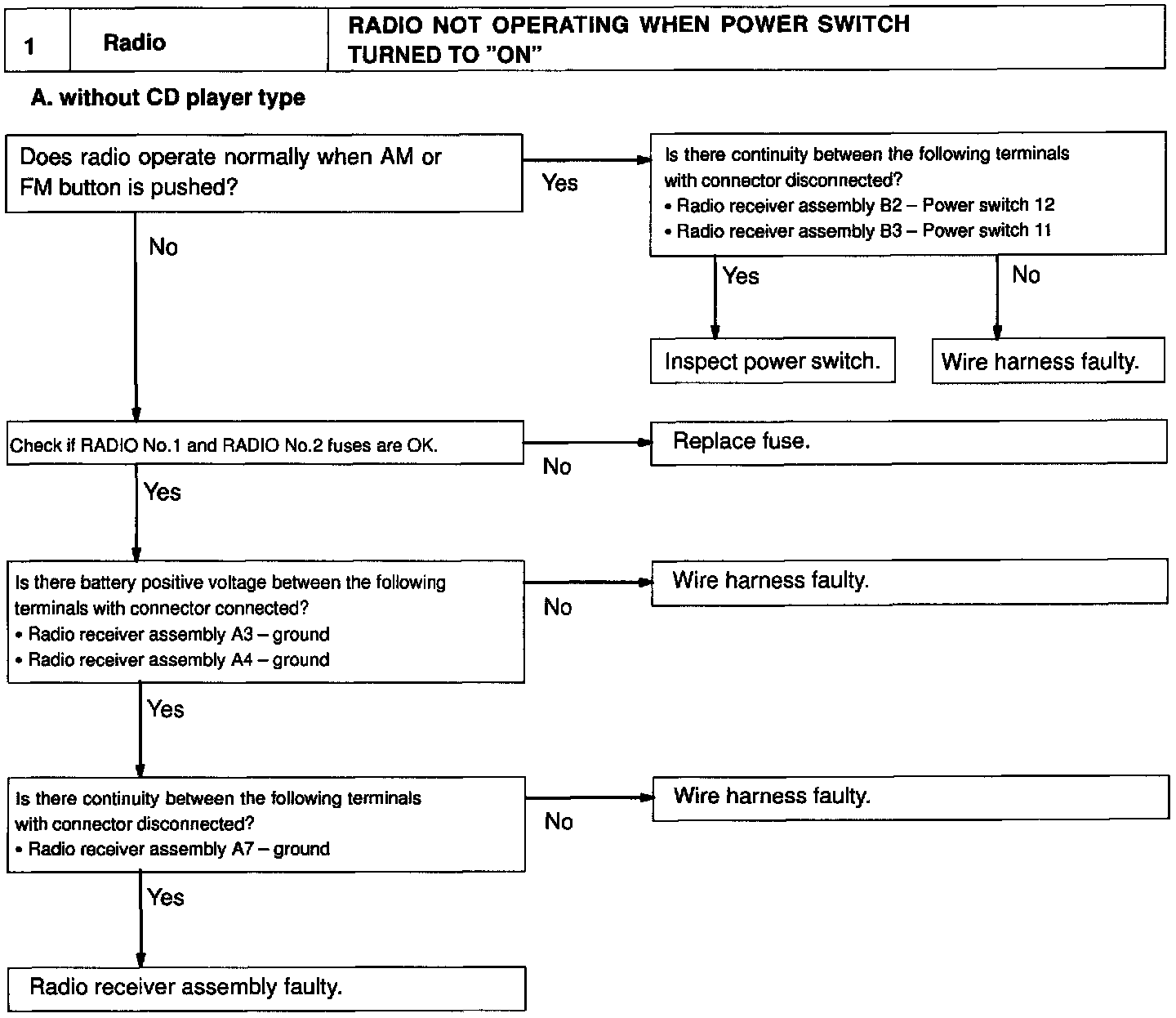

Flow Chart No. 1: Radio Not Operating When Power Switch "on"
Flow Chart No. 1: Radio Not Operating When Power Switch "on"
