Component Tests and General Diagnostics

Power Switch:

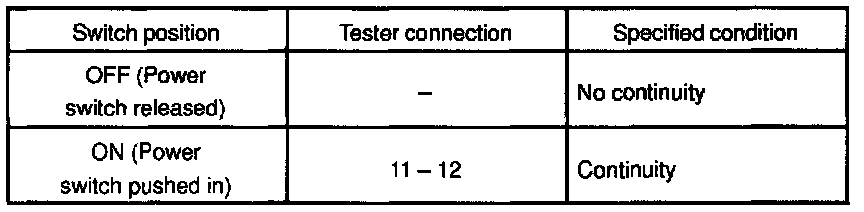

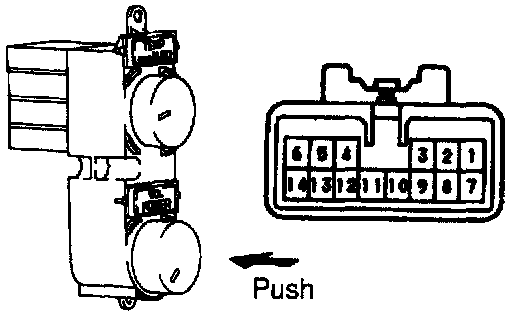

INSPECT POWER SWITCH CONTINUITY
If continuity is not as specified, replace the control panel.

INSPECT POWER SWITCH RESISTANCE

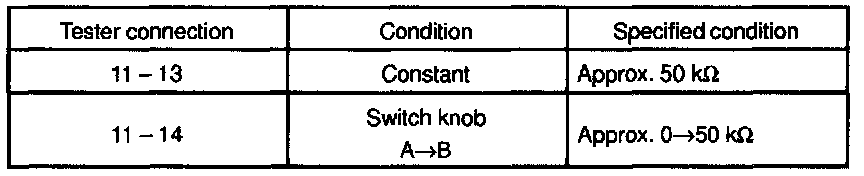

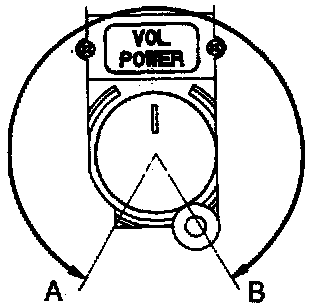

Inspect the resistance between terminals.
If resistance is not as specified, replace the control panel.

INSPECT POWER SWITCH ILLUMINATION

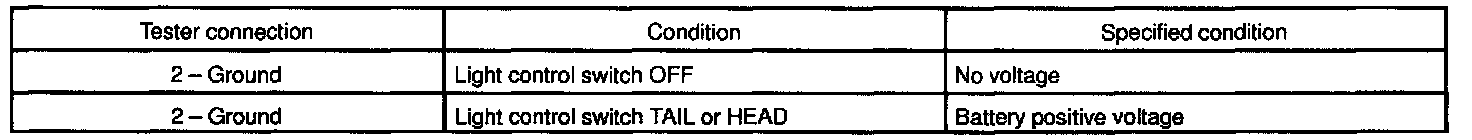

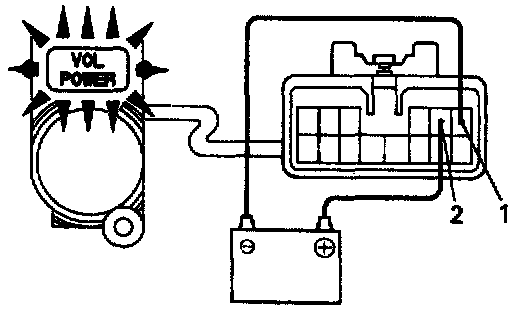

Connect the positive (+) lead from the battery to terminal 2 and the negative (-) lead to terminal 1, check that the illumination light lights up.
If the illumination light does not light up, replace the control panel.

INSPECT POWER SWITCH CIRCUIT

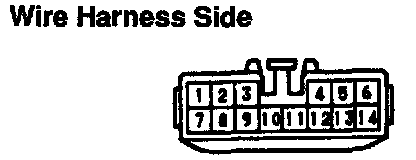

Disconnect the control panel connector and inspect the connector on wire harness side.
If circuit is not as specified, inspect the circuits connected to other parts.
