Radio/Stereo: Testing and Inspection

without CD player:

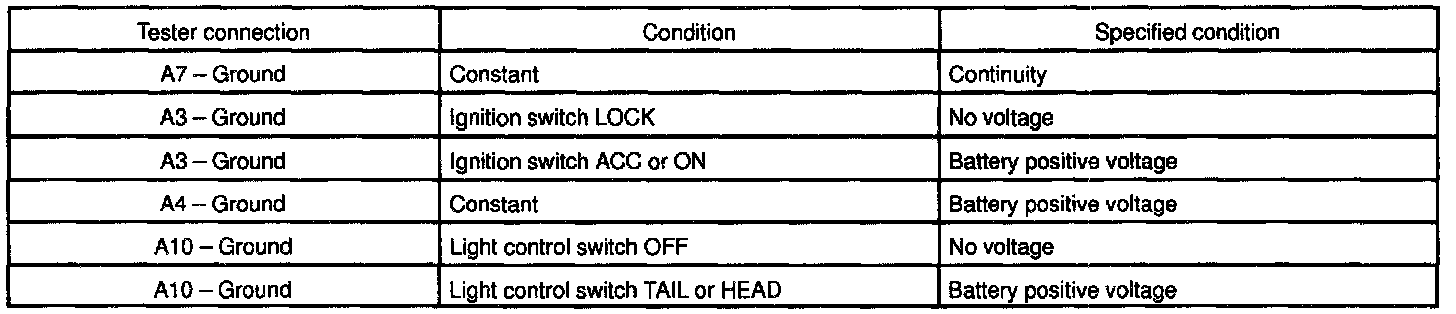

INSPECT RADIO RECEIVER ASSEMBLY CIRCUIT

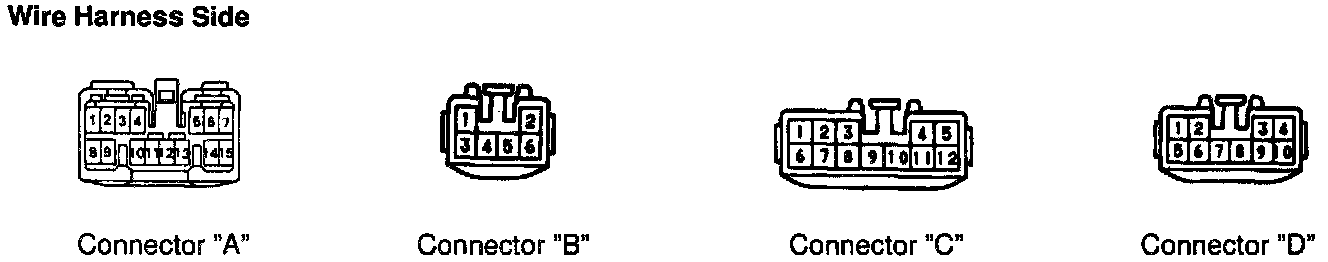

Disconnect the connectors from the radio receiver assembly Inspect the connector on the wire harness side.
If circuit is not as specified, inspect the circuits connected to other parts.

HINT: Check the wire harness between radio receiver assembly and the CD auto changer, between radio receiver assembly and power amplifier, in accordance with the wiring diagrams.


with CD player:

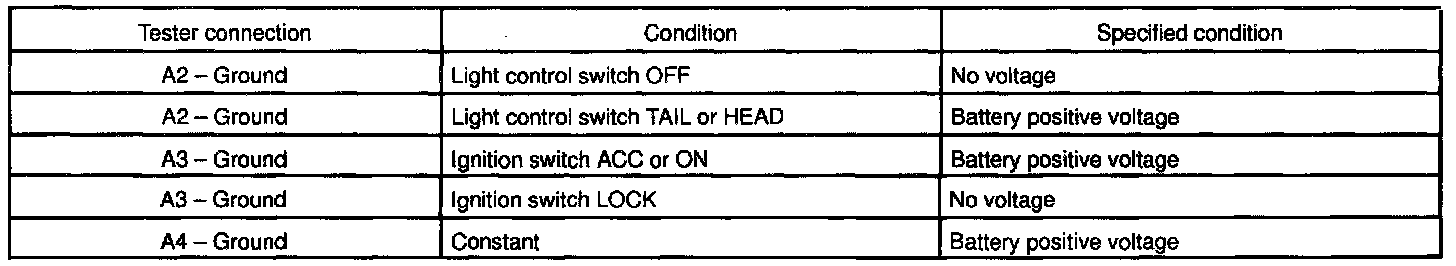

INSPECT RADIO RECEIVER ASSEMBLY CIRCUIT

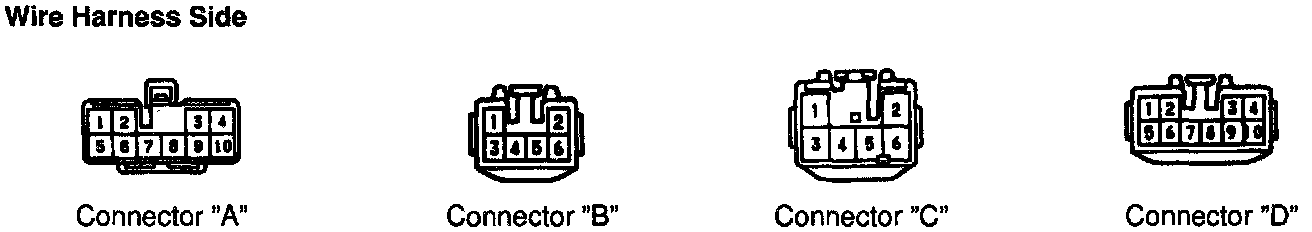

Disconnect the connectors from the radio receiver assembly. Inspect the connector on the wire harness side.
If circuit is not as specified, inspect the circuits connected to other parts.

HINT: Check the wire harness between radio receiver assembly and the CD auto changer, between radio receiver assembly and power amplifier, in accordance with the wiring diagrams.
