Theft Deterrent System

DIAGNOSIS BY SYMPTOM

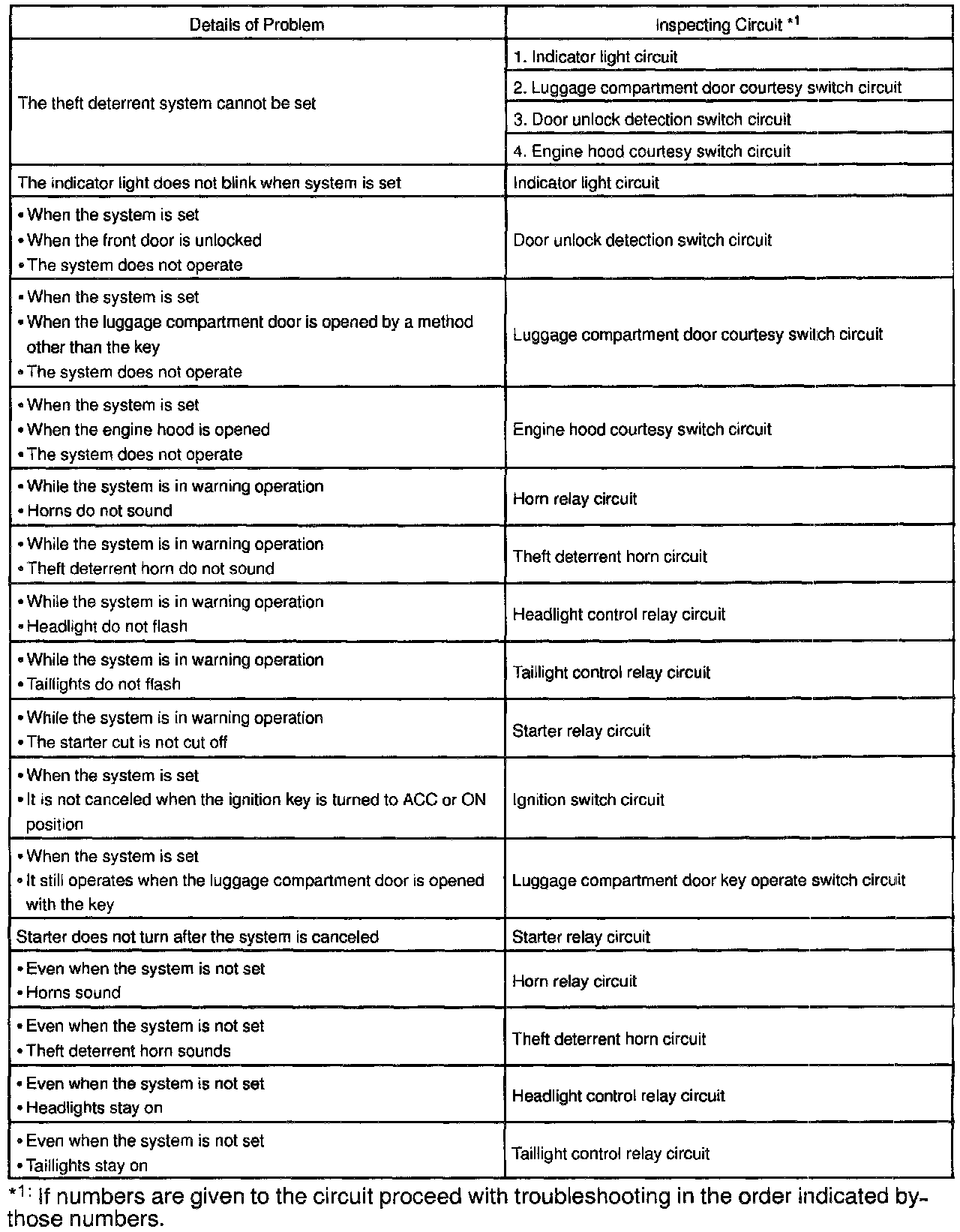

Proceed to the circuit shown in the matrix chart above for each malfunction symptom and troubleshoot for each circuit.

HINT : Troubleshooting of the theft deterrent system is based on the premise that the door lock control system is operating normally. Accordingly, before troubleshooting the theft deterrent system, first make certain that the door lock control system is operating normally.
