Luggage Compartment Door Courtesy Switch Circuit

Luggage Compartment Door Courtesy Switch Circuit

CIRCUIT DESCRIPTION
The luggage compartment door courtesy switch goes on when the luggage compartment door is opened and goes off when the luggage compartment door is closed.

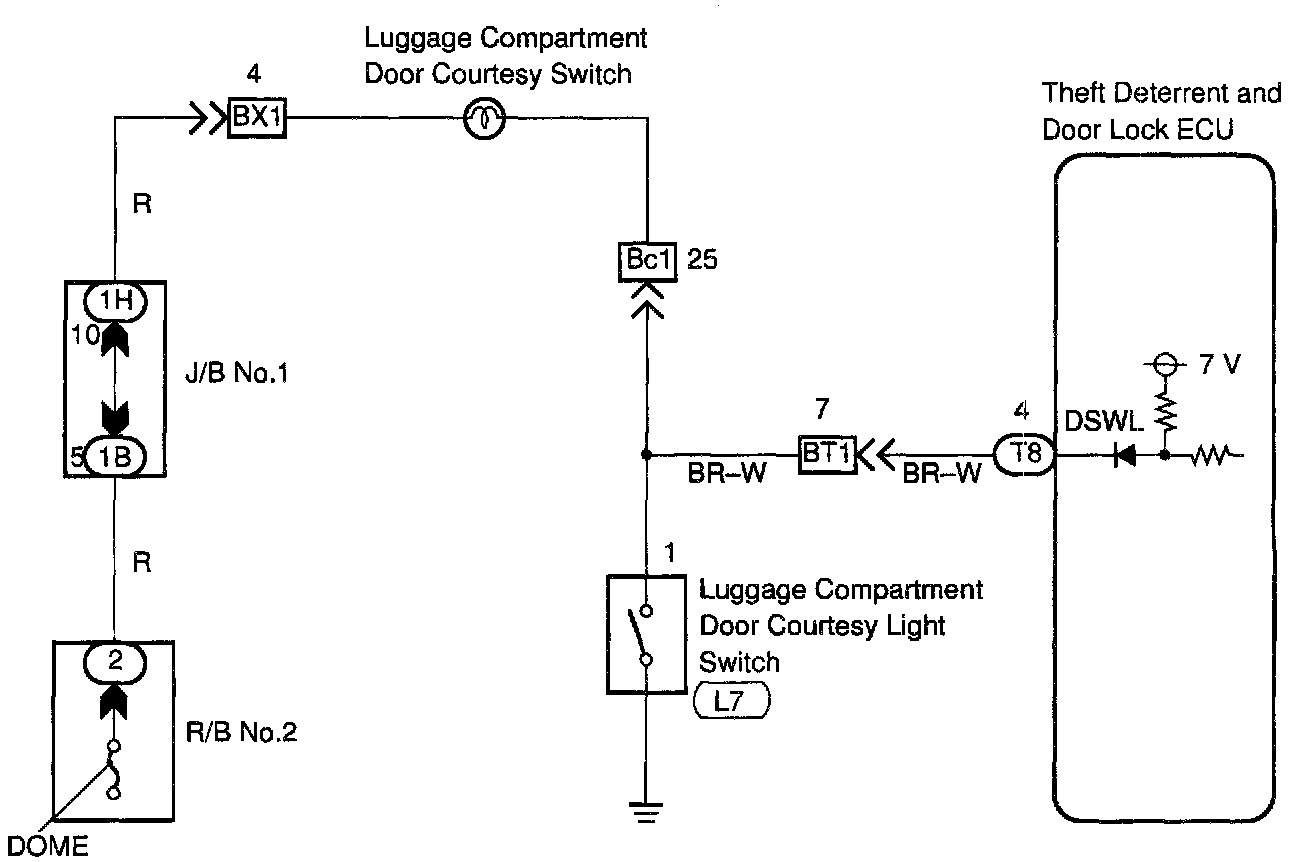

WIRING DIAGRAM

Step 1:

Step 2:

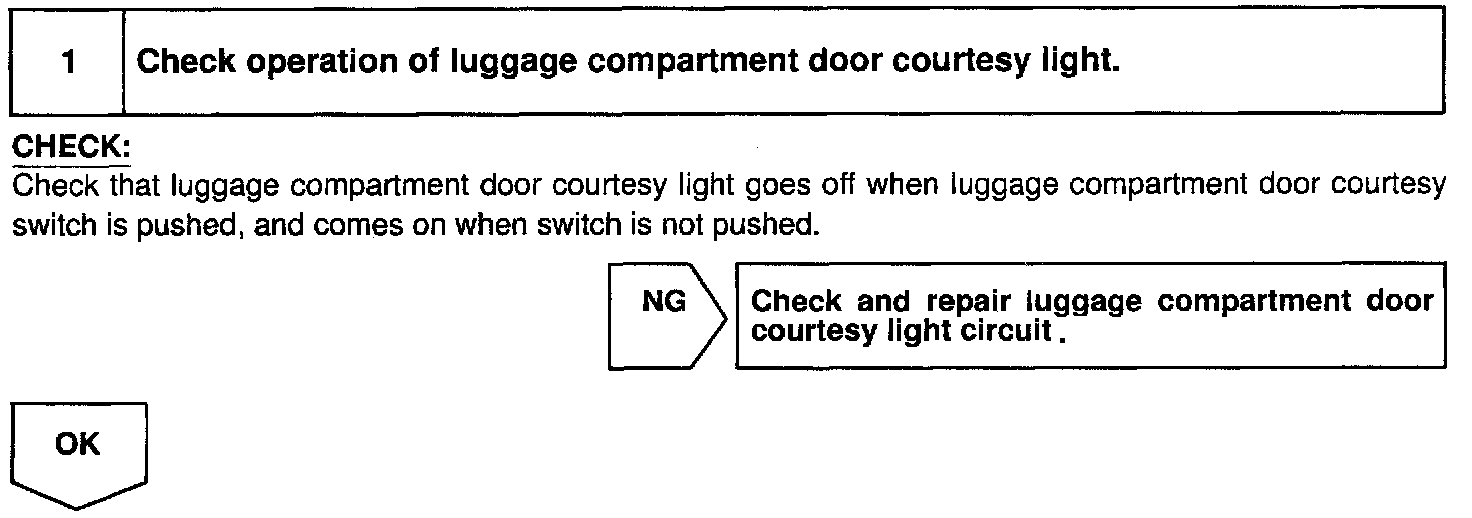

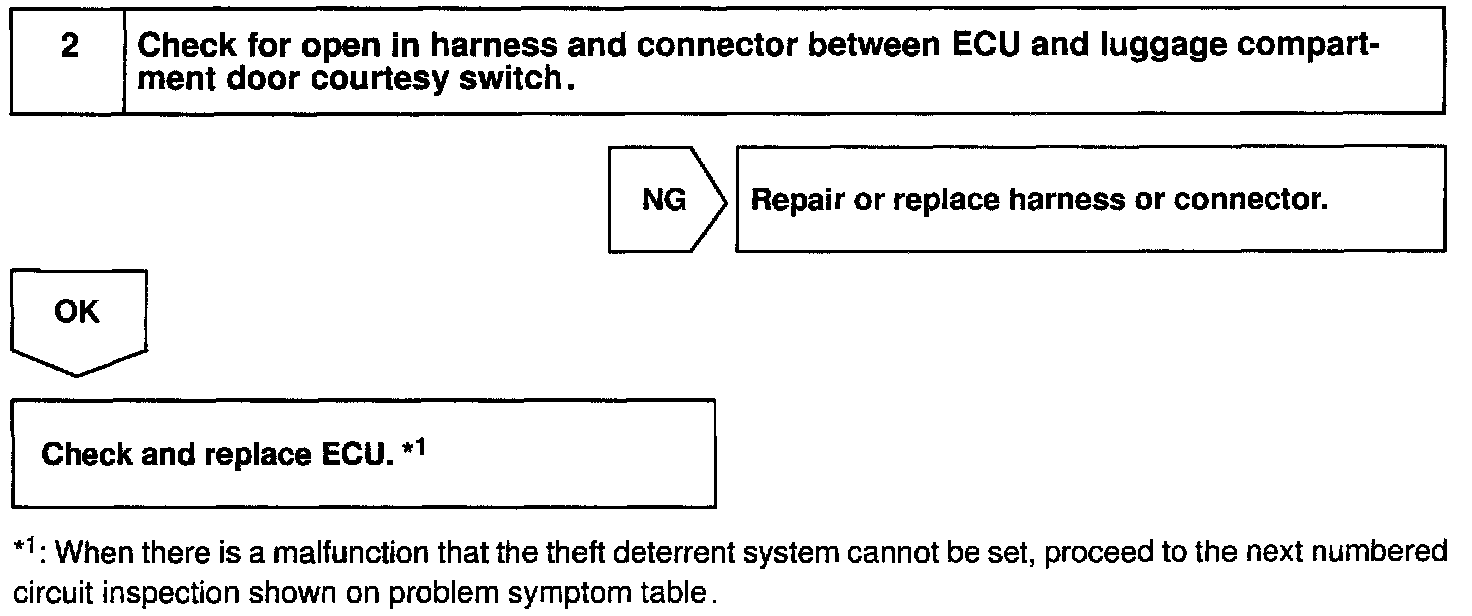

INSPECTION PROCEDURE
