Troubleshooting

DTC P0768 Shift Solenoid "D" Electrical Malfunction (Shift Solenoid Valve No.4)

CIRCUIT DESCRIPTION
Shift solenoid valve No.4 is controlled by ECM and it switches ON and OFF of the O/D direct switch.

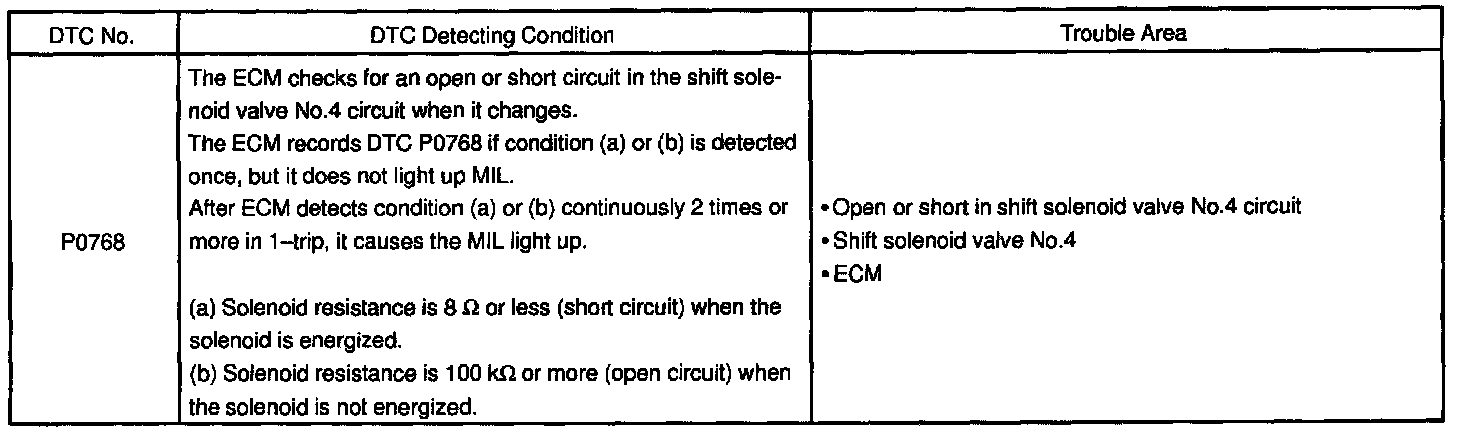

DETECTING CONDITIONS

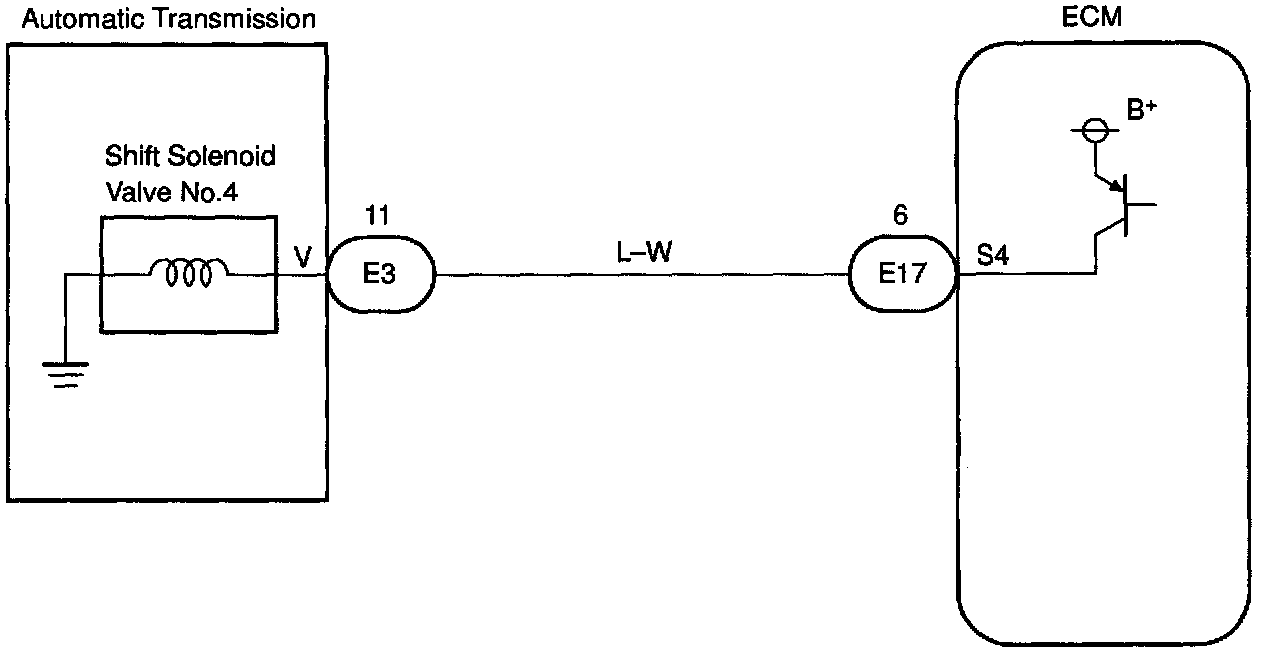

WIRING DIAGRAM

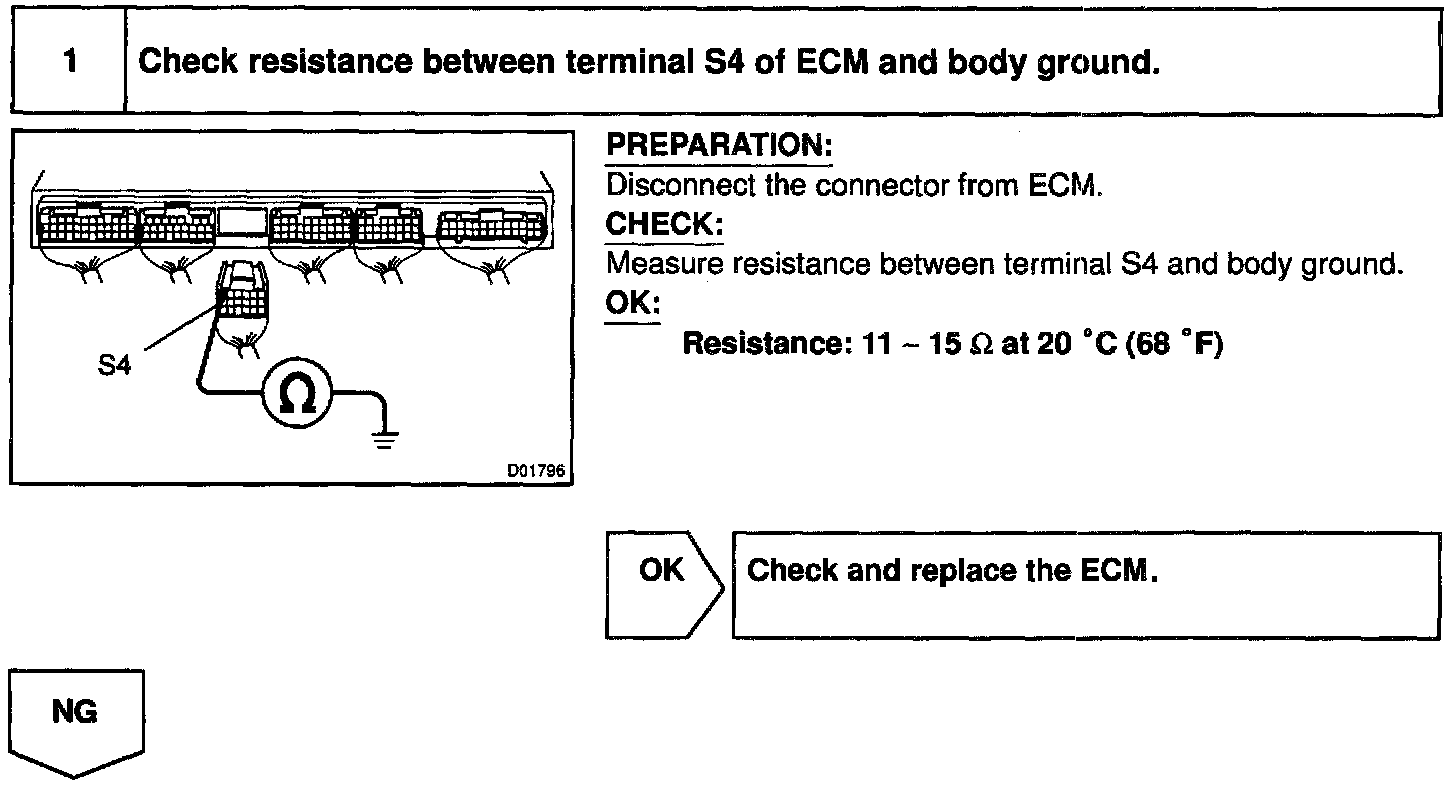

Step 1:

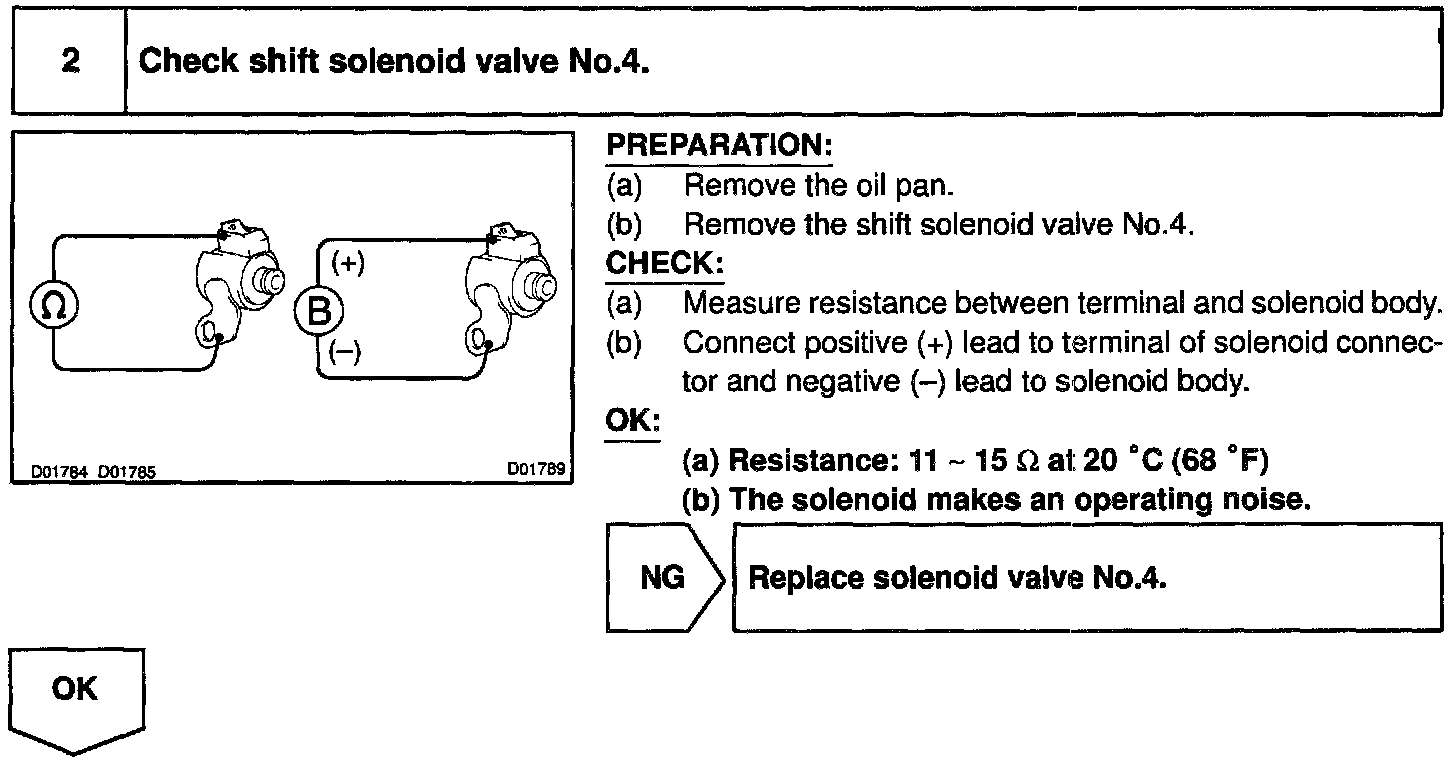

Step 2:

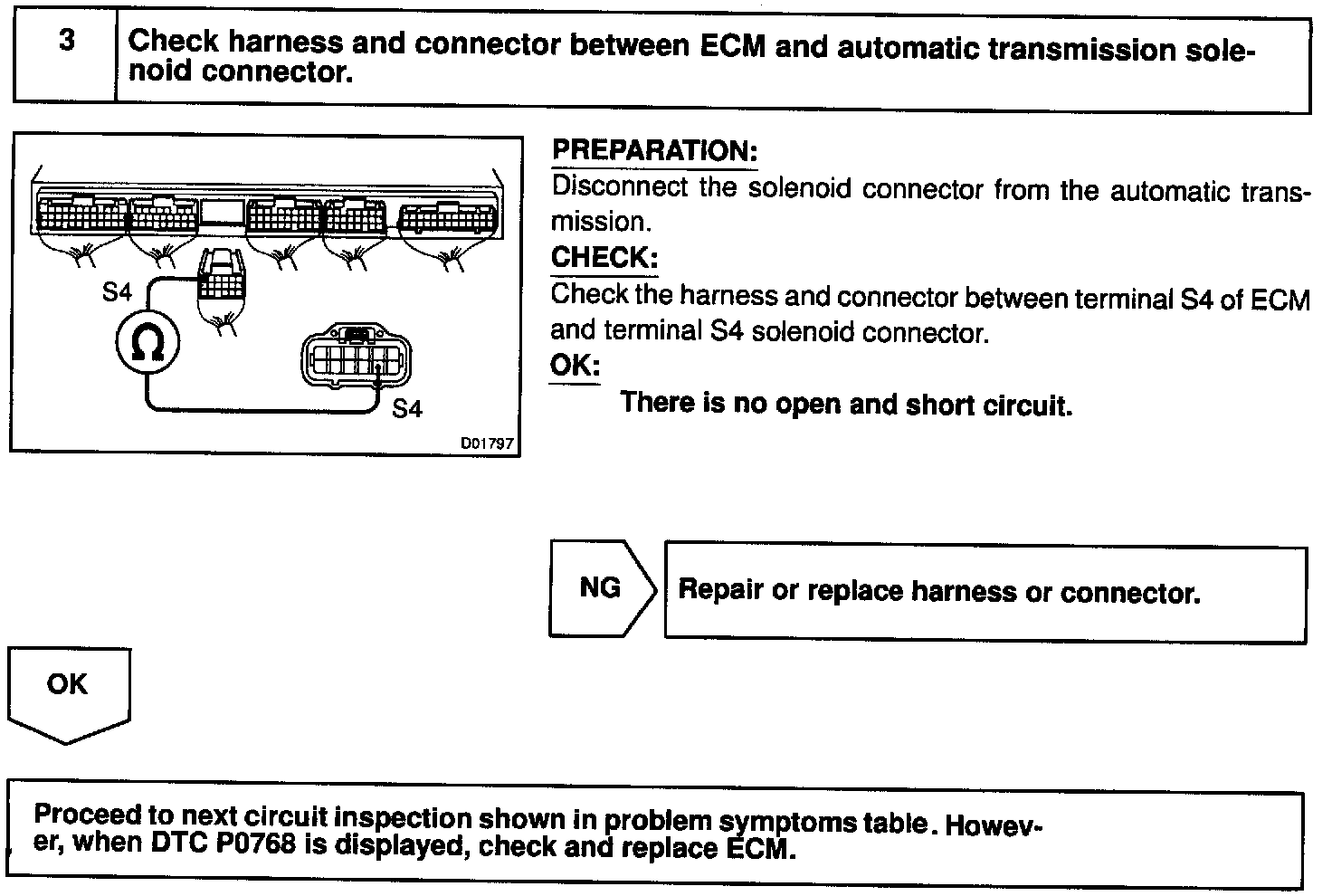

Step 3:

INSPECTION PROCEDURE
