Air Outlet Servomotor Circuit

DTC 43 Air Outlet Servomotor Circuit

CIRCUIT DESCRIPTION
This circuit turns the servo motor and changes each mode damper position by the signals from the A/C control assembly. When the AUTO switch is on, the A/C control assembly changes the mode automatically between (FACE), (BI-LEVEL) and (FOOT) according to the temperature setting.





DETECTING CONDITIONS





WIRING DIAGRAM

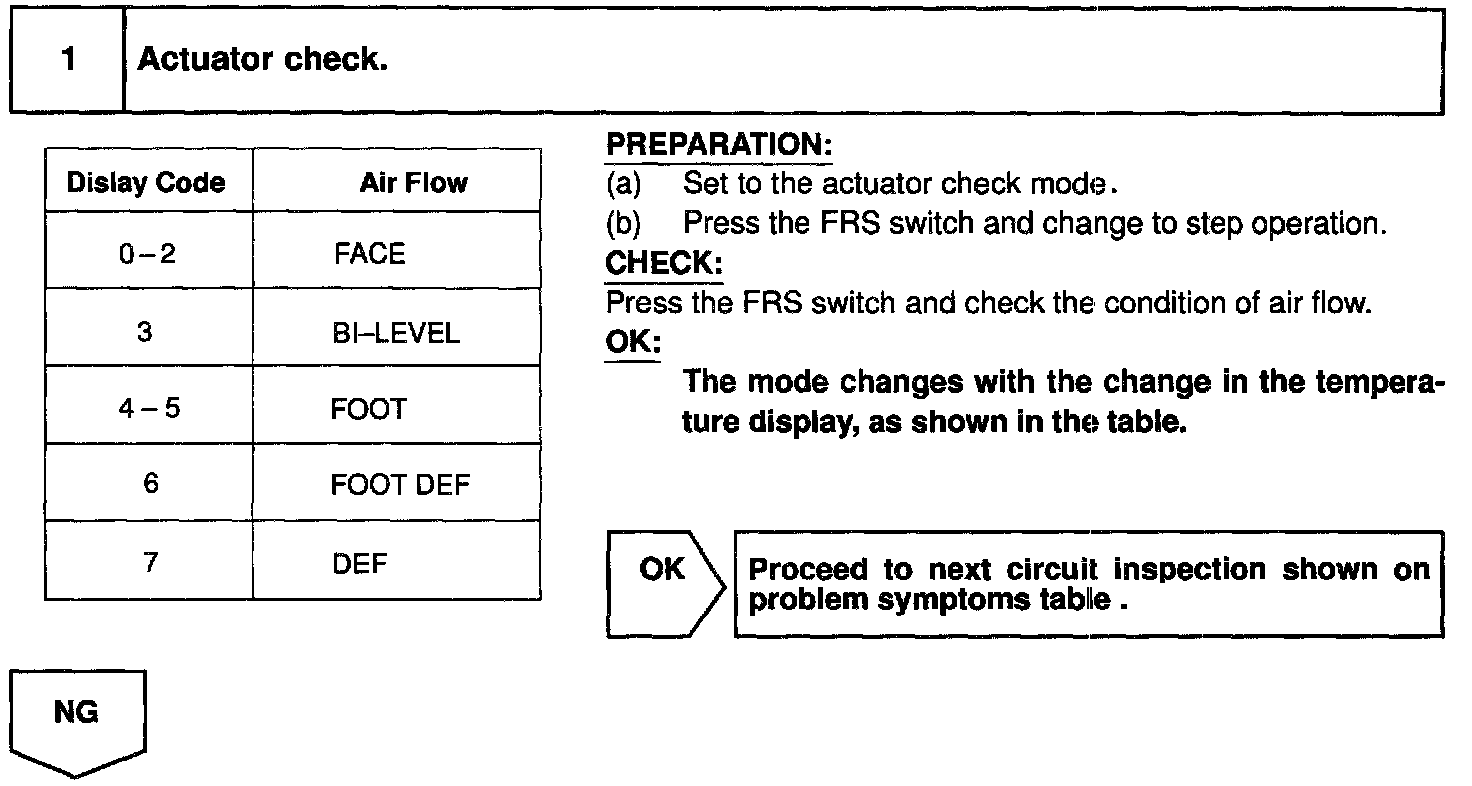

Step 1:

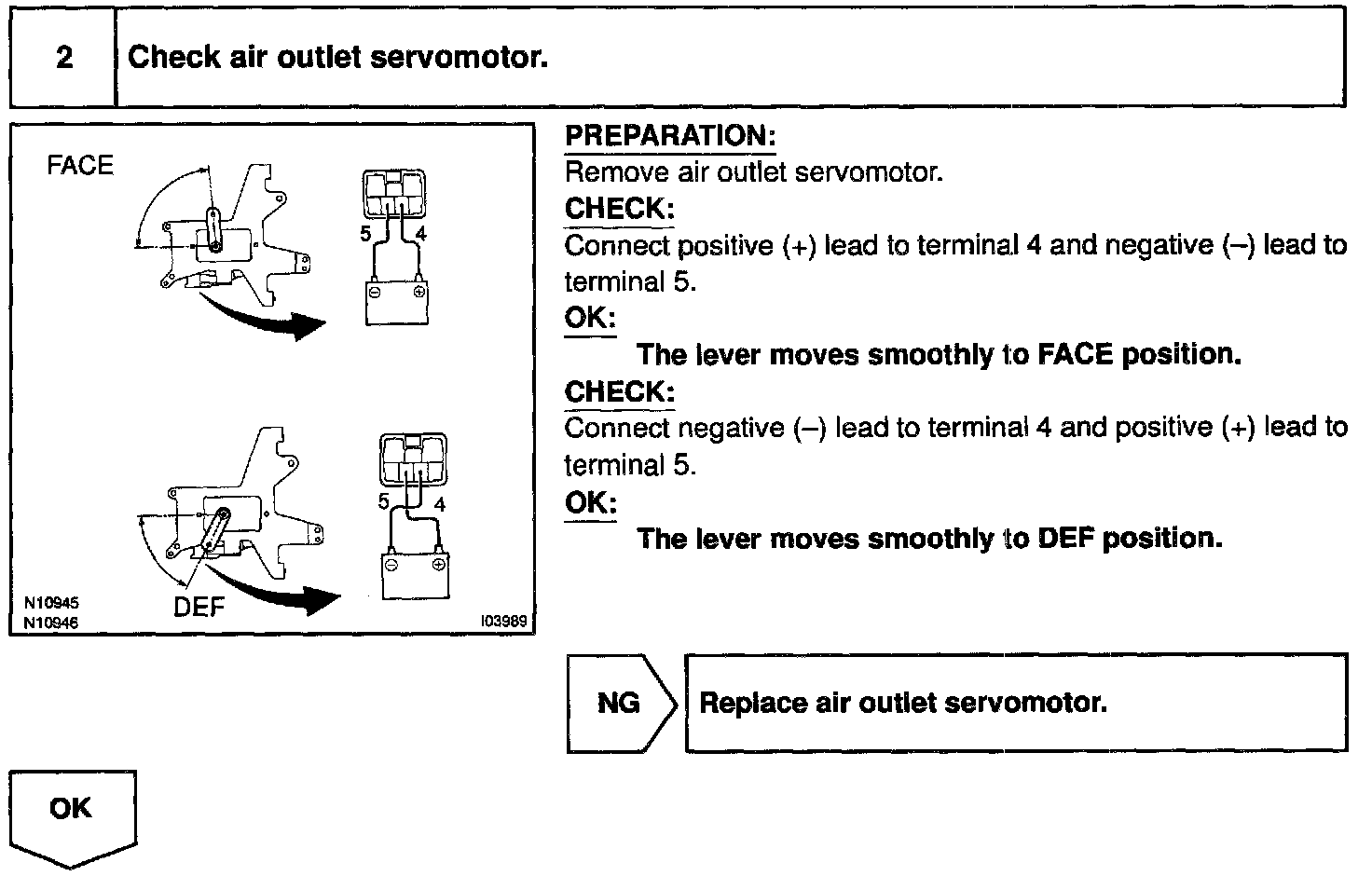

Step 2:

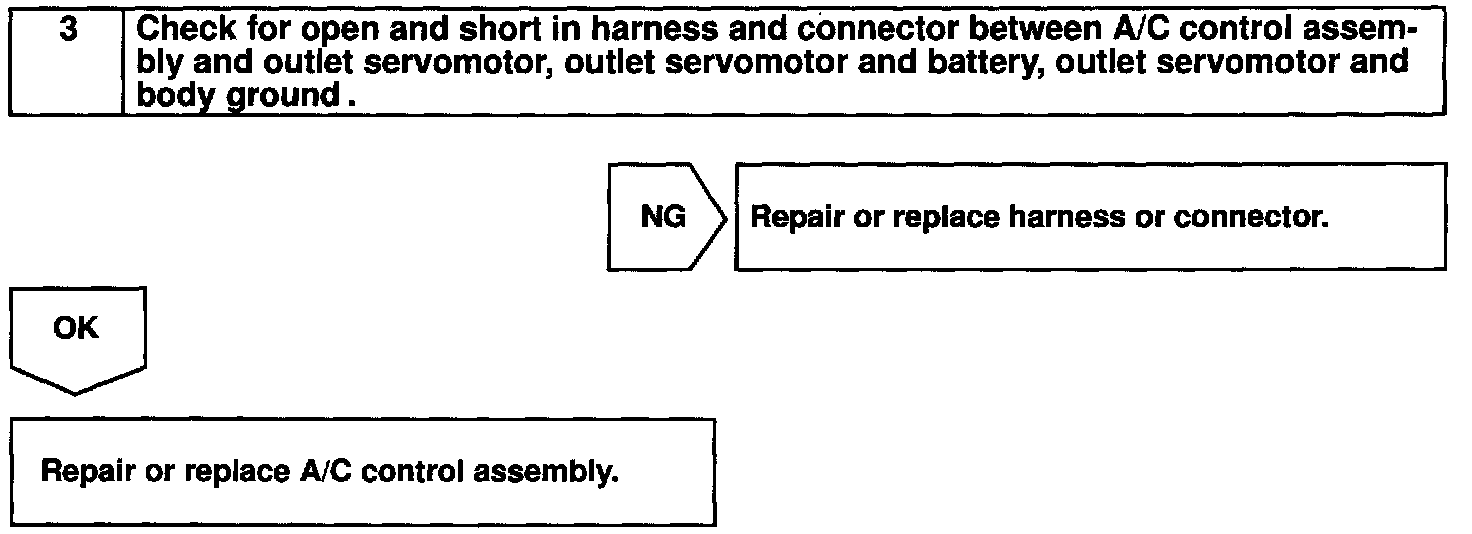

Step 3:

INSPECTION PROCEDURE
