Air Outlet Damper Position Sensor Circuit

DTC 43 Air Outlet Damper Position Sensor Circuit





CIRCUIT DESCRIPTION
This sensor detects the position of the air outlet damper and sends the appropriate signals to the A/C control assembly. The position sensor is built into the air outlet servomotor assembly.

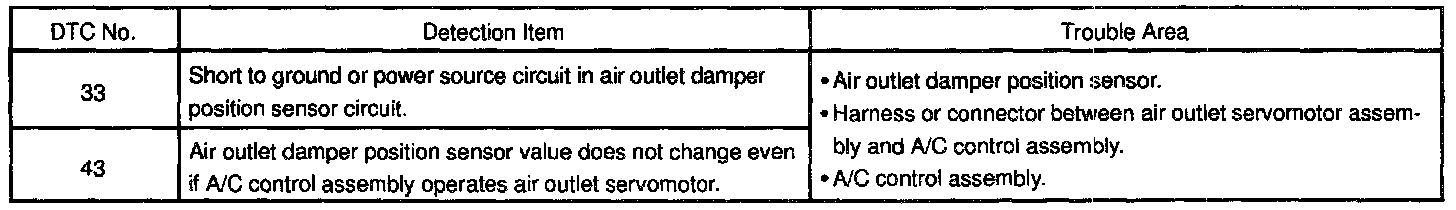

DETECTING CONDITIONS

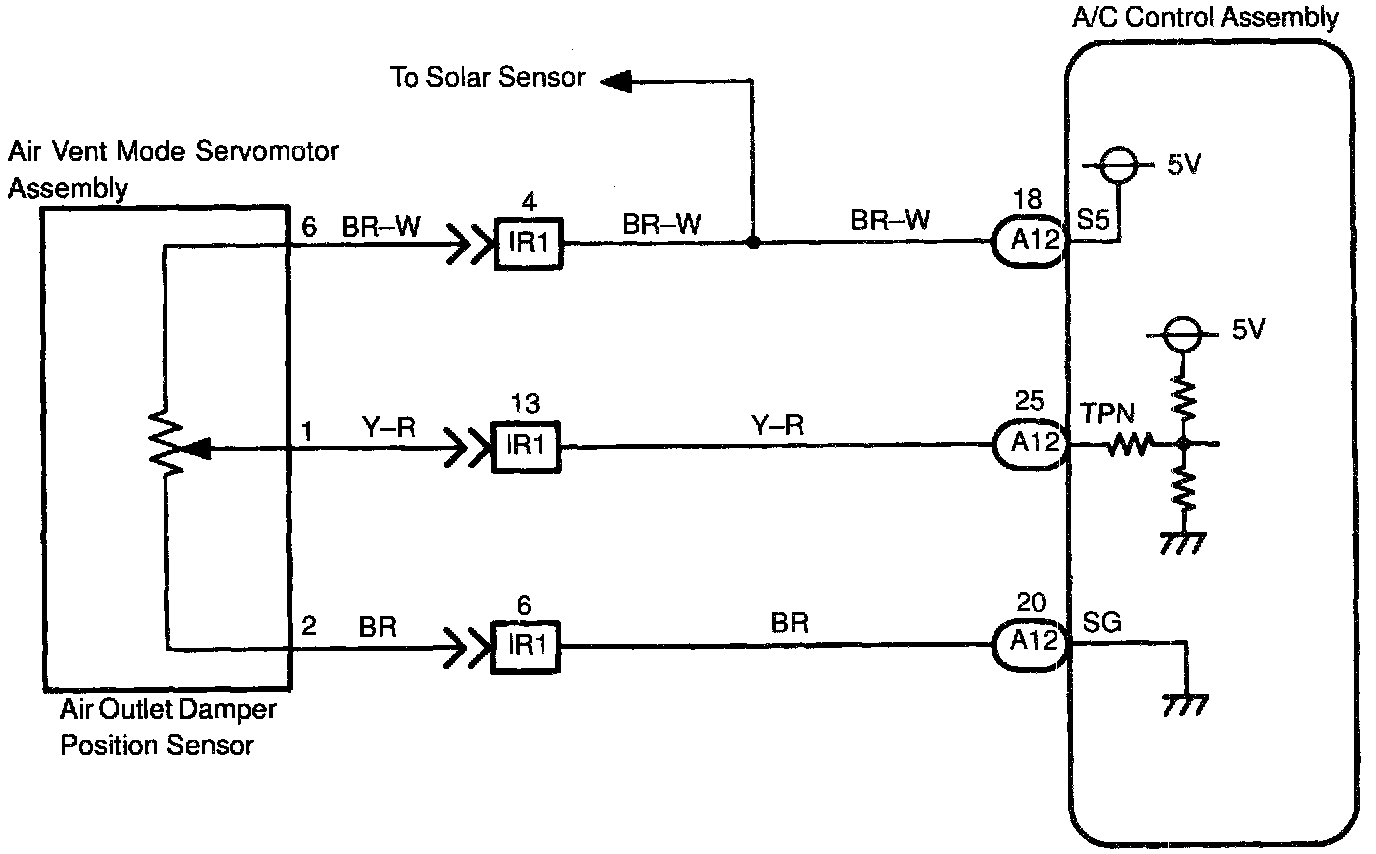

WIRING DIAGRAM

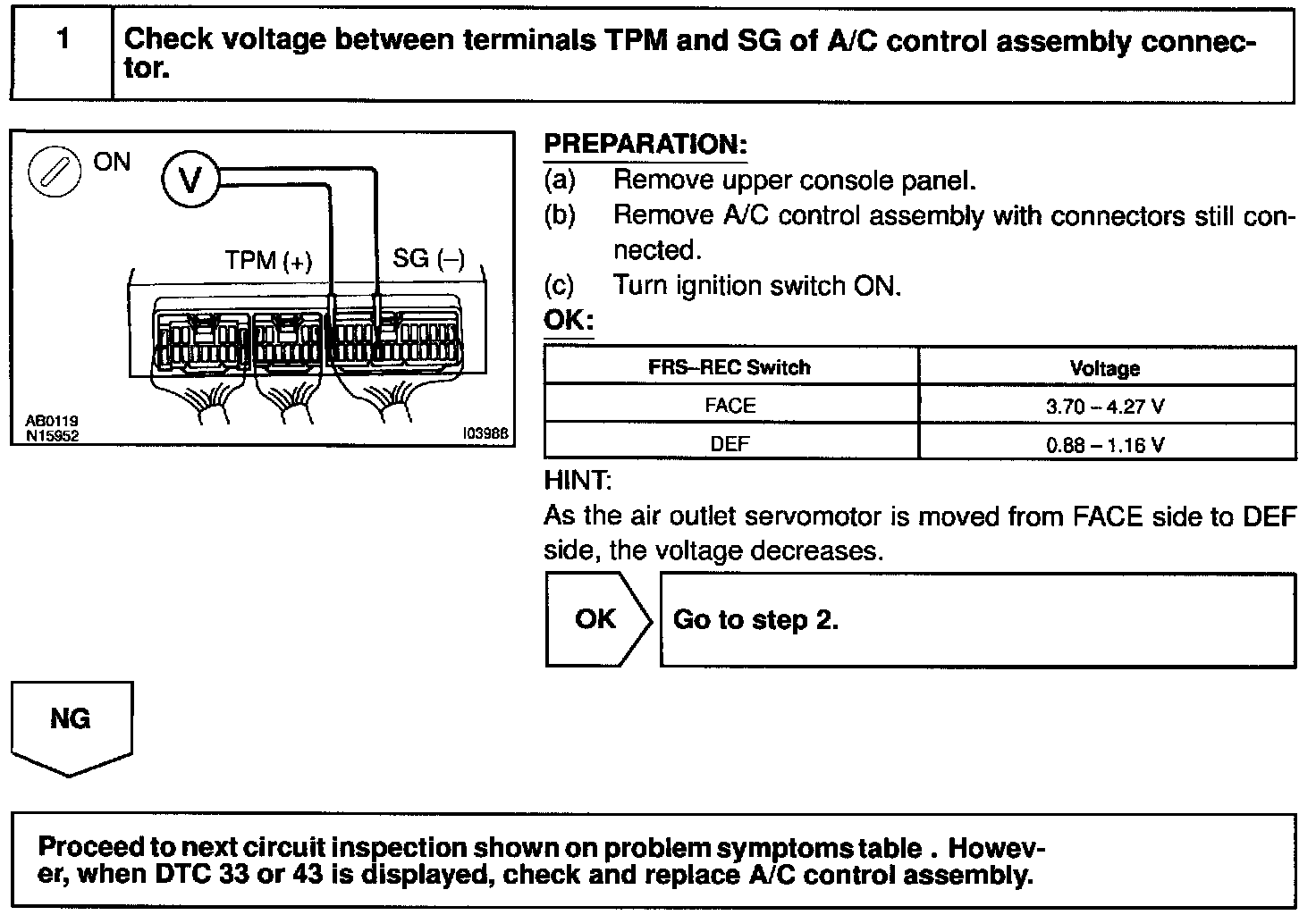

Step 1:

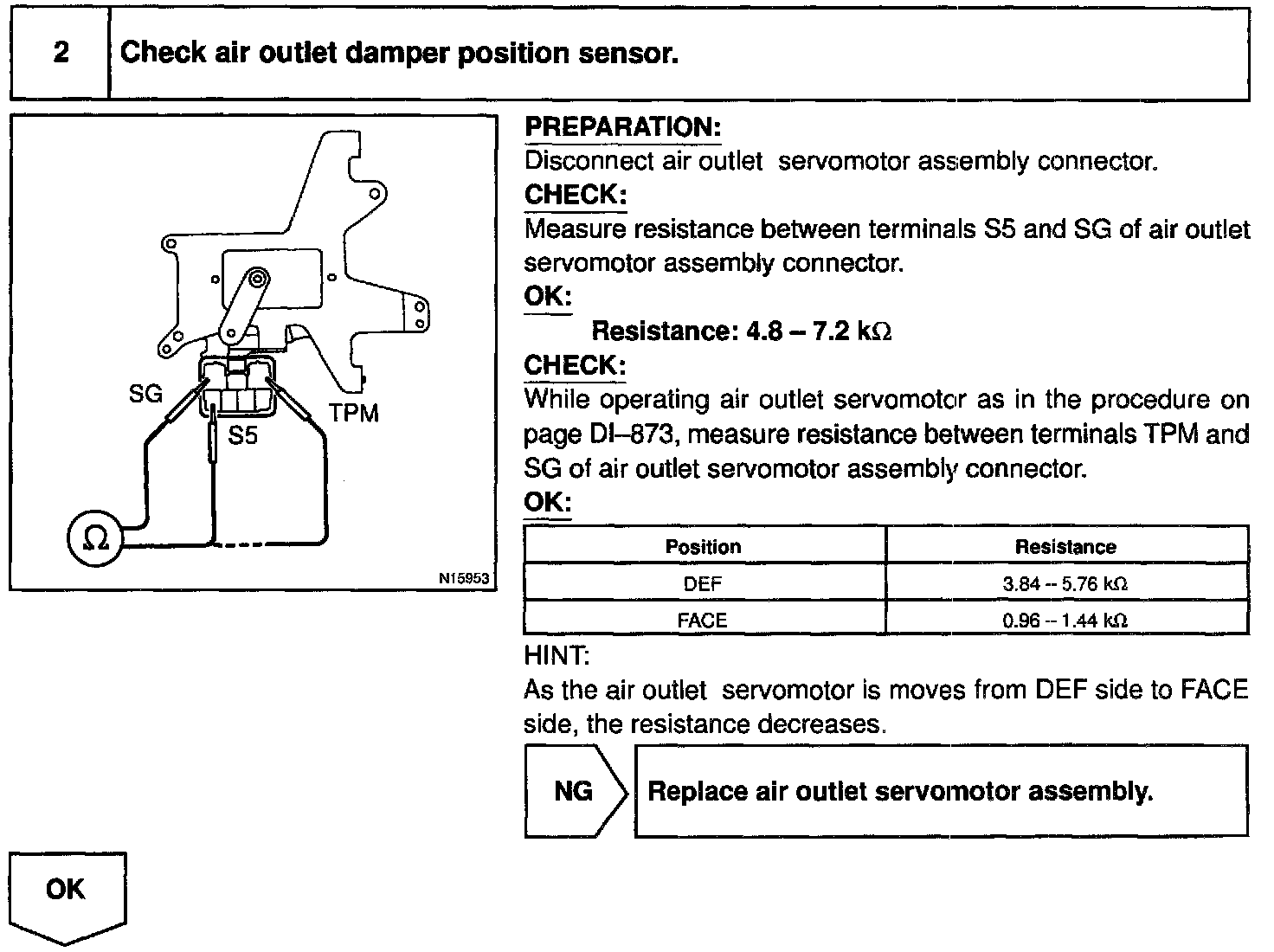

Step 2:

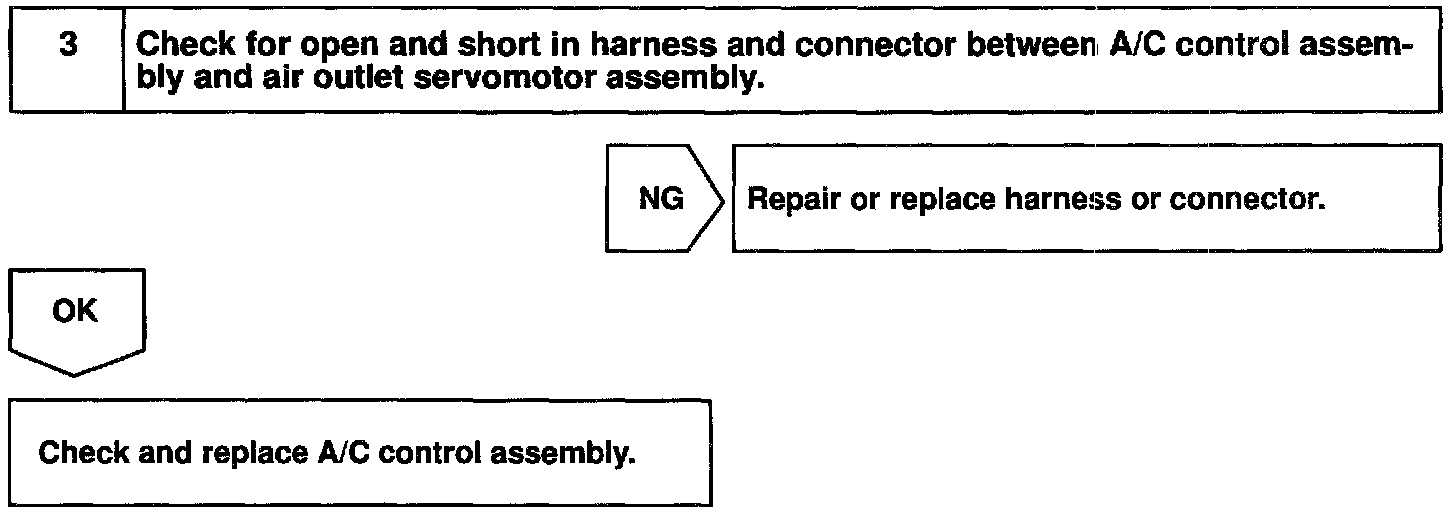

Step 3:

INSPECTION PROCEDURE
