Air Inlet Control Servomotor Circuit

DTC 42 Air Inlet Servomotor Circuit

INSPECTION PROCEDURE
The air inlet servomotor is controlled by the A/C control assembly and moves the air inlet damper to the desired Position.

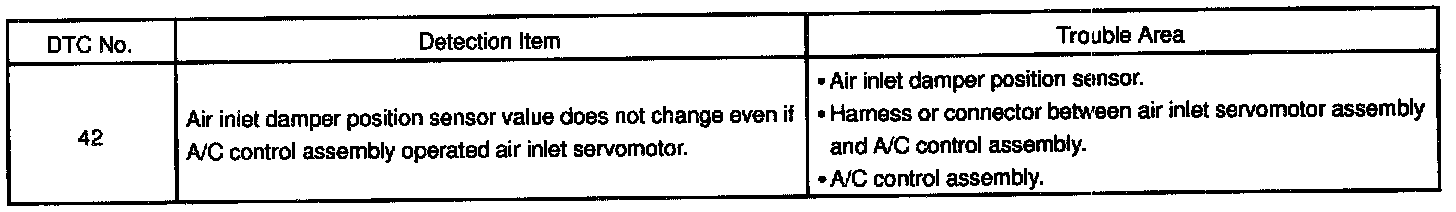

DETECTING CONDITIONS

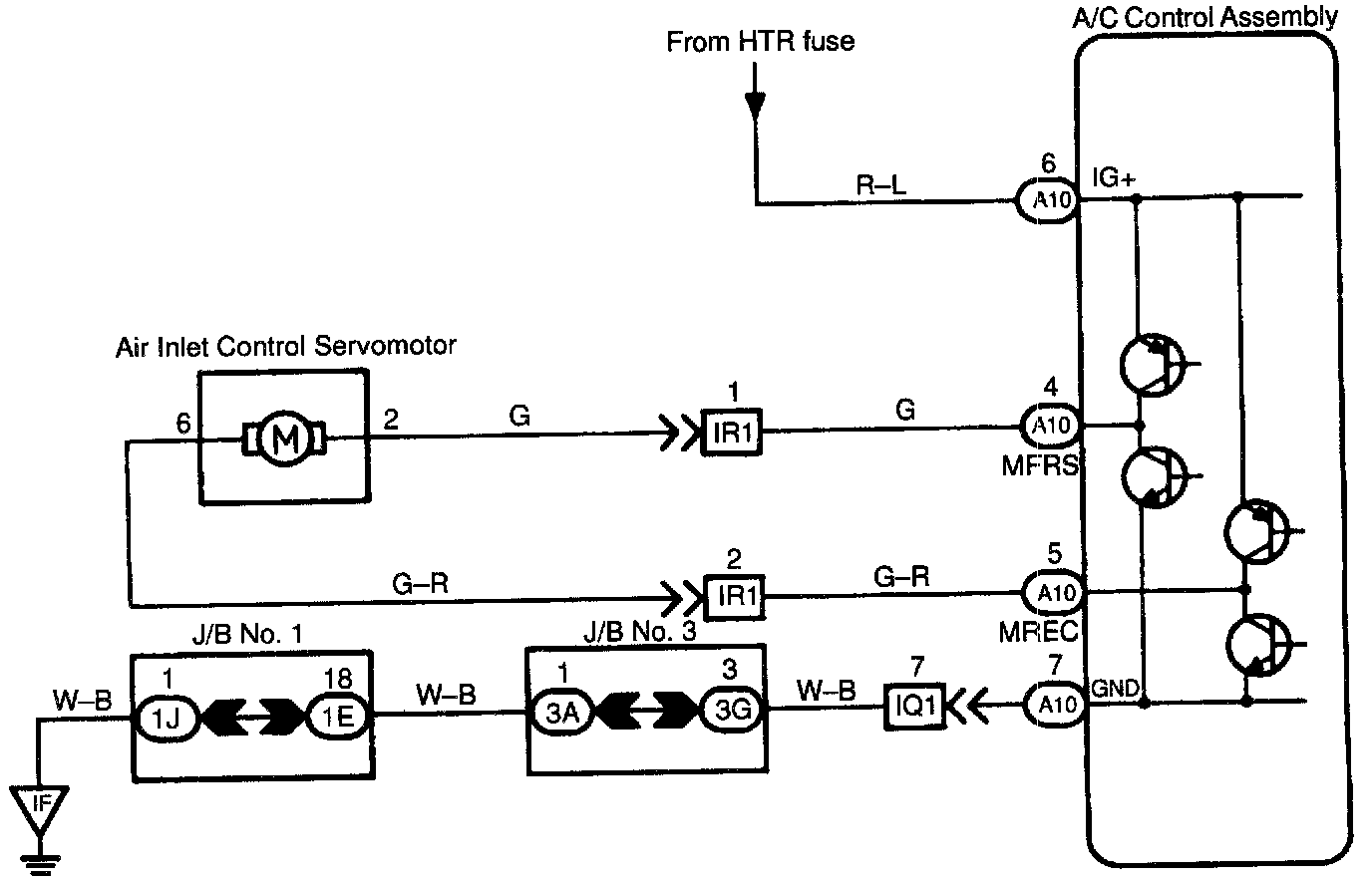

WIRING DIAGRAM

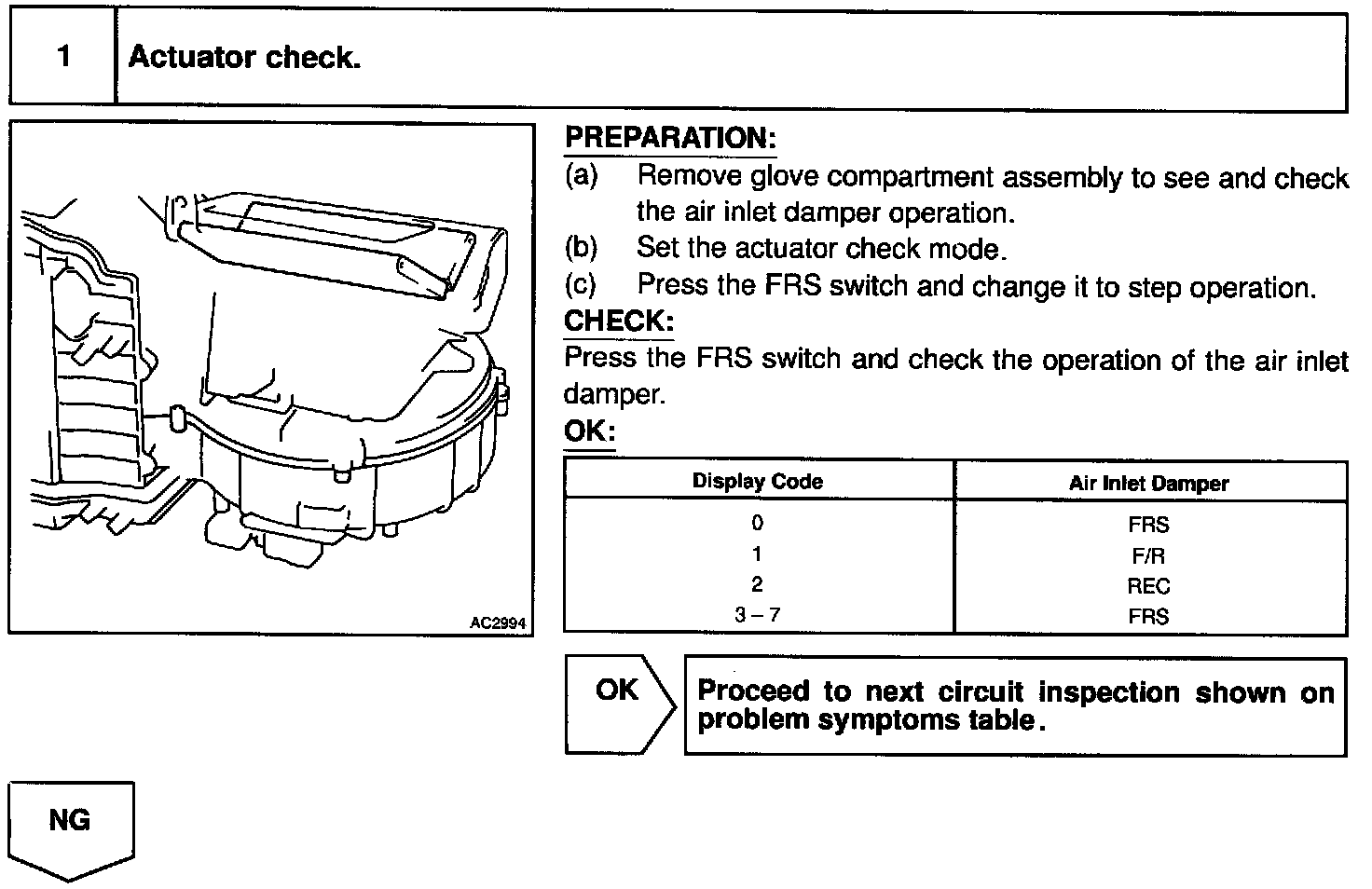

Step 1:

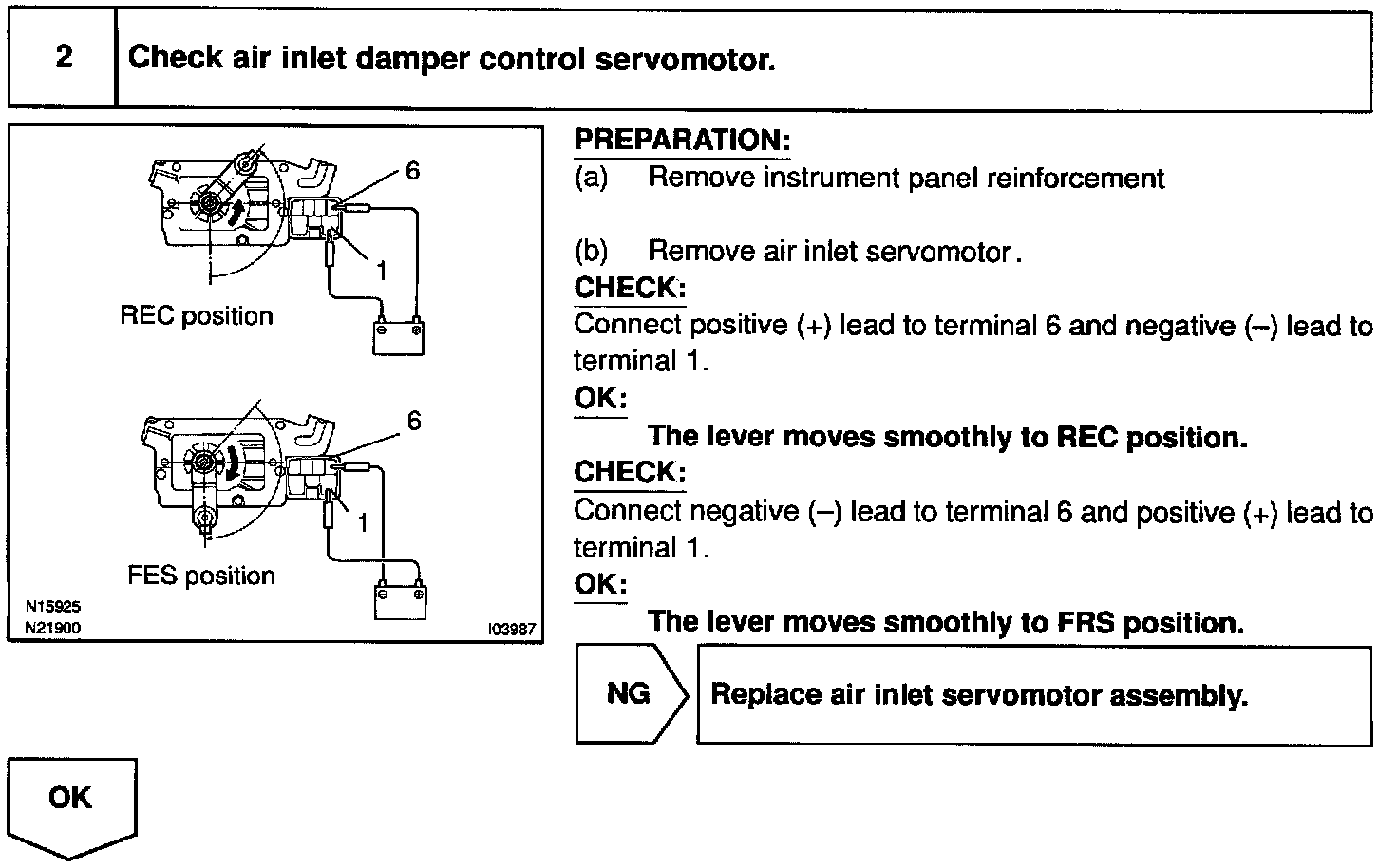

Step 2:

Step 3:

INSPECTION PROCEDURE
