Air Mix Damper Position Sensor Circuit

DTC 41 Air Mix Damper Position Sensor Circuit





CIRCUIT DESCRIPTION
This sensor detects the position of the air mix damper and sends the appropriate signals to the A/C control assembly. The position sensor is built into the air mix servomotor assembly.

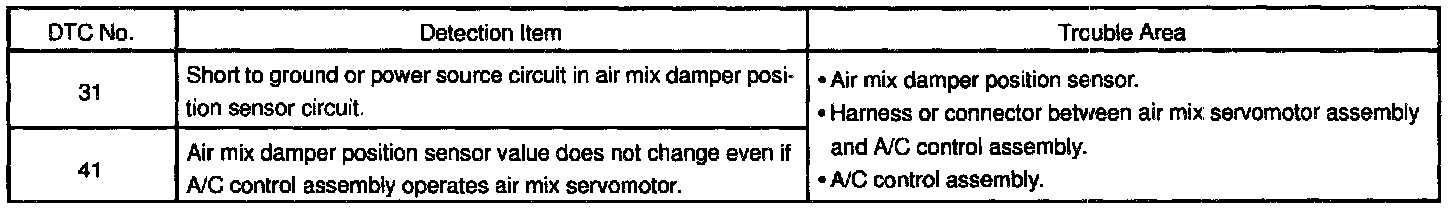

DETECTING CONDITIONS





WIRING DIAGRAM

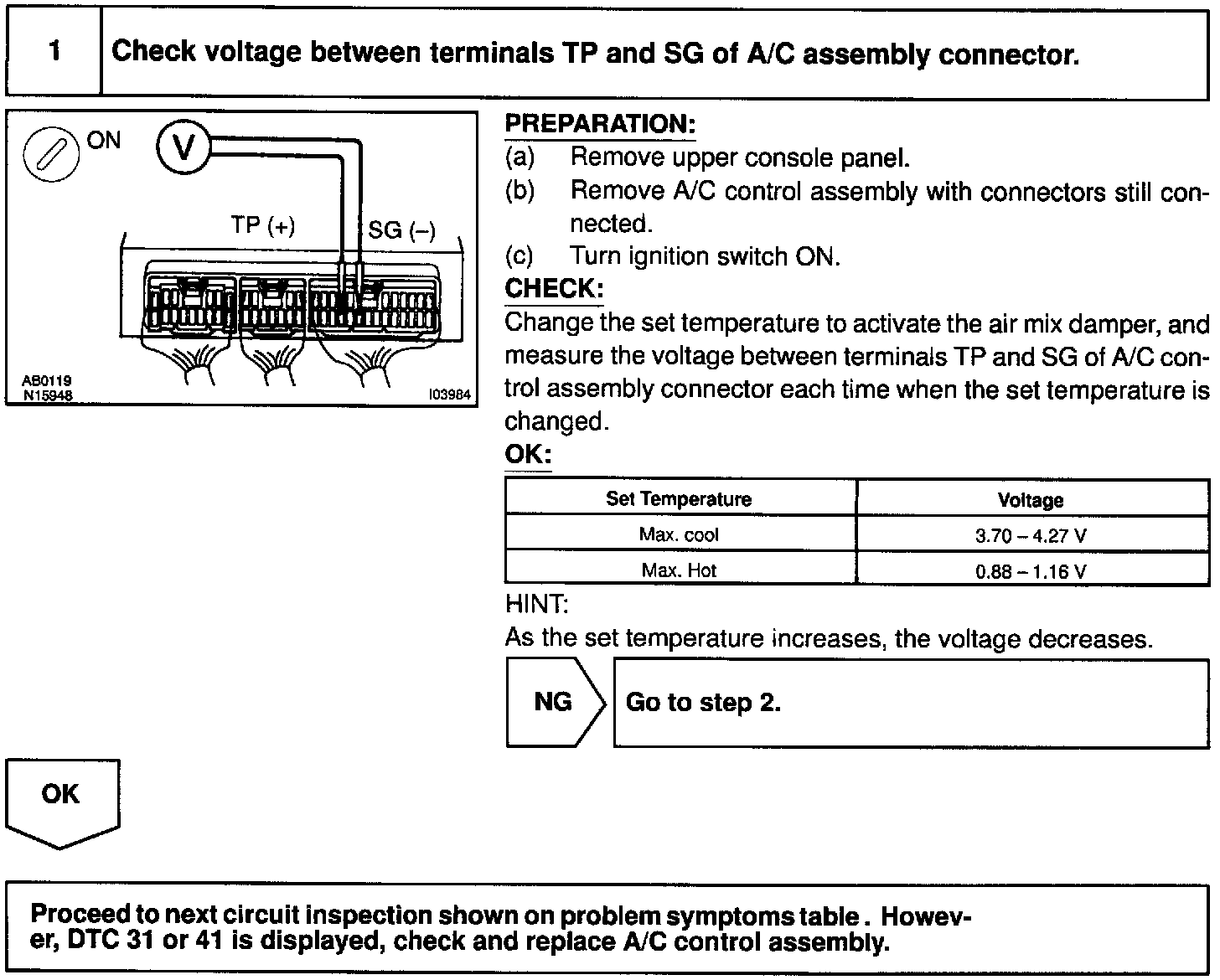

Step 1:

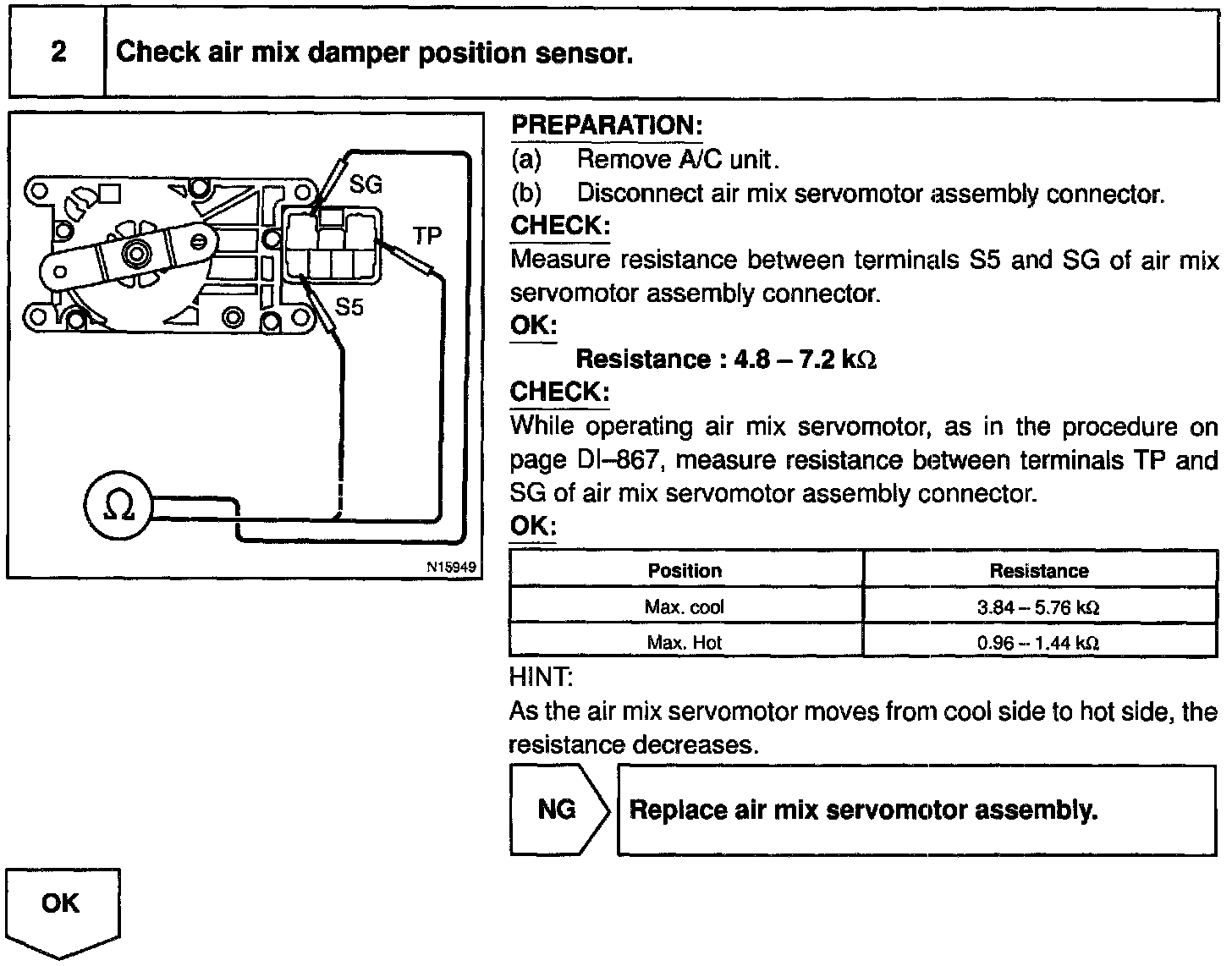

Step 2:

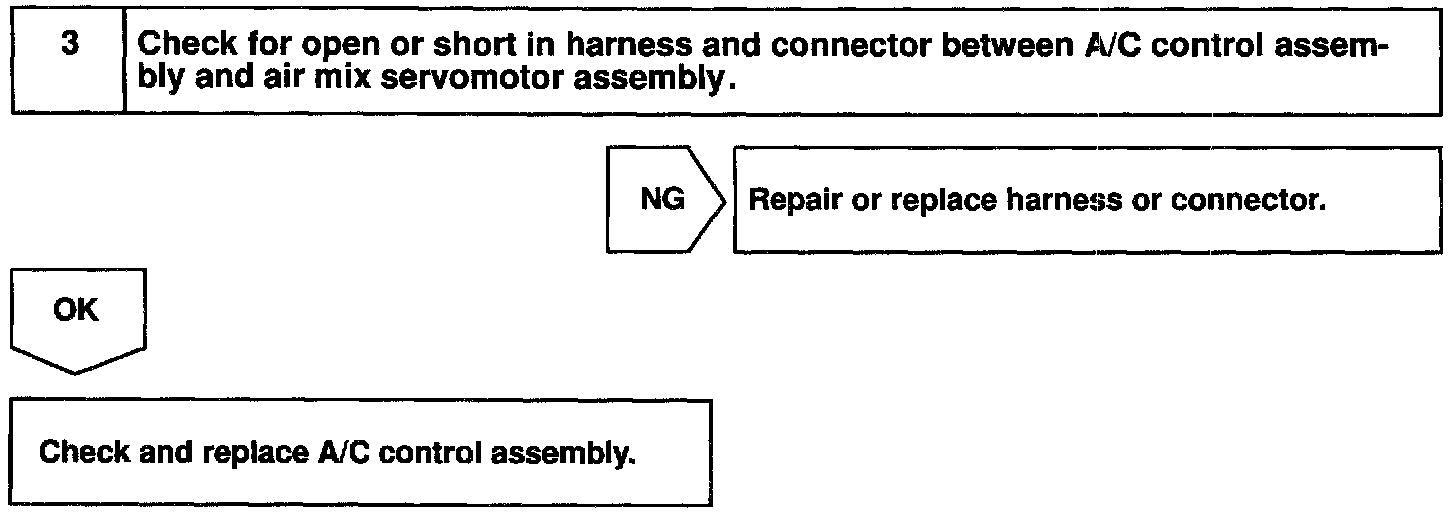

Step 3:

INSPECTION PROCEDURE
