DTC 32

DTC 32 Air Inlet Damper Position Sensor Circuit





CIRCUIT DESCRIPTION
This sensor detects the position of the air inlet damper and sends the appropriate signals to the A/C control assembly. The position sensor is built into the air mix servomotor assembly.

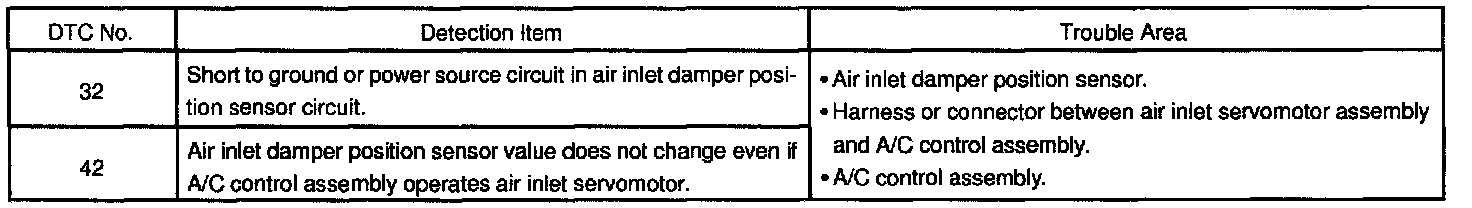

DETECTING CONDITIONS





WIRING DIAGRAM

Step 1:

Step 2:

Step 3:

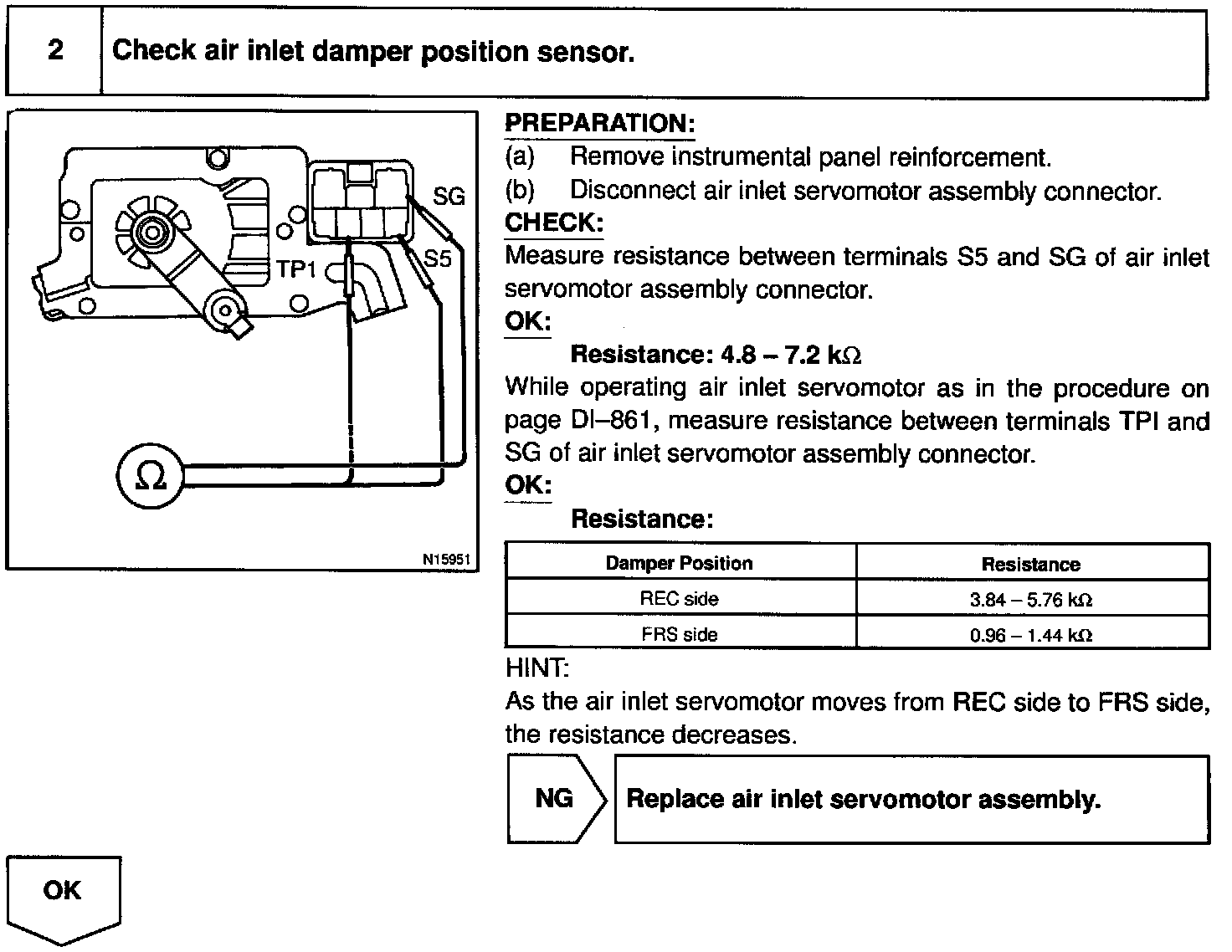

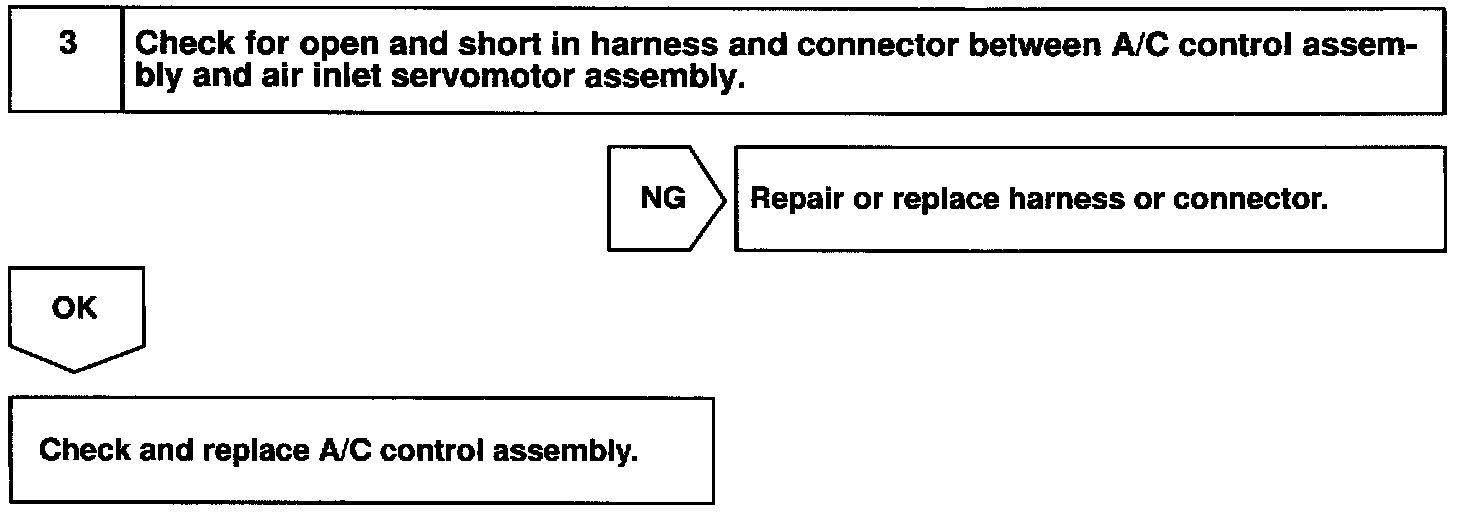

INSPECTION PROCEDURE
