DTC 23

DTC 23 Pressure Switch Circuit

CIRCUIT DESCRIPTION
The pressure switch sends the appropriate signals to the A/C control assembly when the A/C refrigerant pressure drops too low or rises to high. When the A/C control assembly receives these signals, it outputs signals via the ECM to switch off the compressor relay and turns the magnetic clutch off.

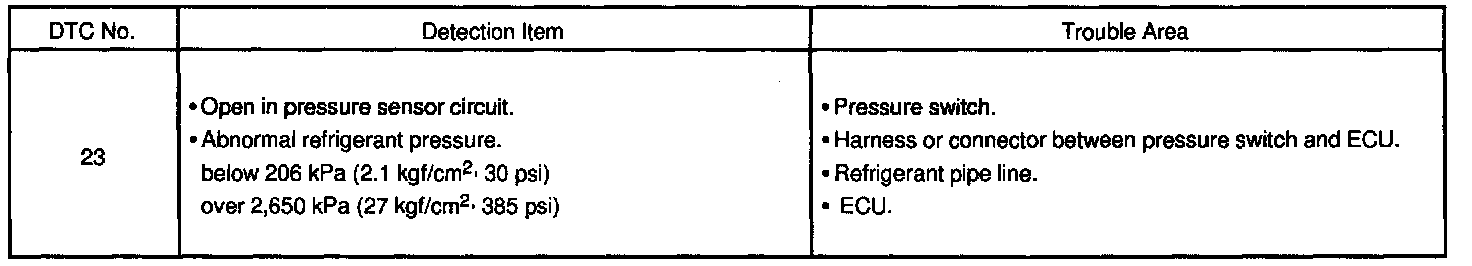

DETECTING CONDITIONS





WIRING DIAGRAM

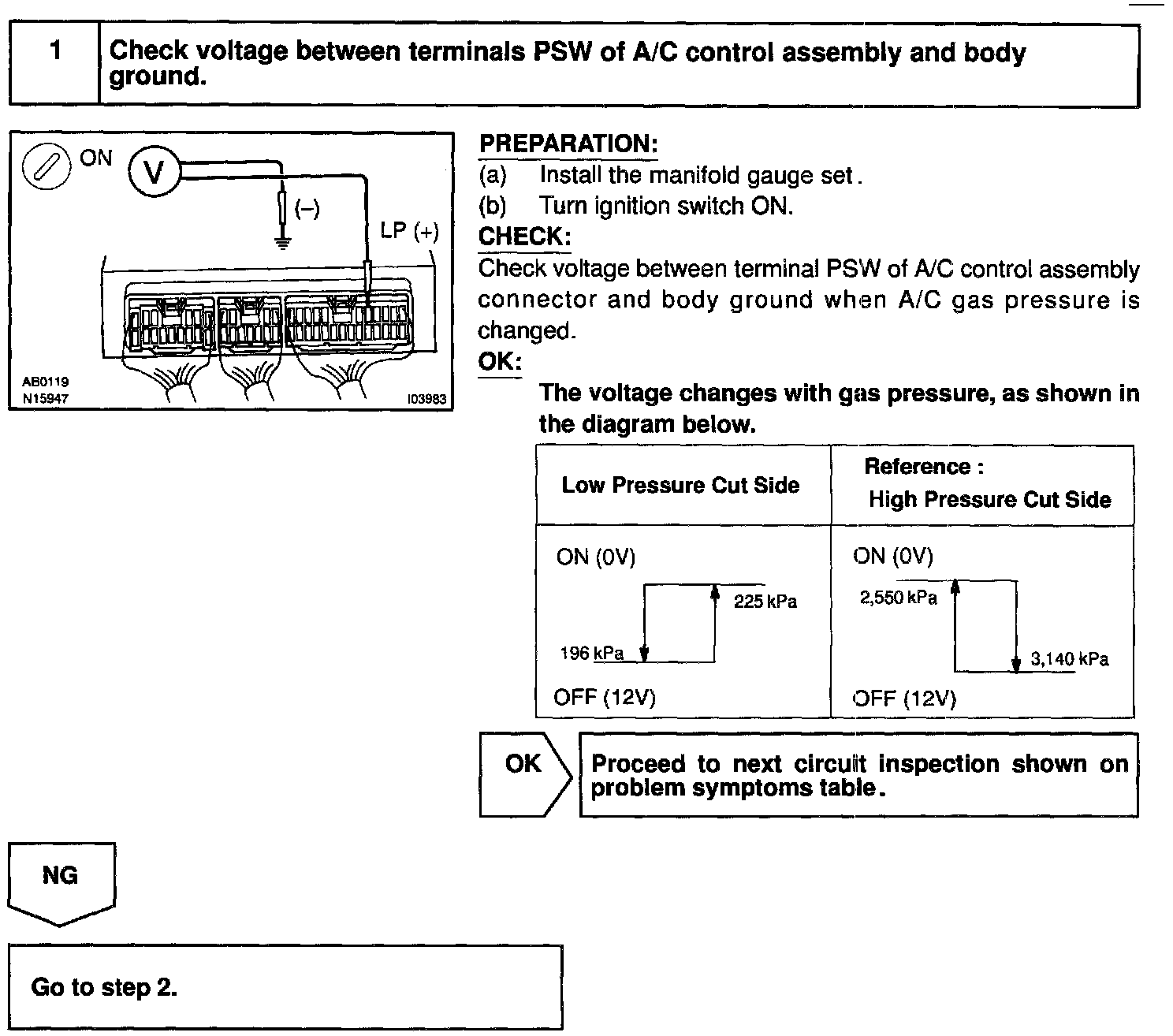

Step 1:

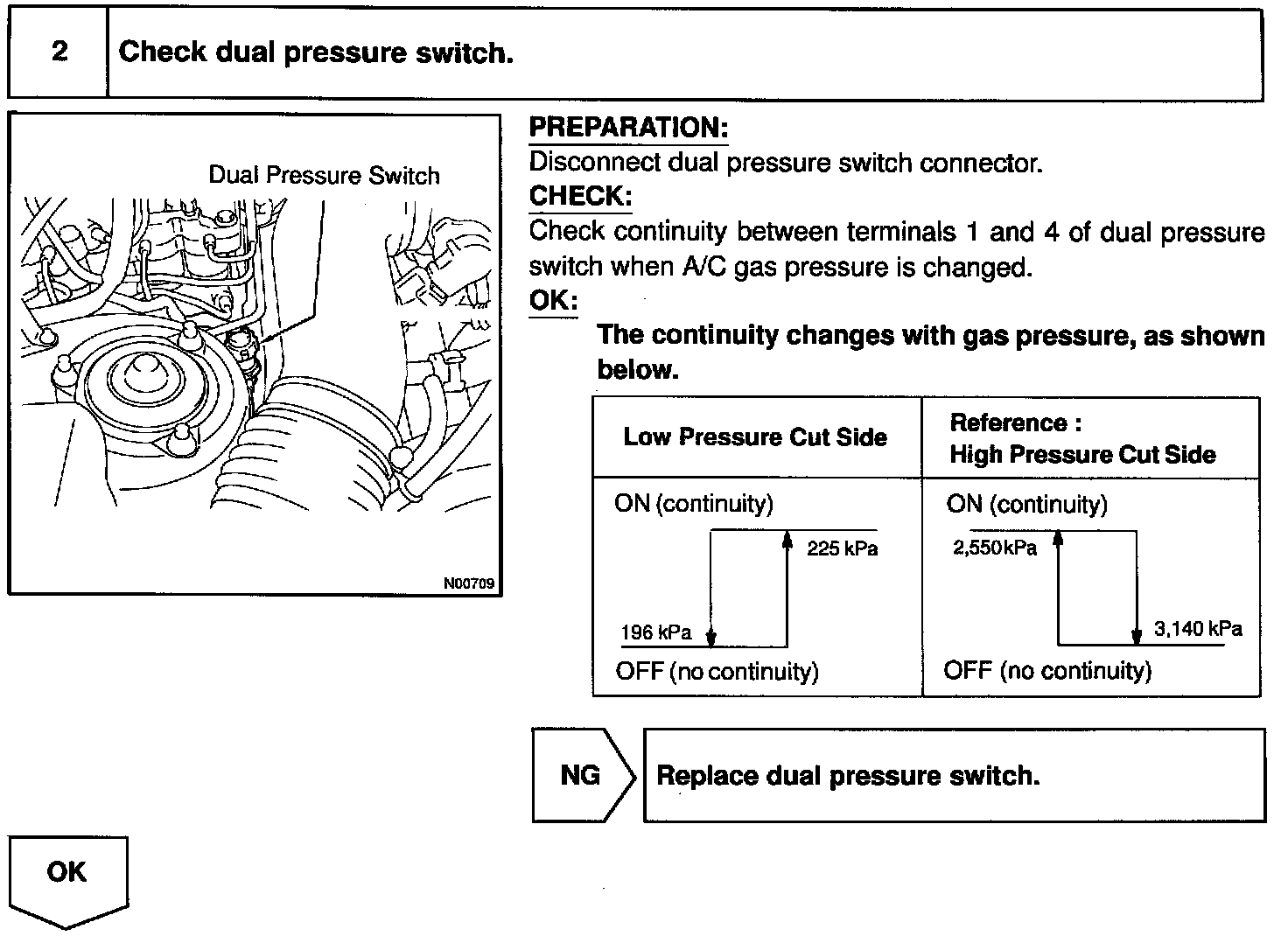

Step 2:

Step 3:

INSPECTION PROCEDURE
