DTC 12

DTC 12 Ambient Temperature Sensor Circuit

CIRCUIT DESCRIPTION
This sensor detects the ambient temperature and sends the appropriate signals to the A/C control assembly.

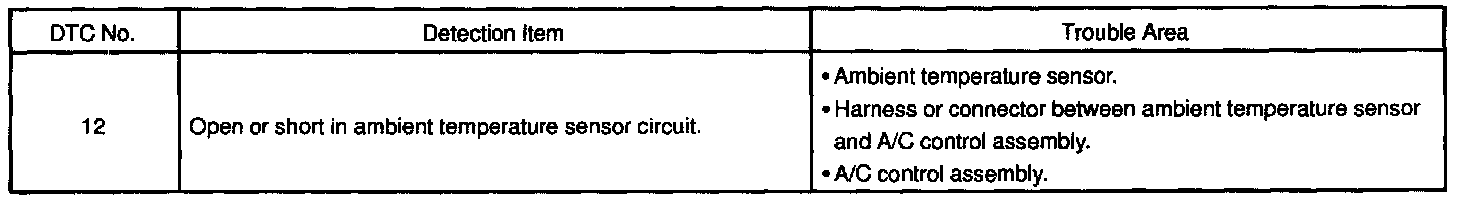

DETECTING CONDITIONS





WIRING DIAGRAM

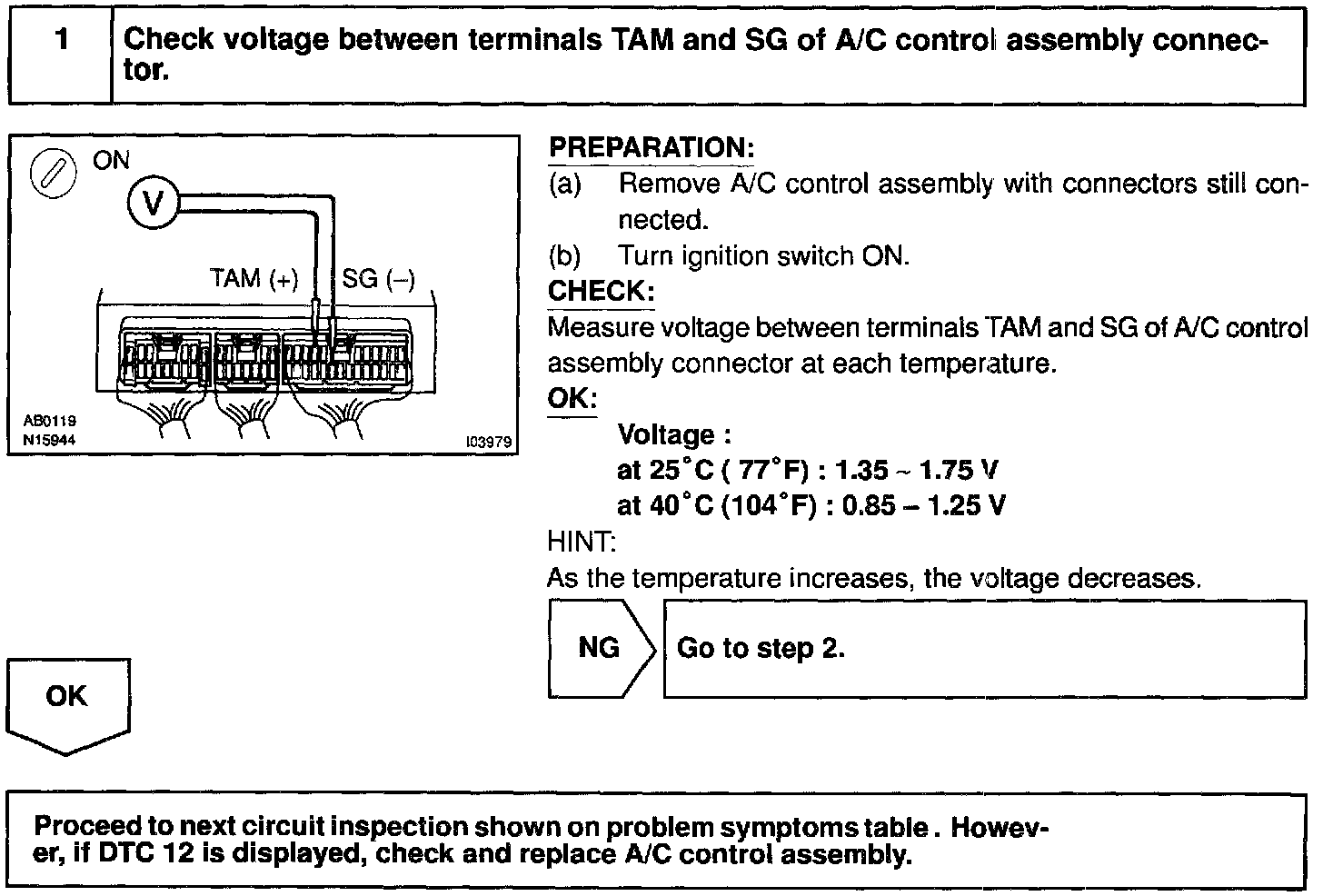

Step 1:

Step 2:

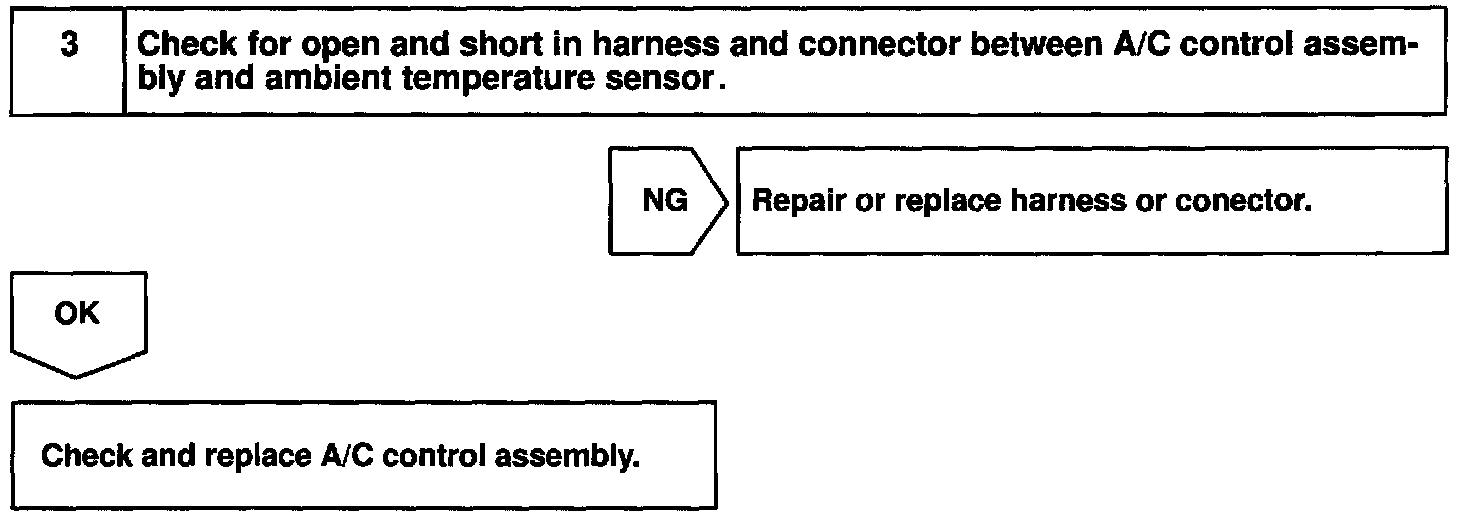

Step 3:

INSPECTION PROCEDURE
