DTC 11

DTC 11 Room Temperature Sensor Circuit

CIRCUIT DESCRIPTION
This sensor detects the temperature inside the cabin and sends the appropriate signals to the A/C control assembly.

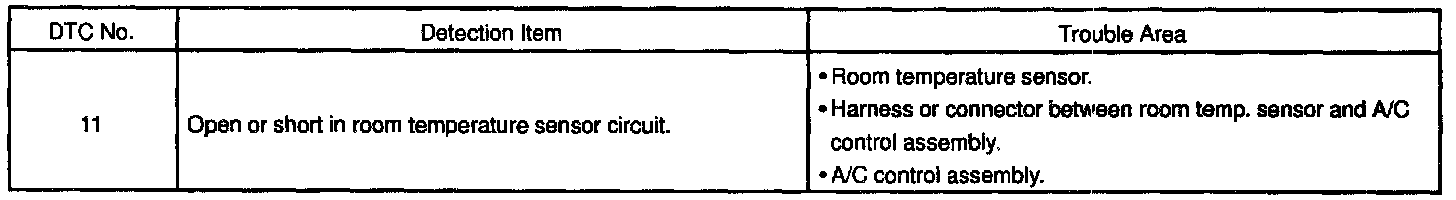

DETECTING CONDITIONS





WIRING DIAGRAM

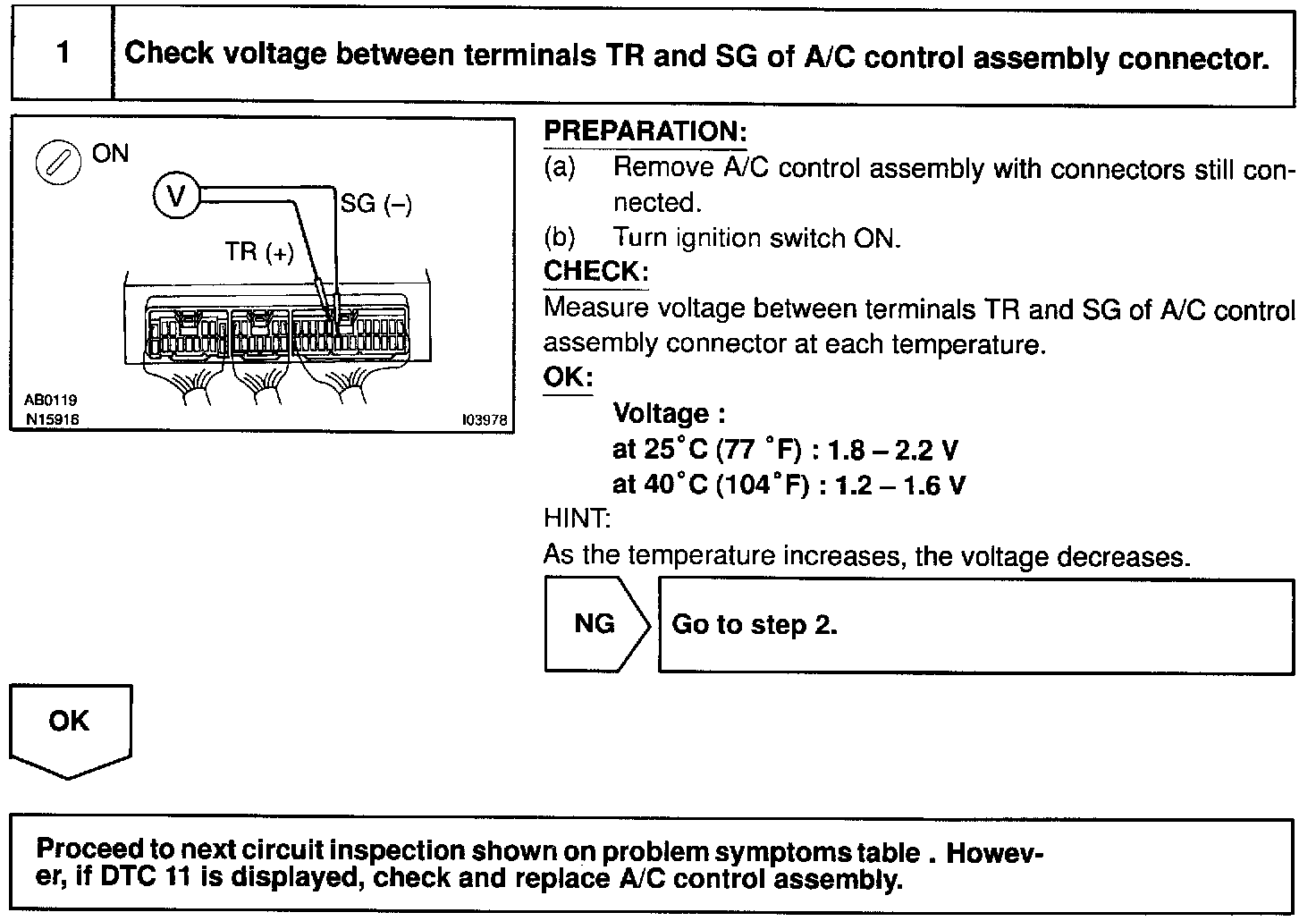

Step 1:

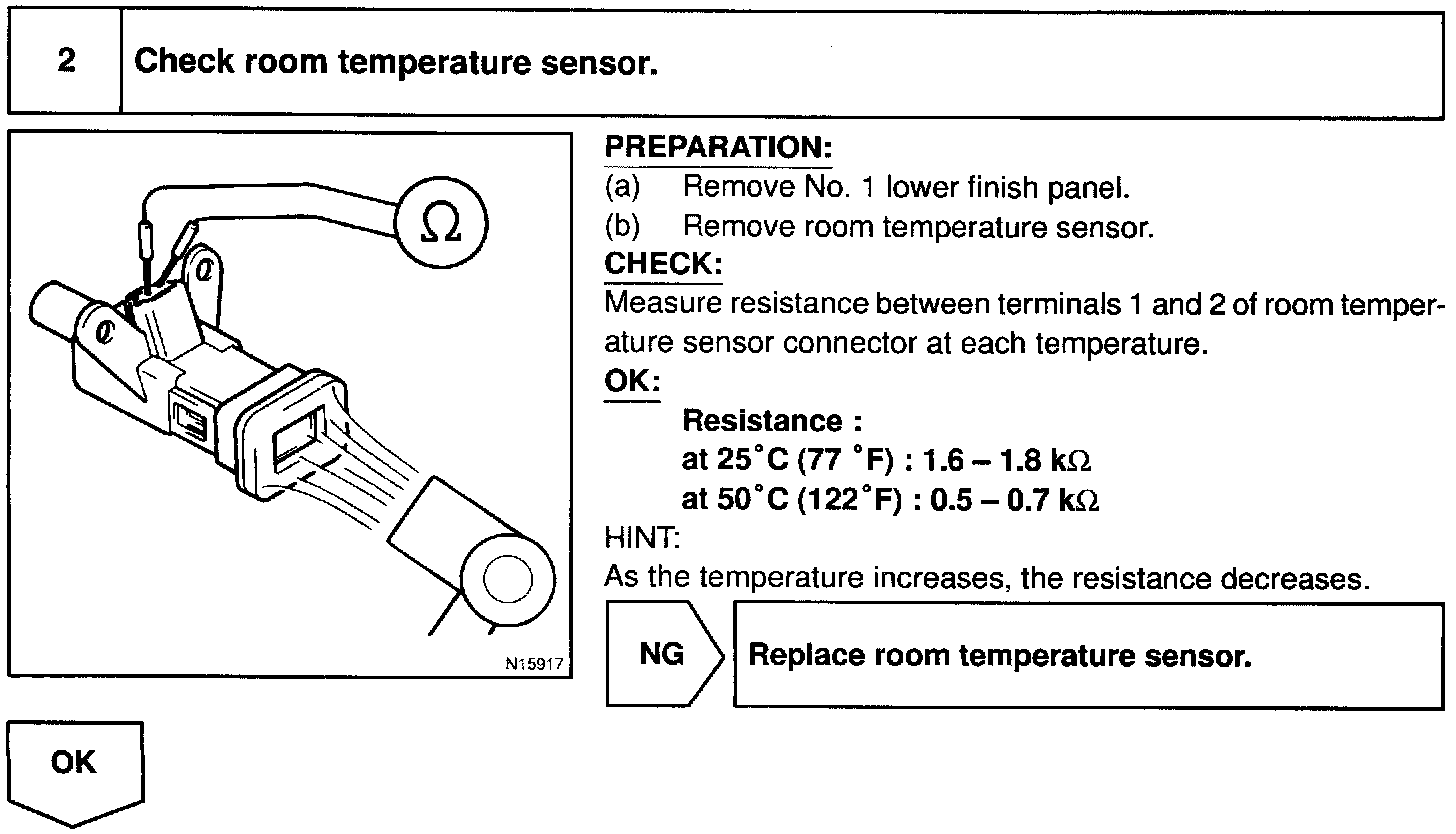

Step 2:

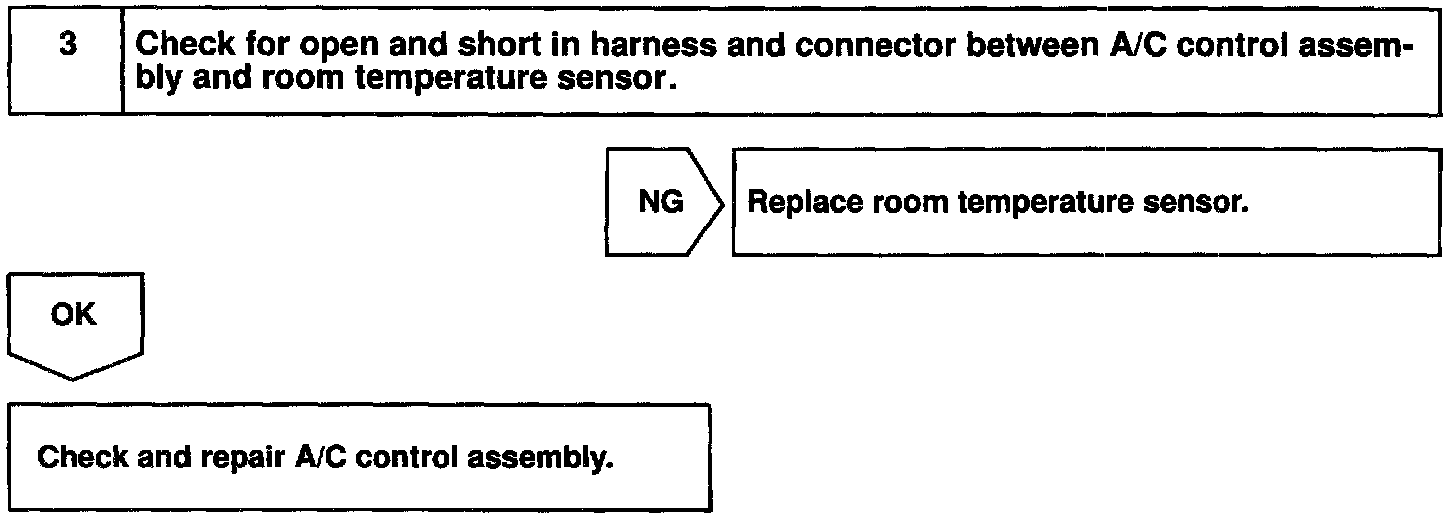

Step 3:

INSPECTION PROCEDURE
