No Communication in Immobilizer system


DTC 99 No Communication in Immobiliser System

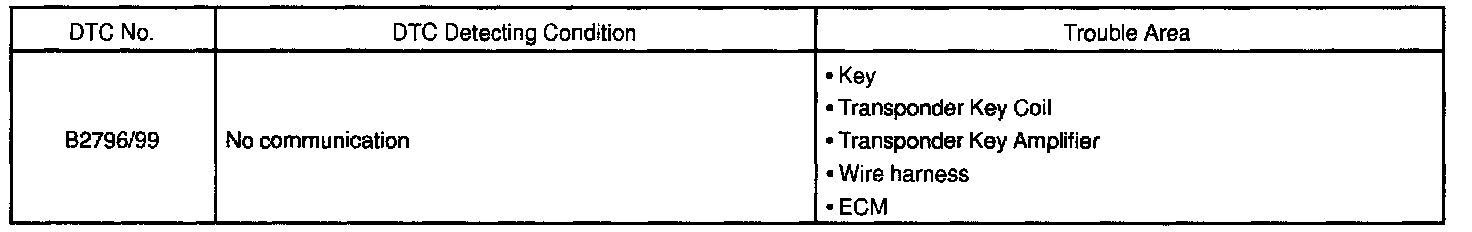

DETECTING CONDITIONS

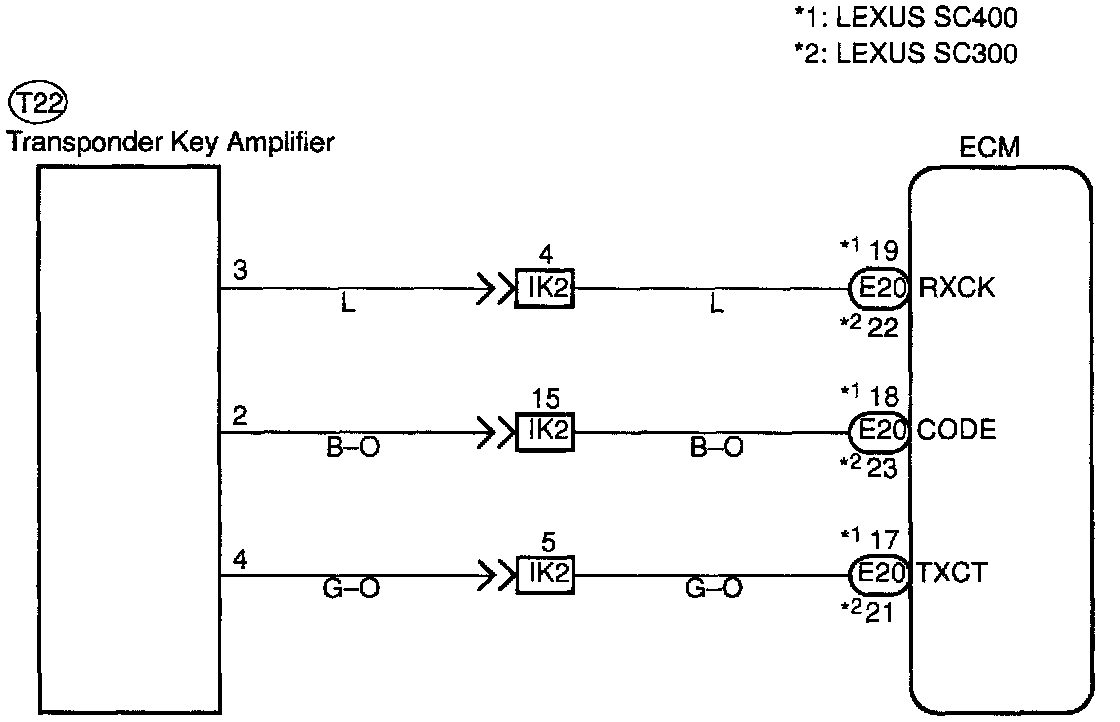

WIRING DIAGRAM

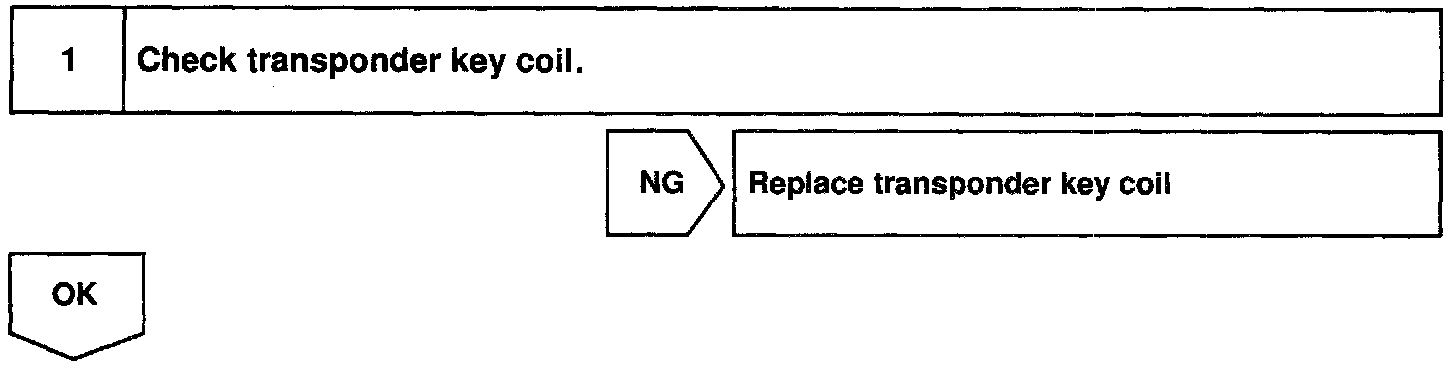

Step 1:

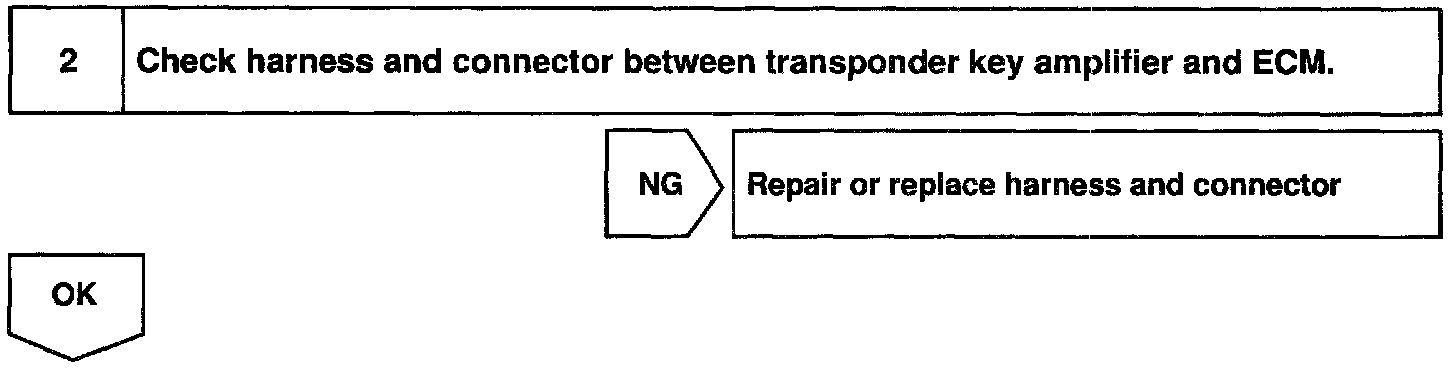

Step 2:

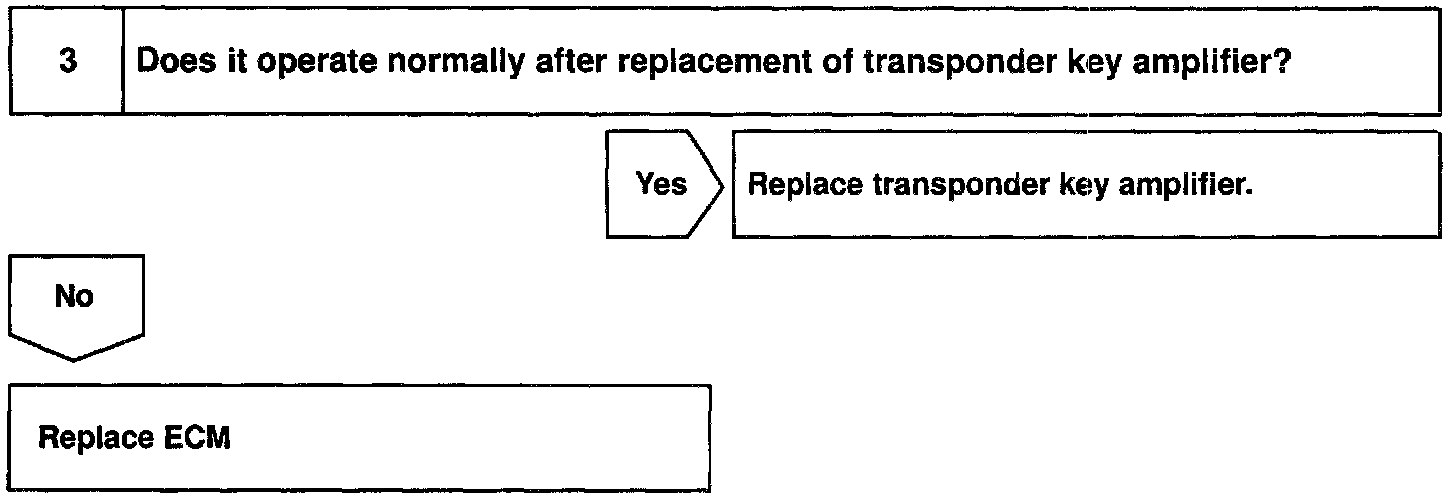

Step 3:





INSPECTION PROCEDURE
