Key Unlock Warning Switch OFF Malfunction

DTC 99 Key Unlock Warning SW OFF Malfunction

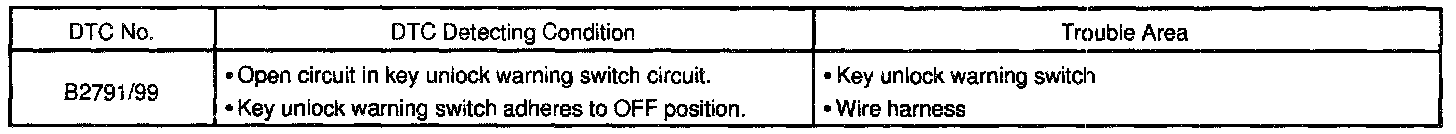

DETECTING CONDITIONS

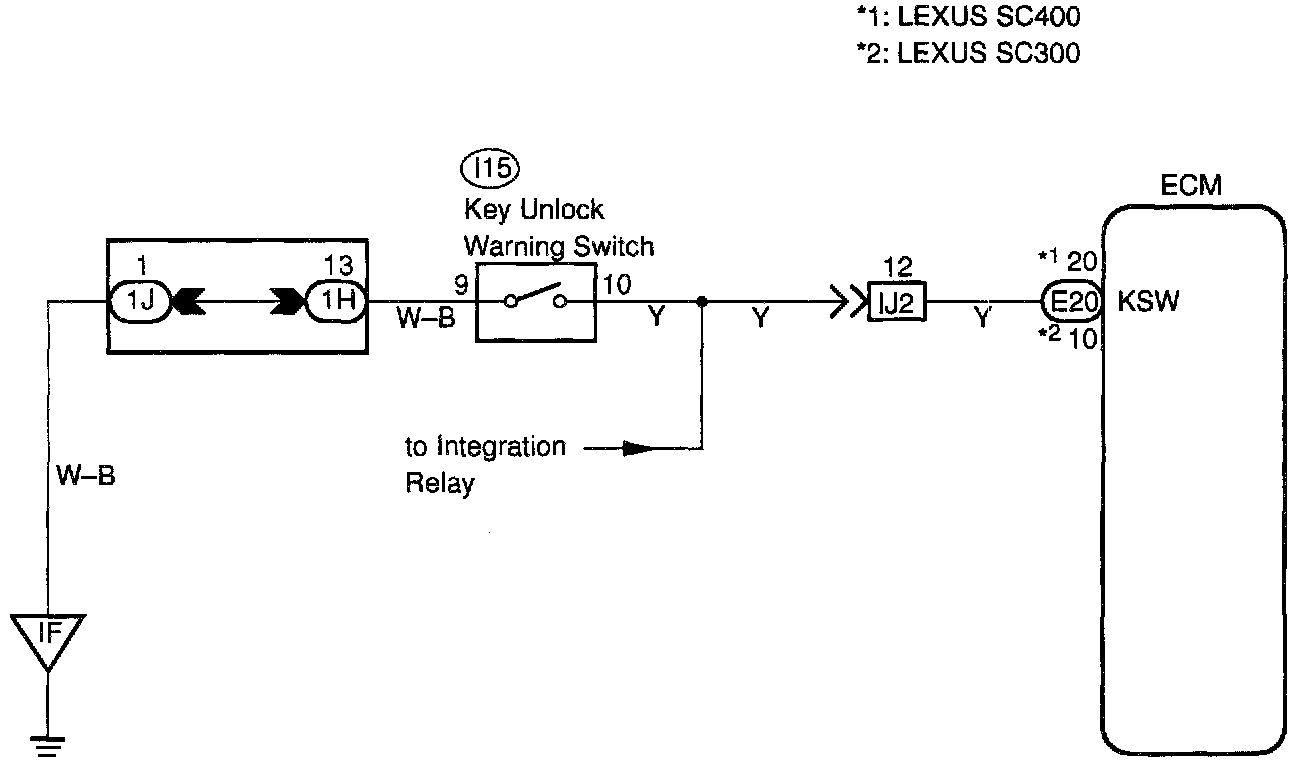

WIRING DIAGRAM

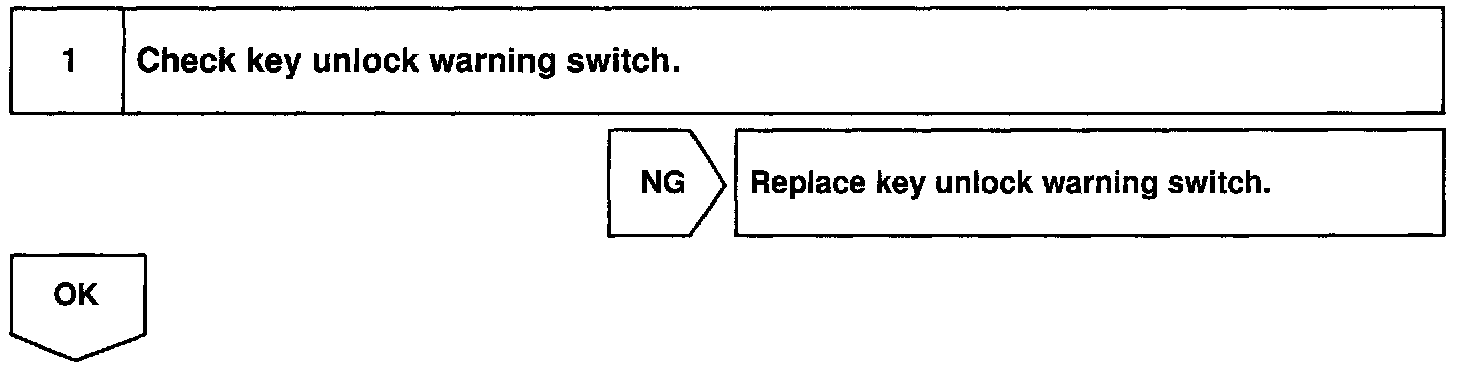

Step 1:

Step 2:

INSPECTION PROCEDURE
