DTC 54

DTC 54 Open In P Squib Circuit

CIRCUIT DESCRIPTION
The P squib circuit consists of the airbag sensor assembly and front passenger airbag assembly. It causes the airbag to deploy when the airbag deployment conditions are satisfied.
DTC 54 is recorded when an open is detected in the P squib circuit.





DETECTING CONDITIONS





WIRING DIAGRAM

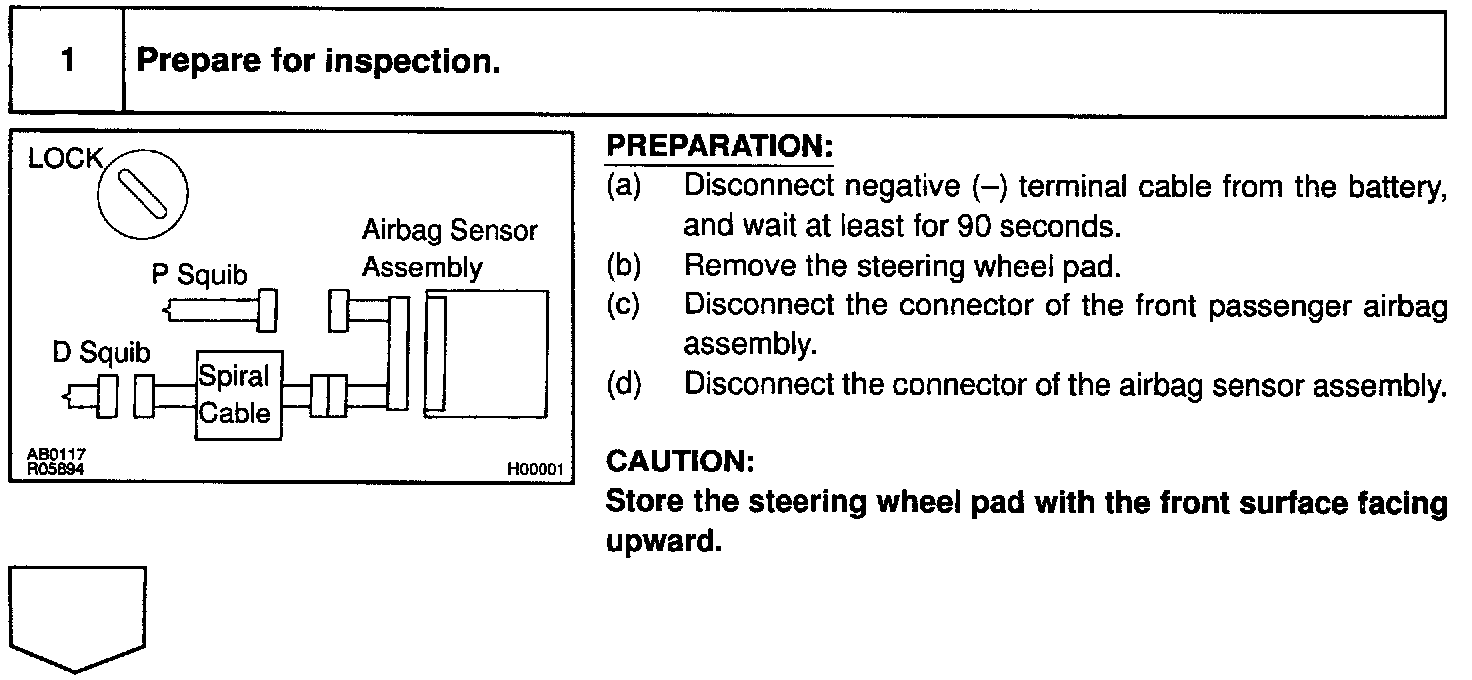

Step 1:

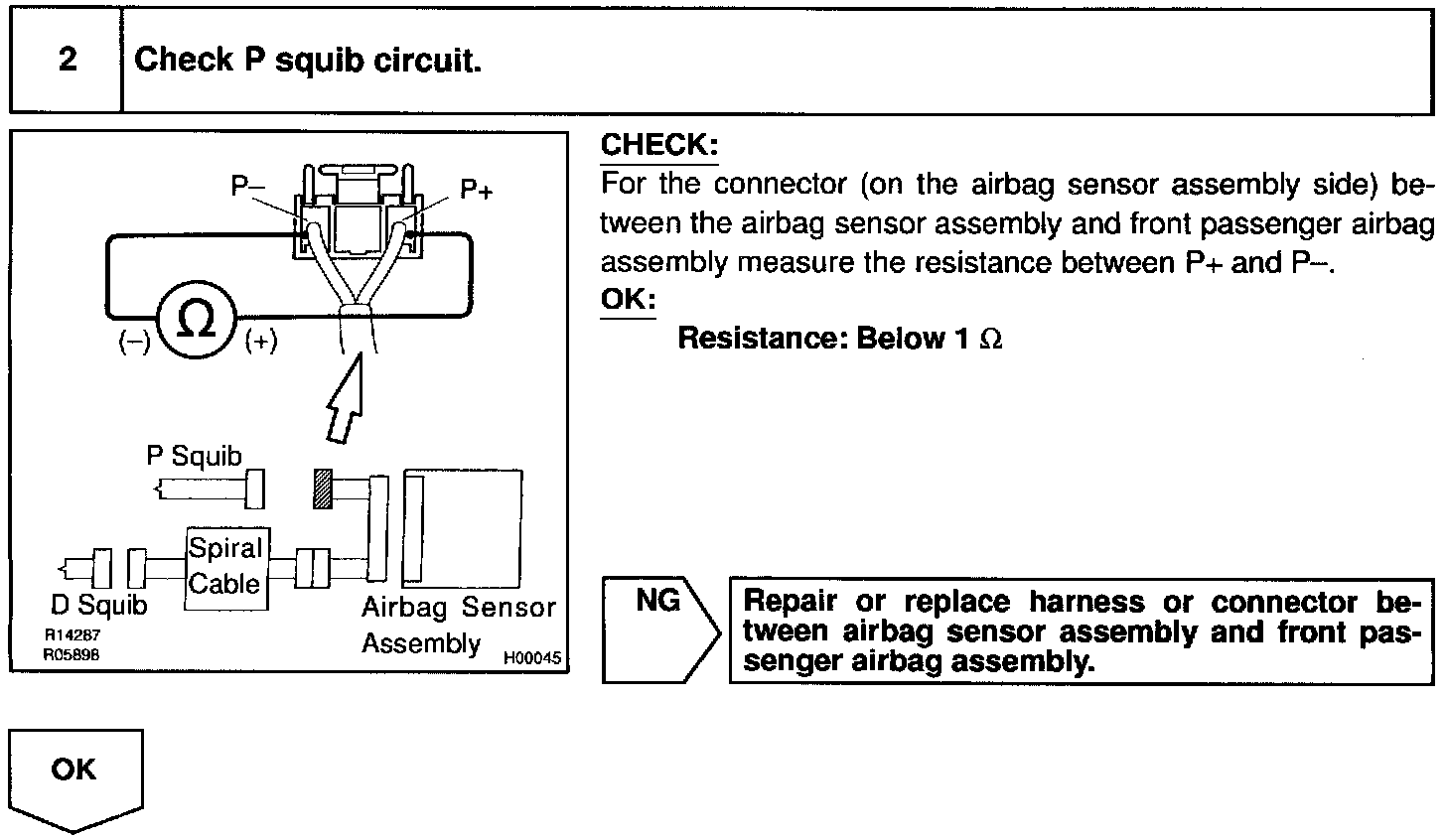

Step 2:

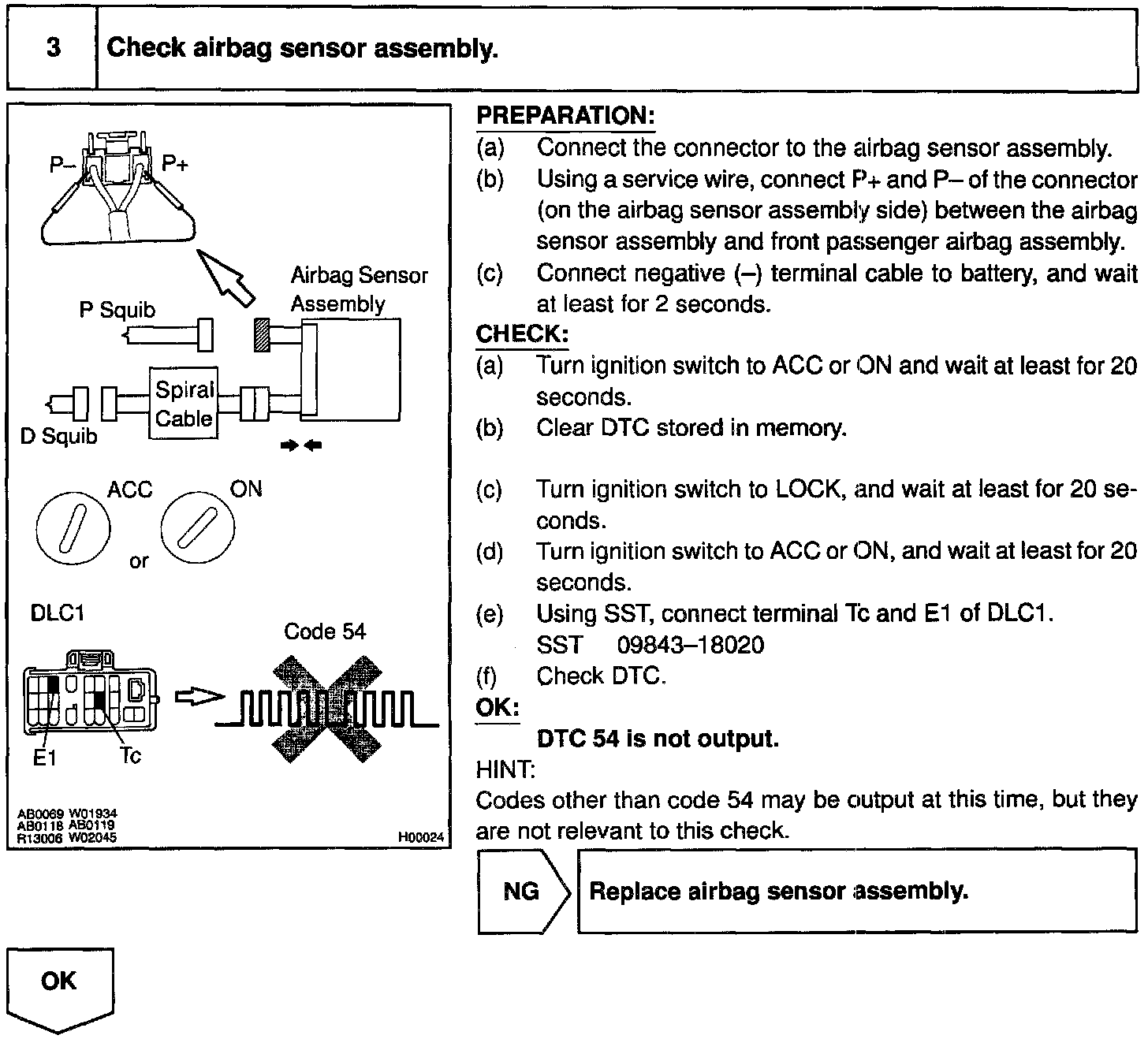

Step 3:

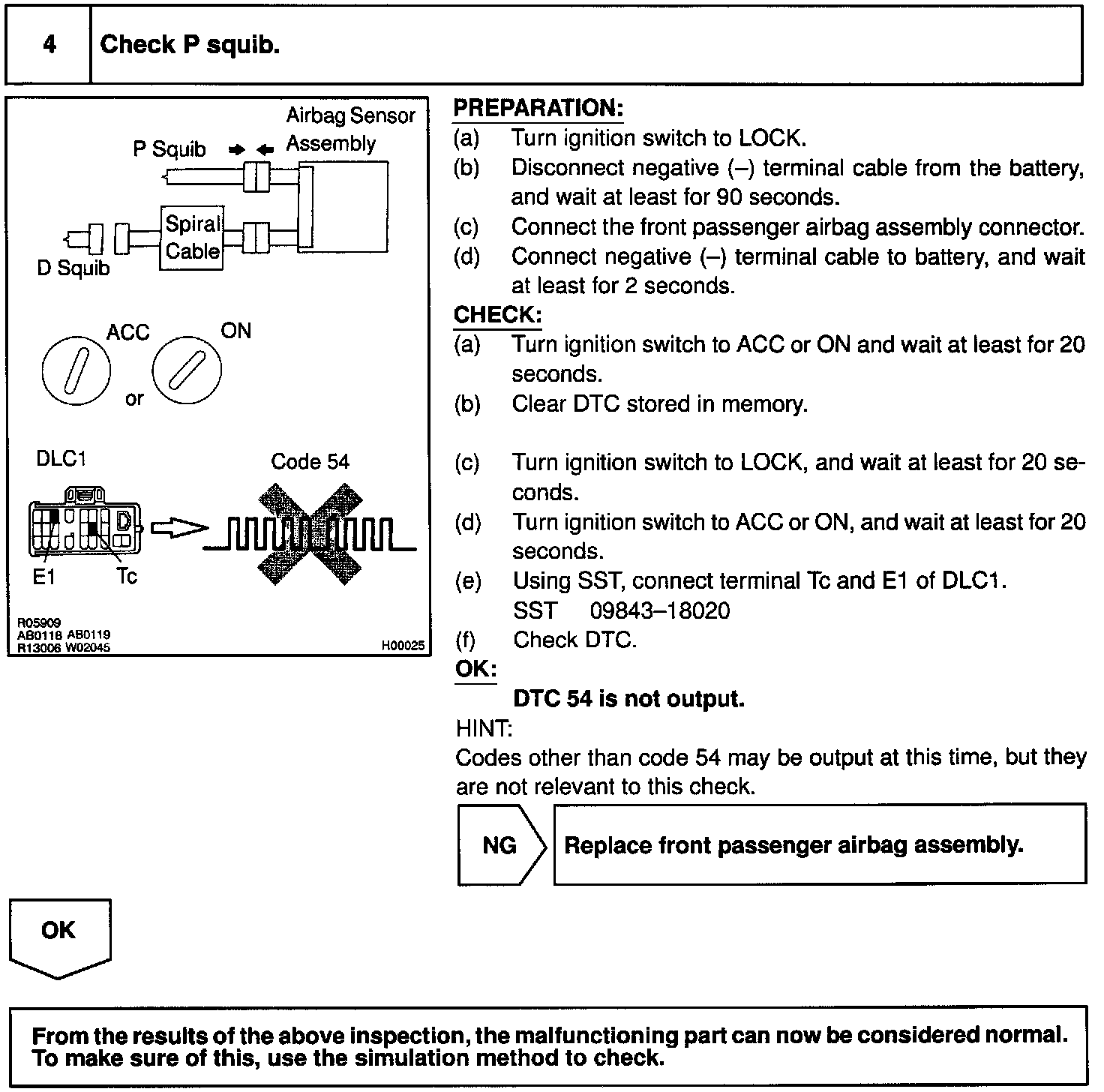

Step 4:

INSPECTION PROCEDURE
