DTC 12

DTC 12 Short in Squib Circuit (to B+)

CIRCUIT DESCRIPTION
The squib circuit consists of the airbag sensor assembly, spiral cable, steering wheel pad and front passenger airbag assembly. It causes the SRS to deploy when the SRS deployment conditions are satisfied.
DTC 12 is recorded when a B+ short is detected in the squib circuit.





DETECTING CONDITIONS

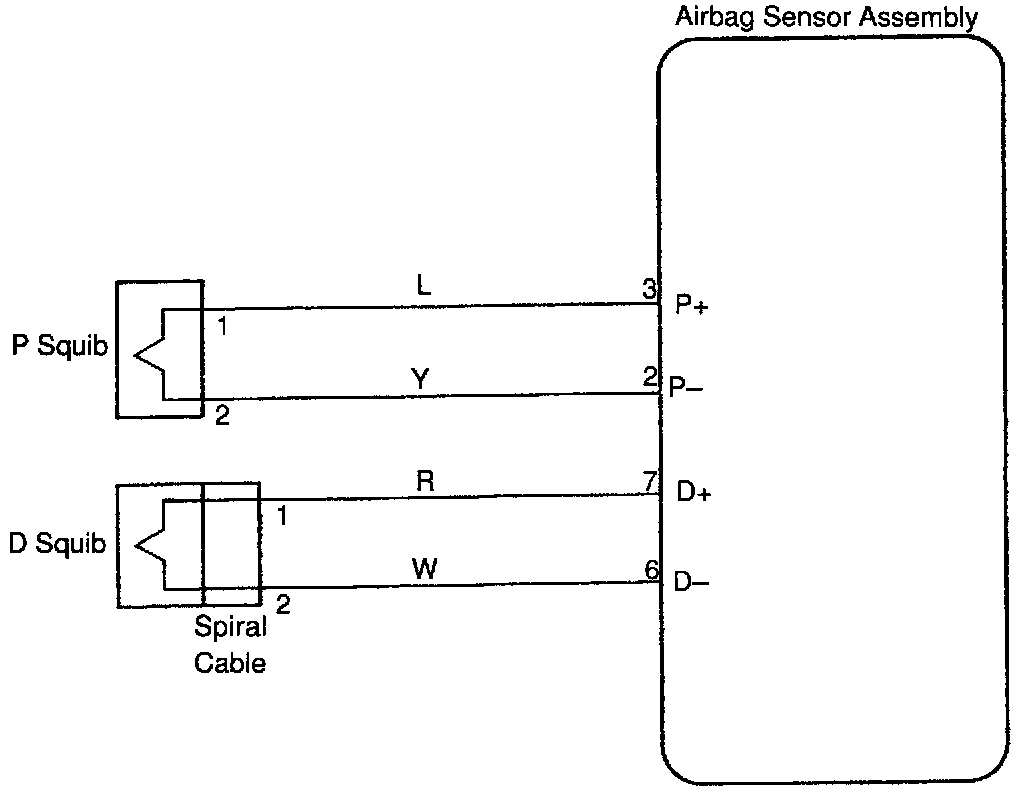

WIRING DIAGRAM

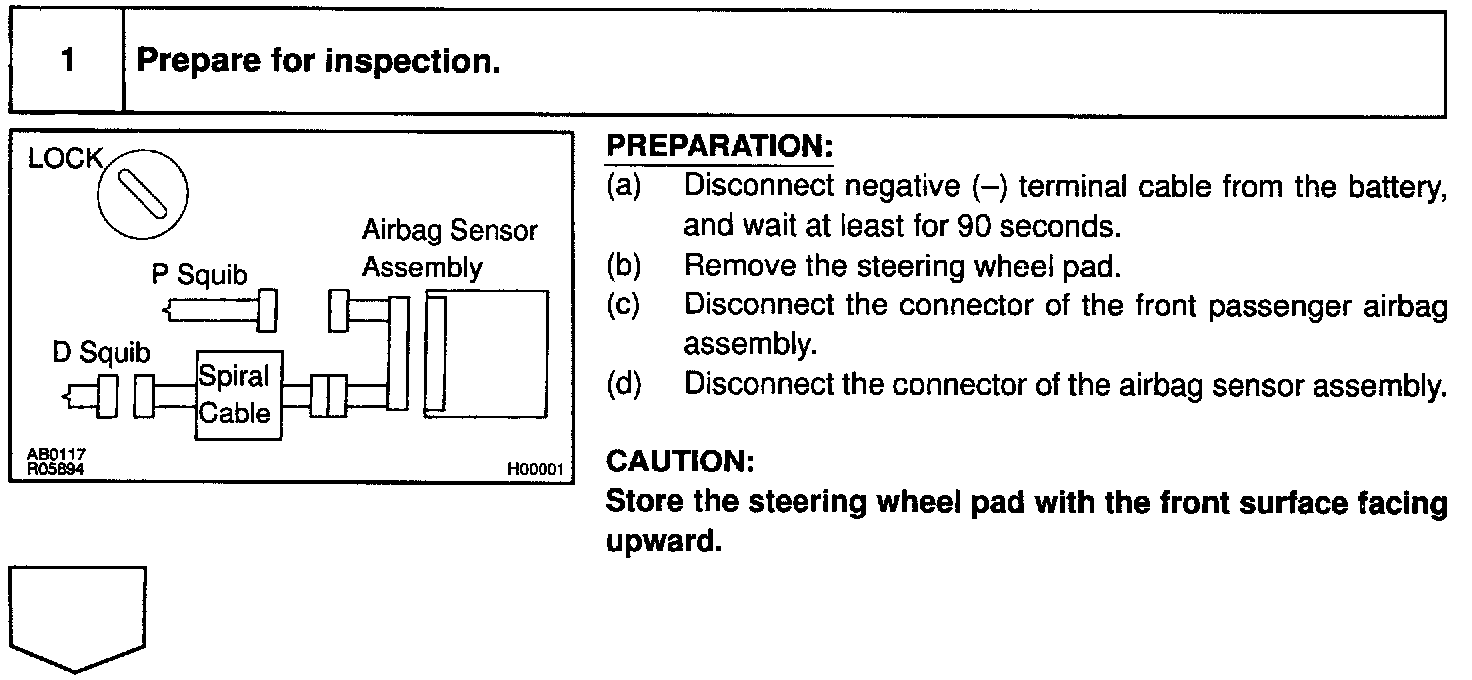

Step 1:

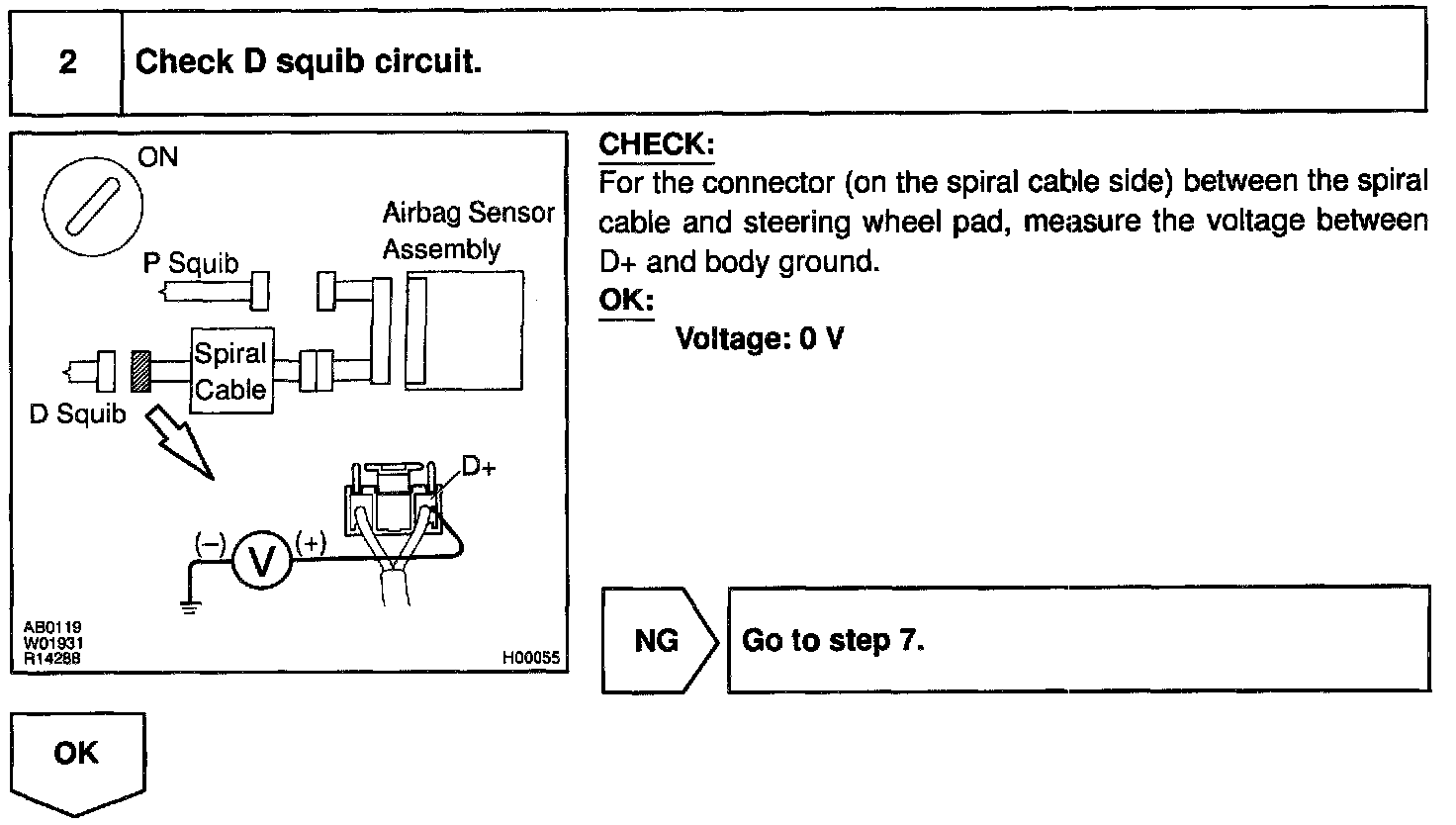

Step 2:

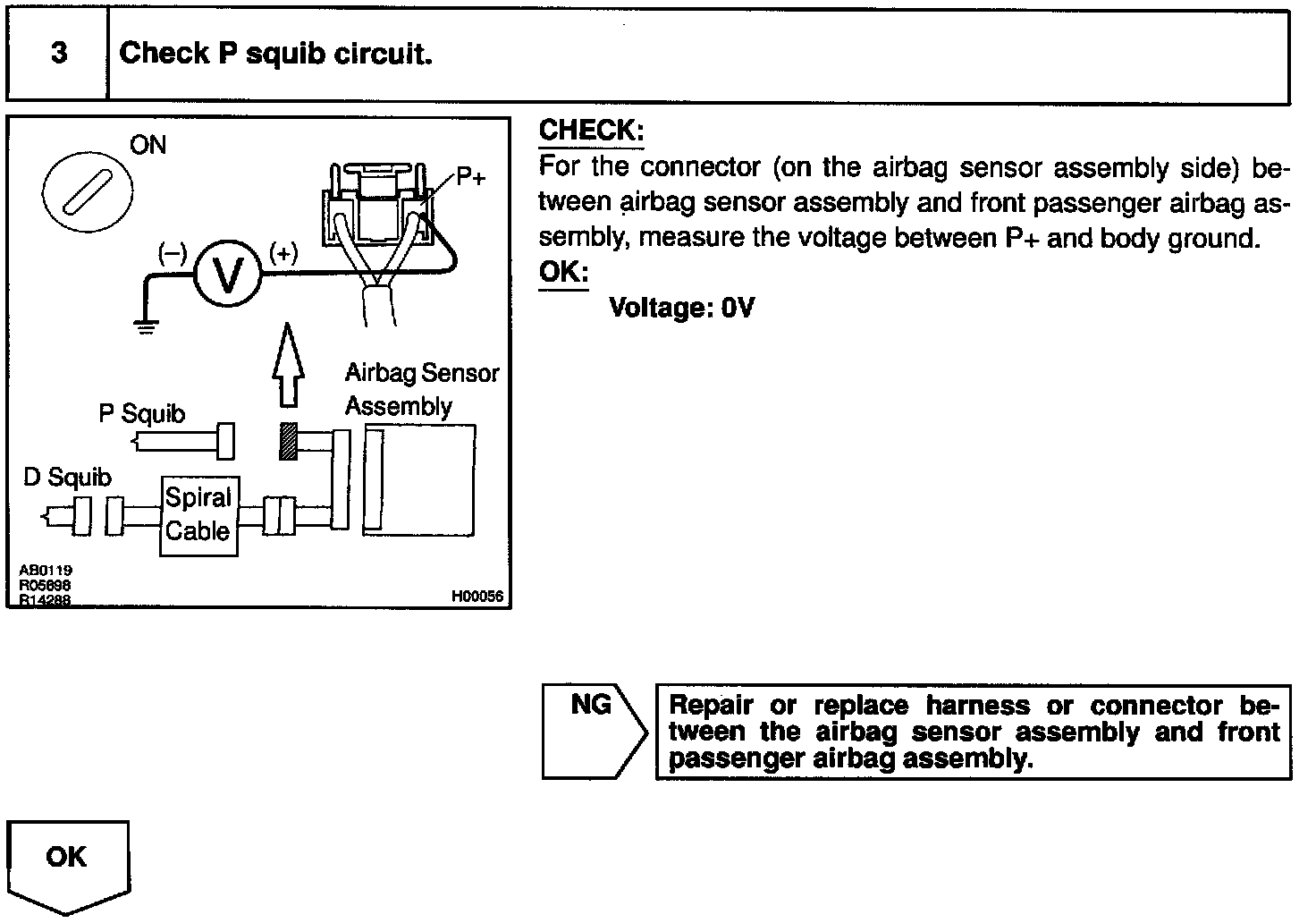

Step 3:

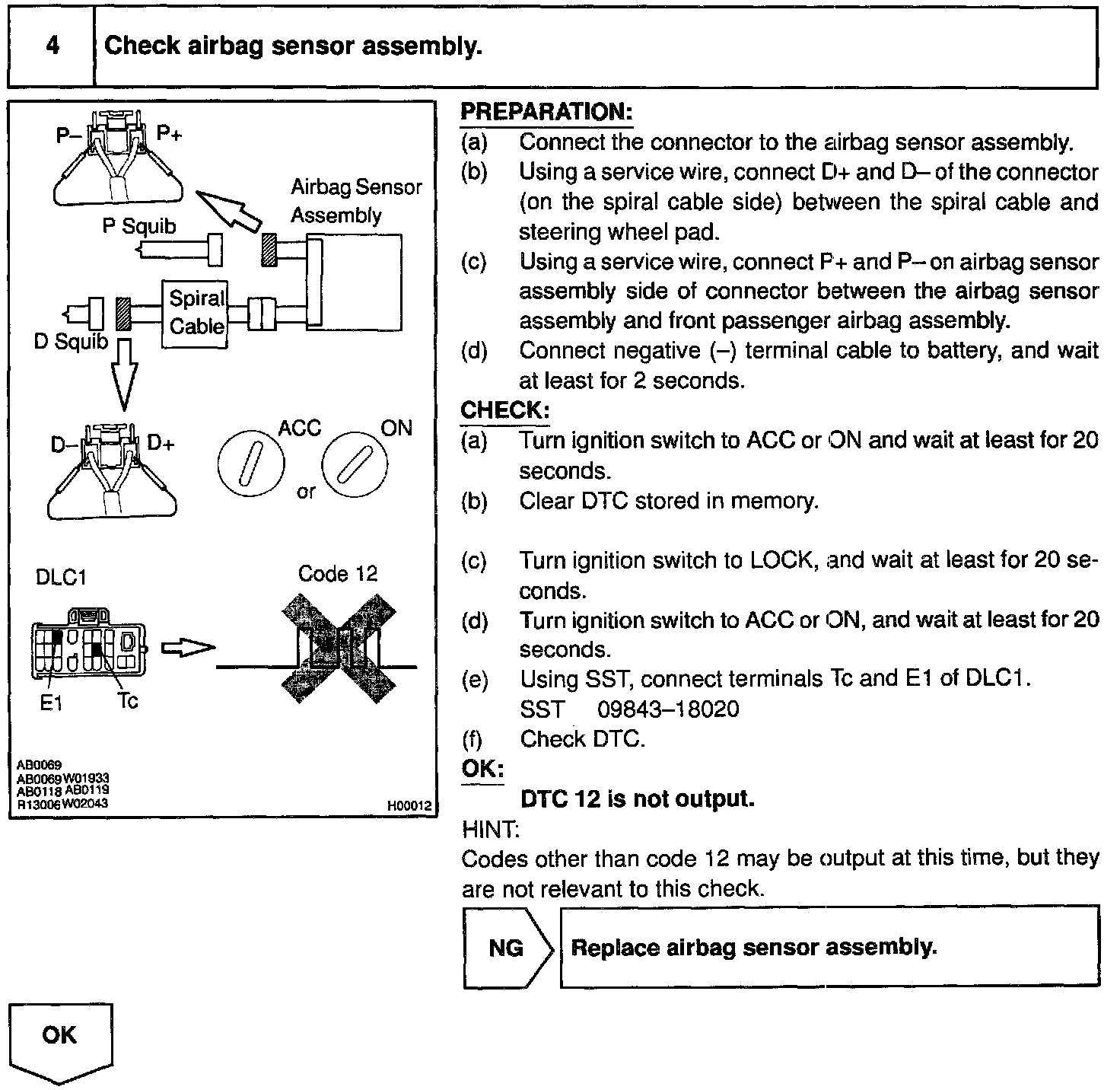

Step 4:

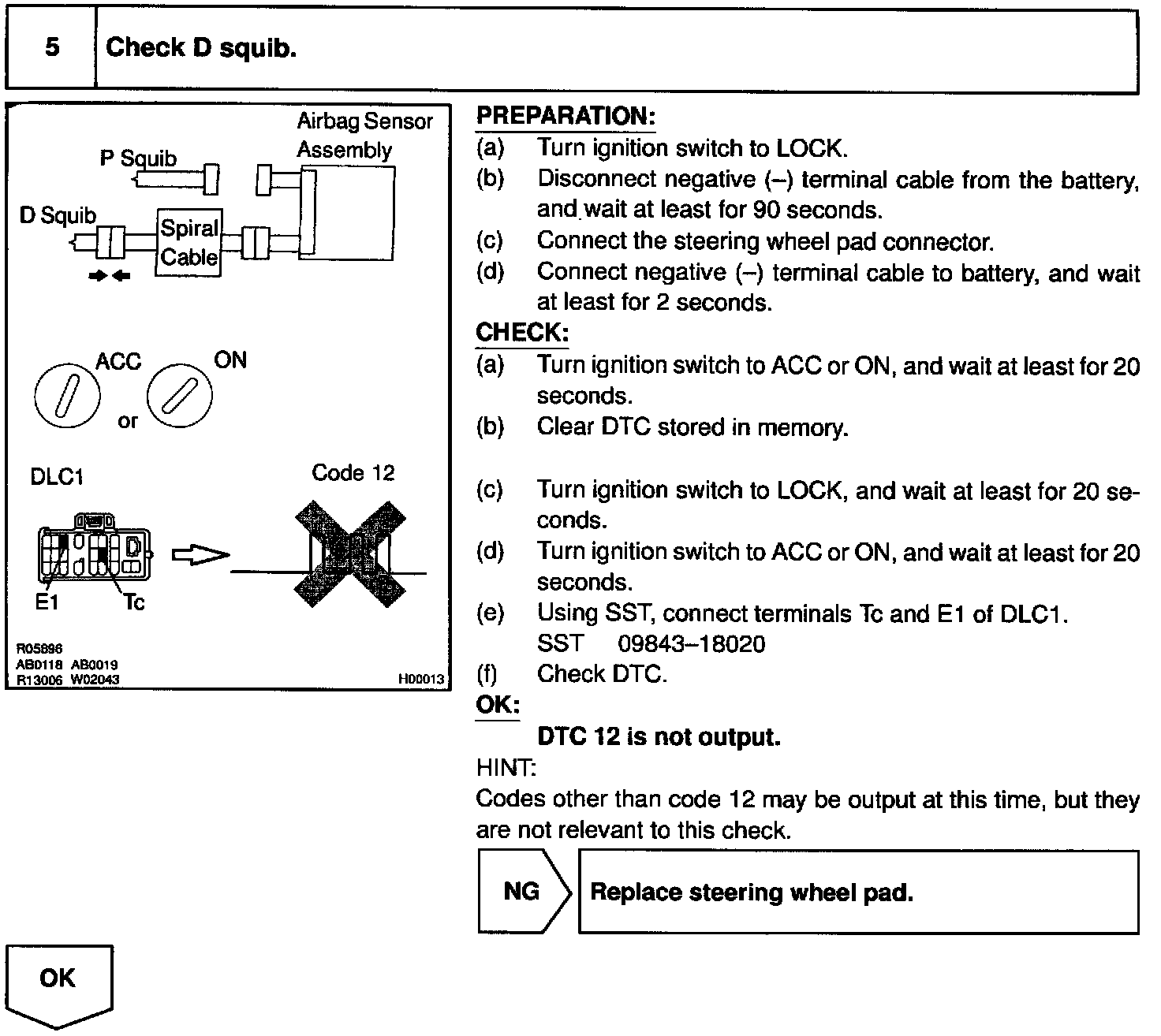

Step 5:

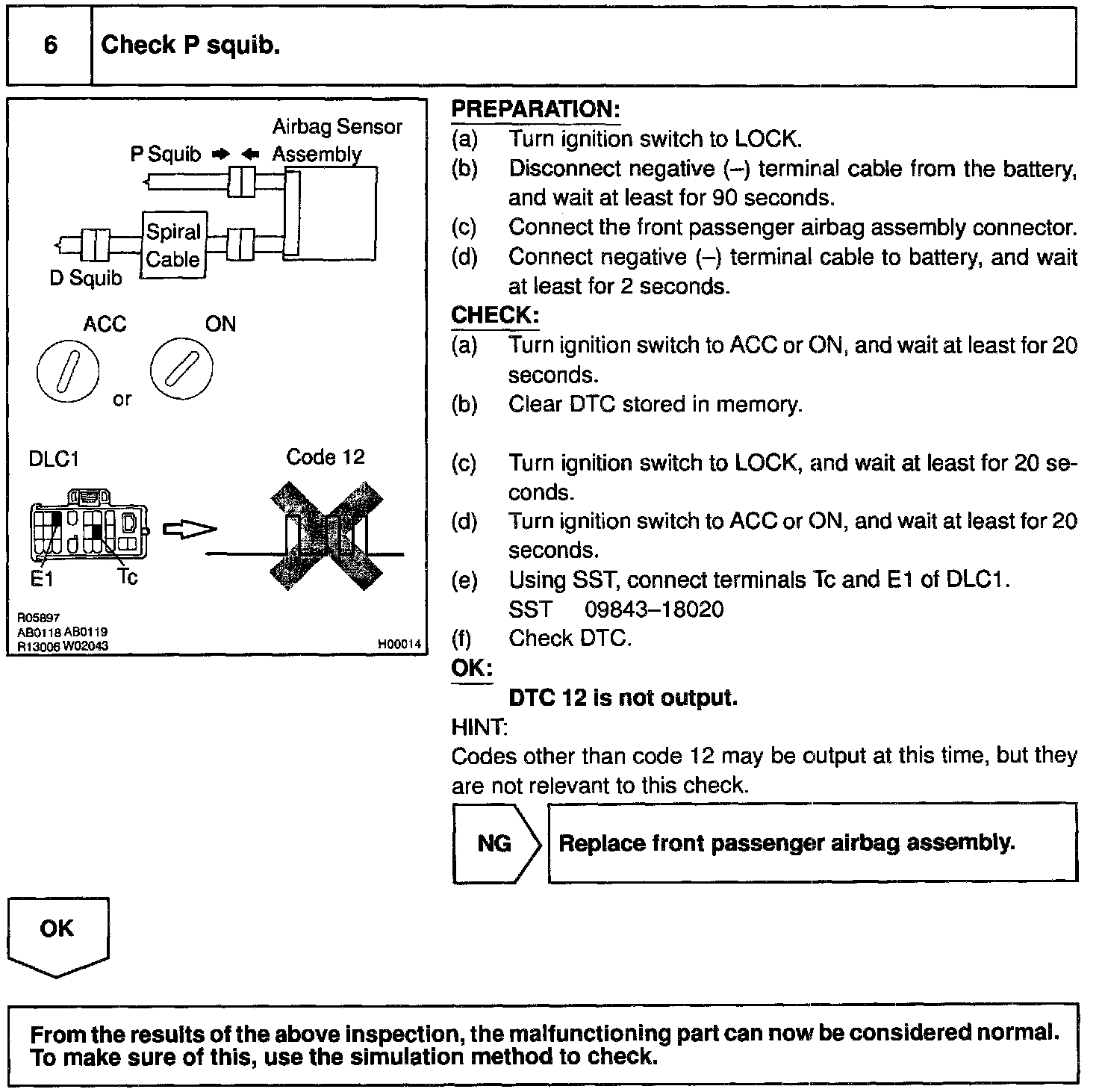

Step 6:

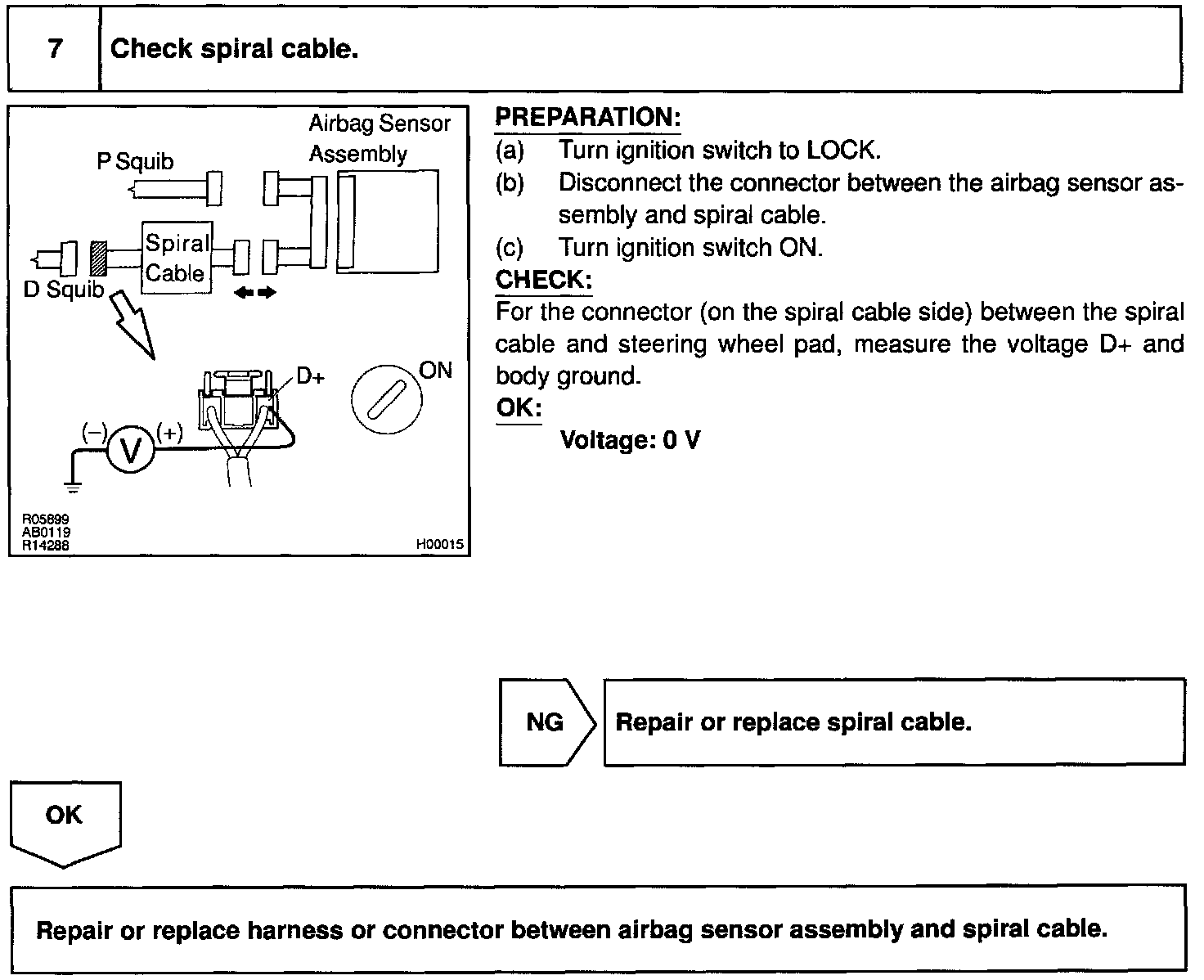

Step 7:

INSPECTION PROCEDURE
