DTC 11

DTC 11 Short in Squib Circuit (to Ground)

The squib circuit consists of the airbag sensor assembly, spiral cable, steering wheel pad and front passenger airbag assembly. It causes the SRS to deploy when the SRS deployment conditions are satisfied.
DTC II is recorded when ground short is detected in the squib circuit.

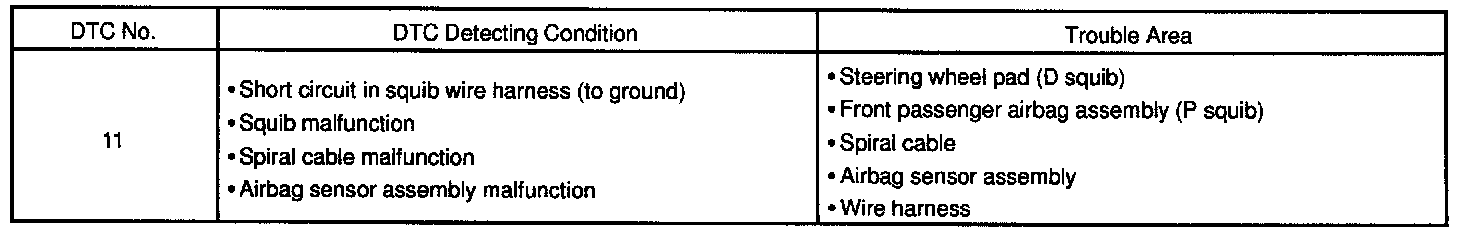

DETECTING CONDITIONS





WIRING DIAGRAM

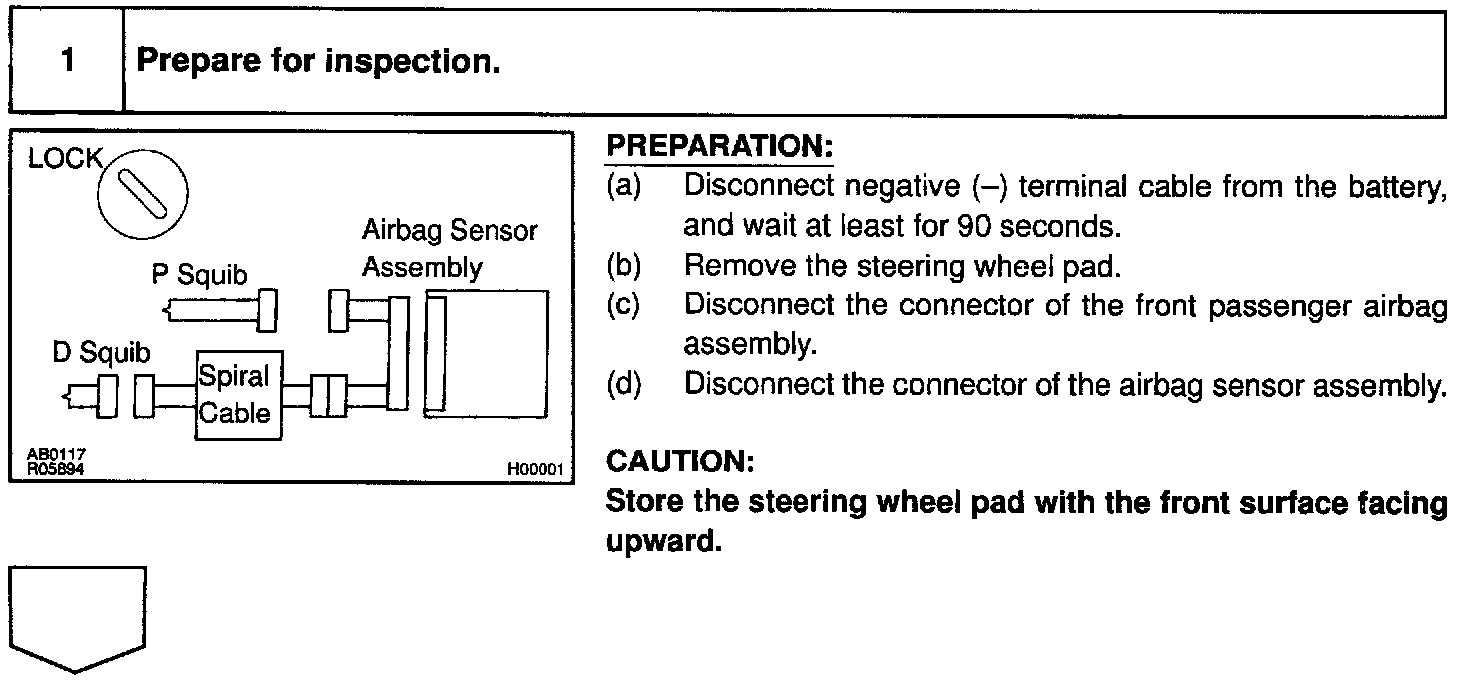

Step 1:

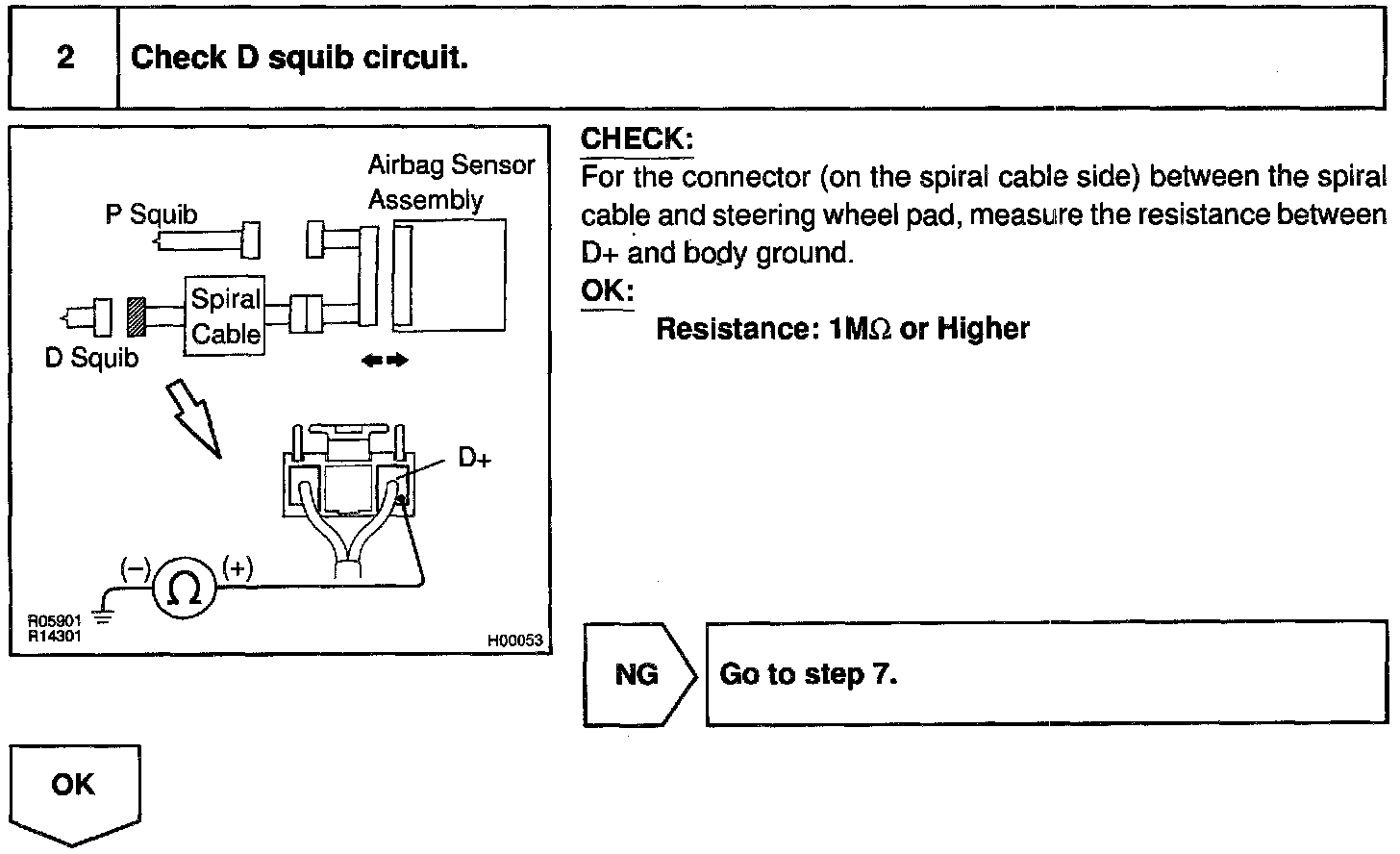

Step 2:

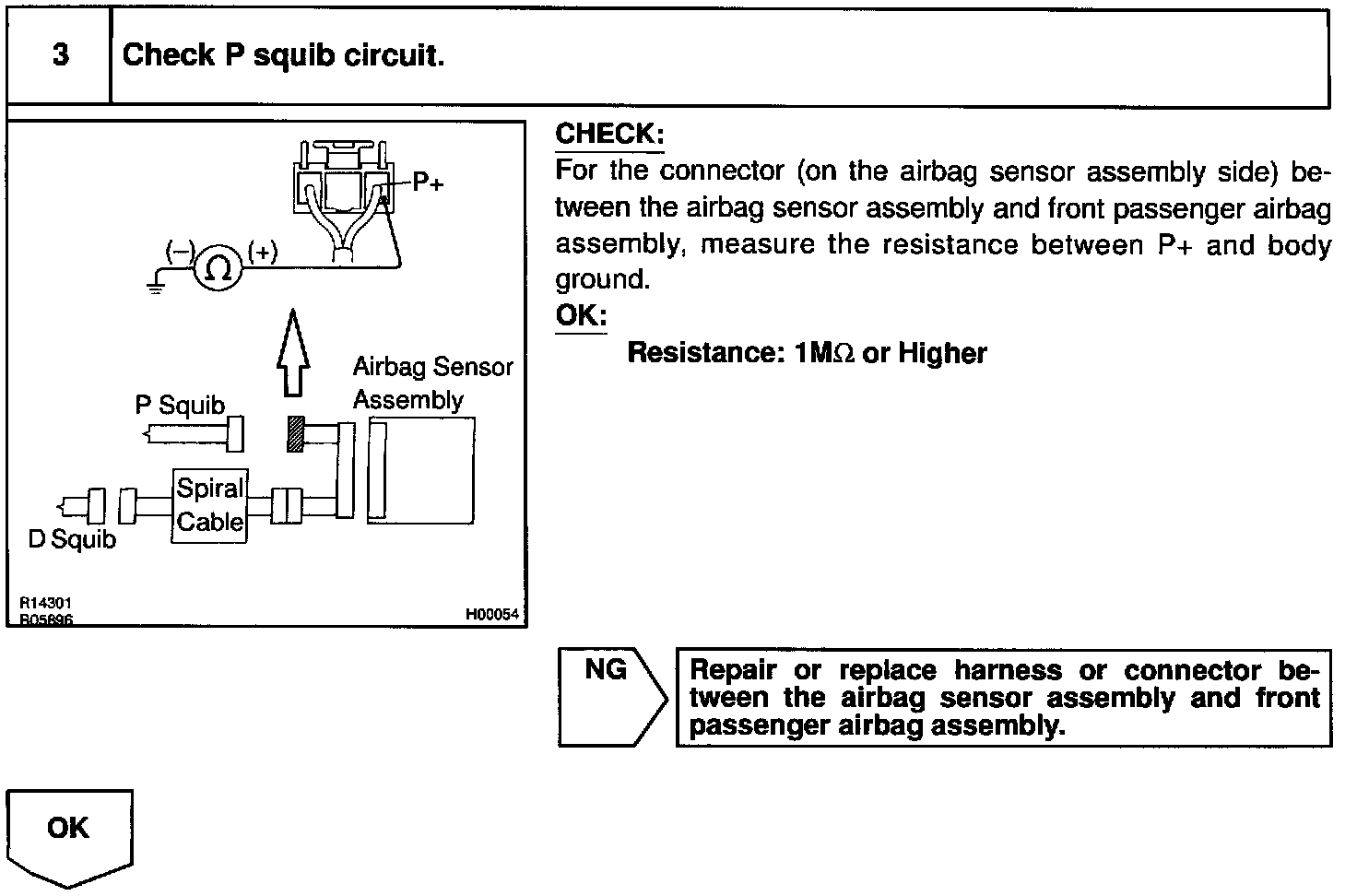

Step 3:

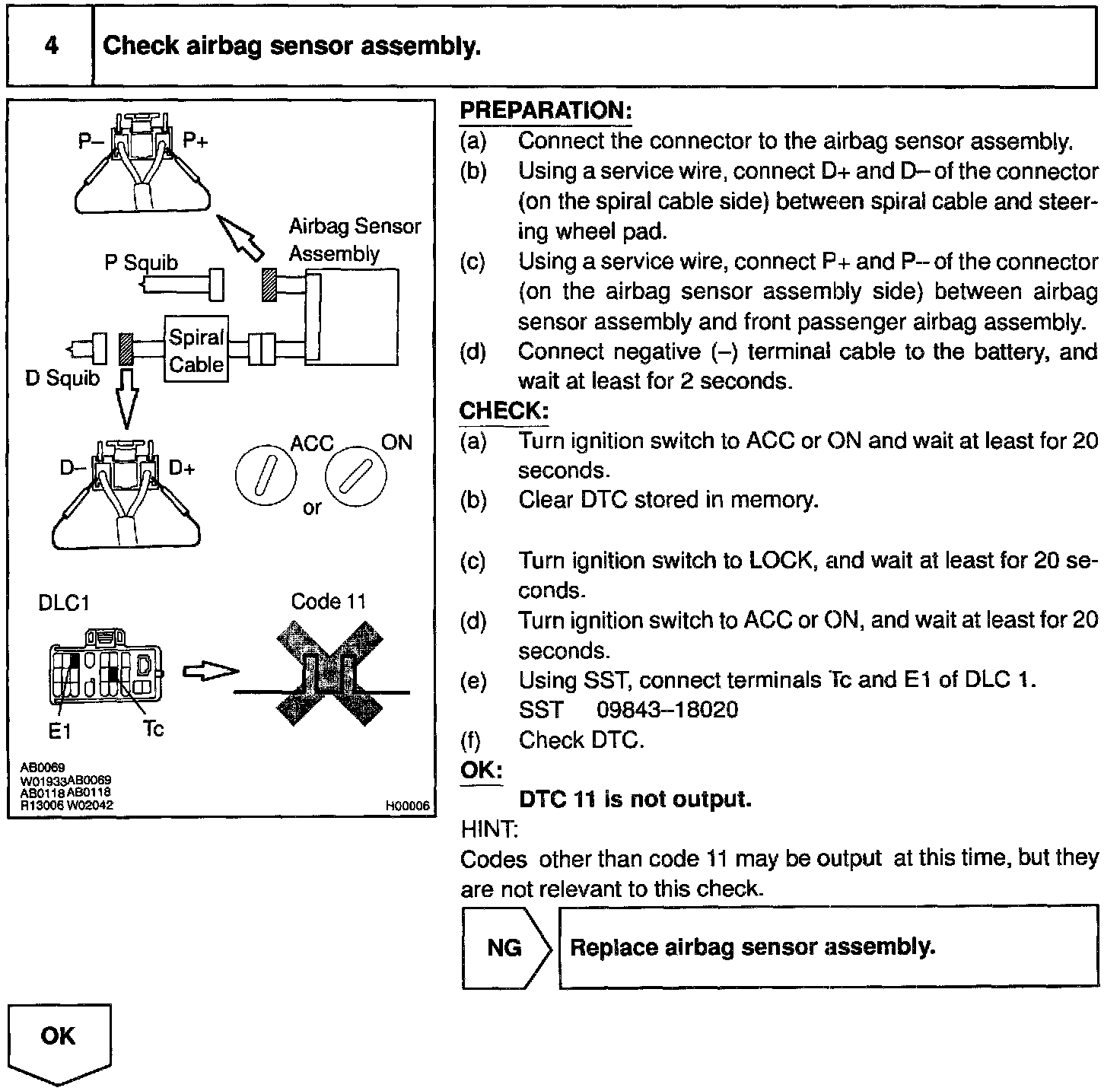

Step 4:

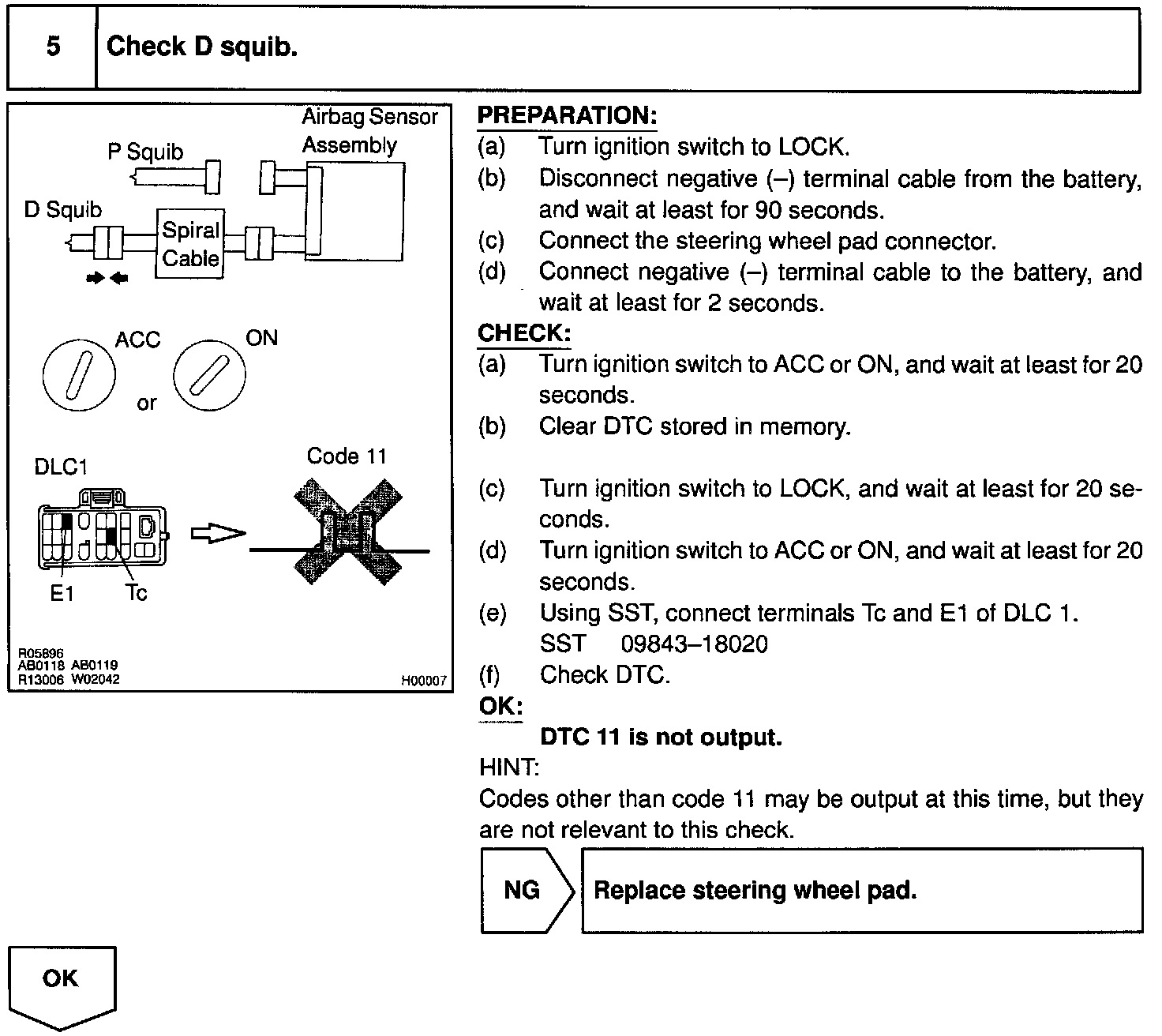

Step 5:

Step 6:

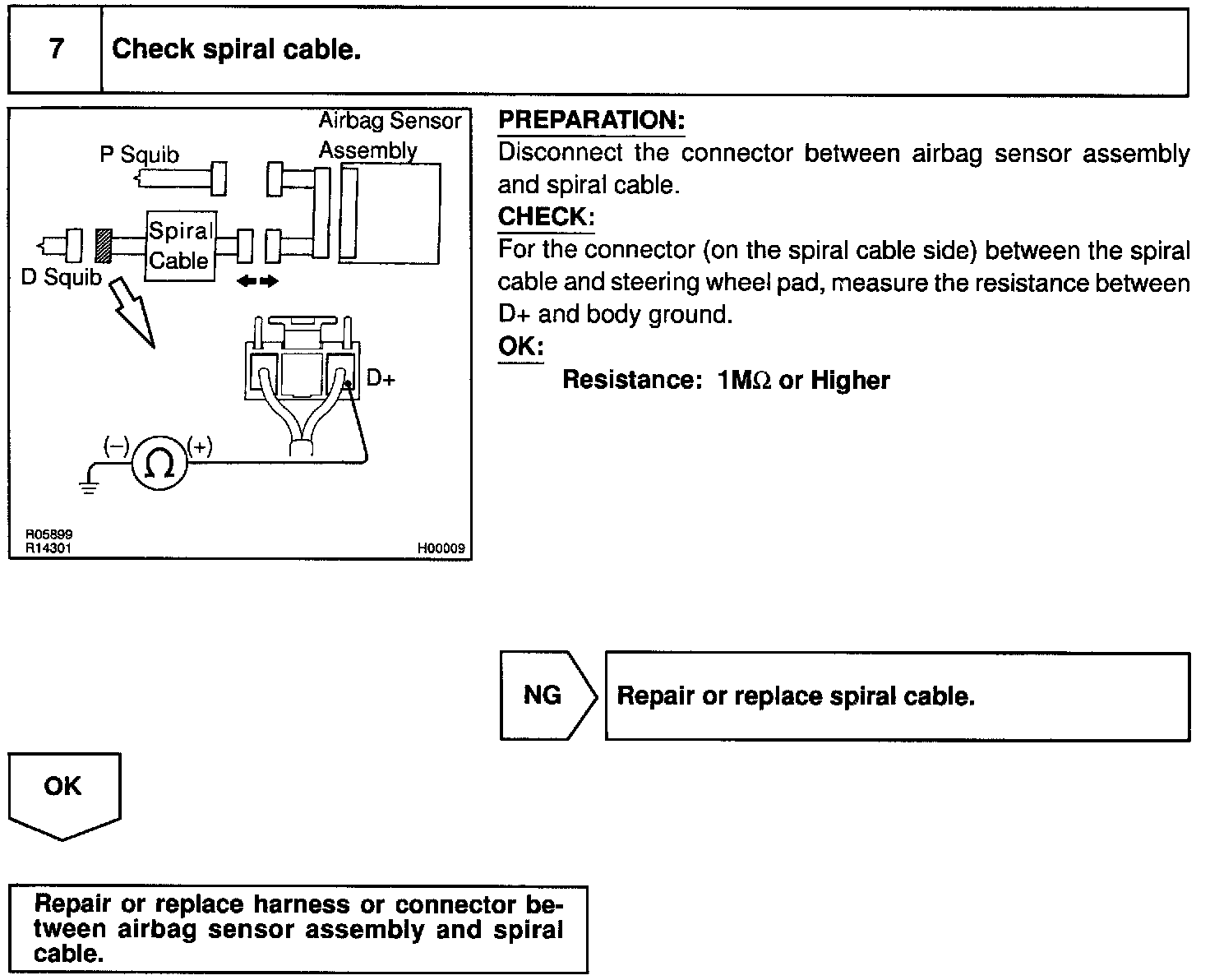

Step 7:

INSPECTION PROCEDURE
