ABS (Antilock Brake System)

NOTICE: When removing the part, turn the IG switch OFF.

HINT:
- Using SST 09843-18020, connect the terminals TC and E1, and remove the short pin.
- If any abnormality is not found when inspecting parts, inspect the ECU.

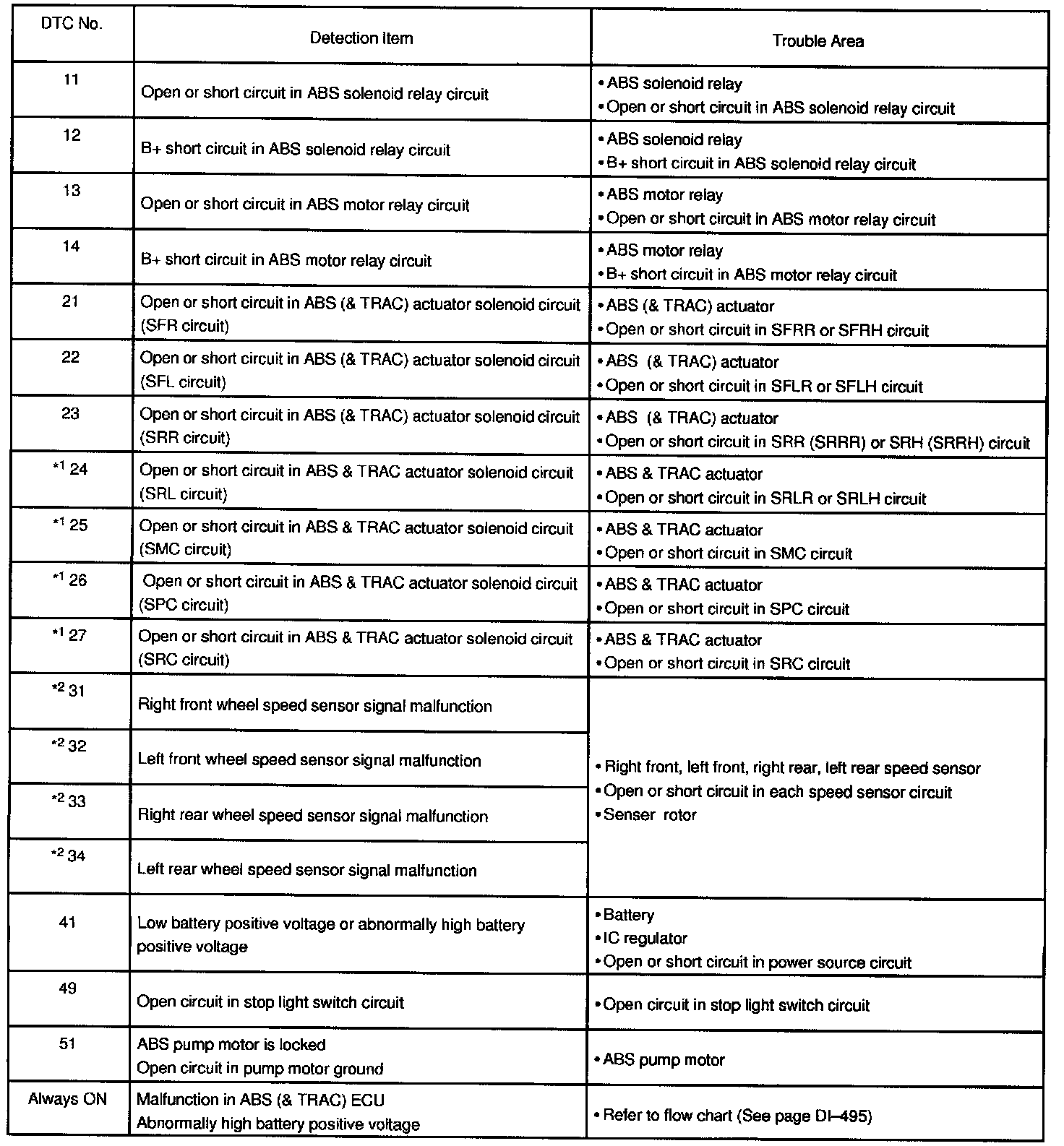

If a malfunction code is displayed during the DTC check, check the circuit listed that code.

*1: Only vehicle with TRAC
*2: As the DTC can not be erased by replacing parts alone, do either of the following operations.

(1) Clear DTC.
(2) At the vehicle speed of 20 km/h (12 mph), drive the vehicle for 30 secs. or more.
