Disposal

DISPOSAL
1. Fully extend shock absorber rod.

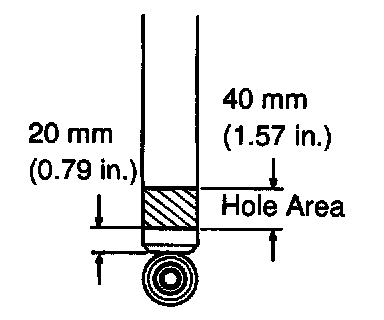

2. Drill hole to remove gas from cylinder. Make a hole in the cylinder as shown to remove the gas inside.

CAUTION: The gas coming out is harmless, but be careful of chips which may fly up when drilling.
