Scan Tool Testing and Procedures

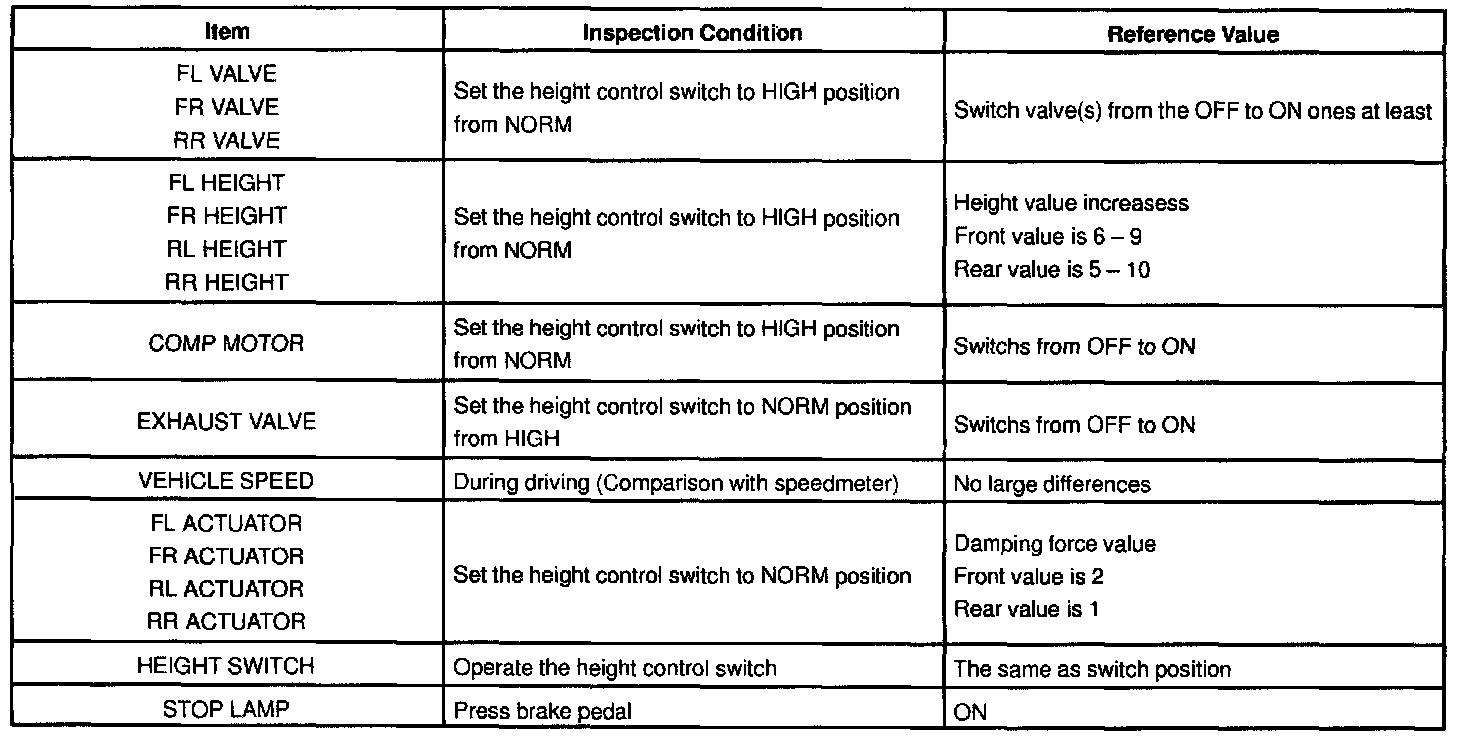

REFERENCE VALUE OF ECU DATA





(a) Hook up the LEXUS hand-held tester to the DLC2.





(b) Monitor the ECU data by following the prompts on the tester screen.
Please refer to the LEXUS hand-held tester operator's manual for more information.
