Sensor Power Source Circuit

Sensor Power Source Circuit

CIRCUIT DESCRIPTION
Power to the position sensors is output from ECU.

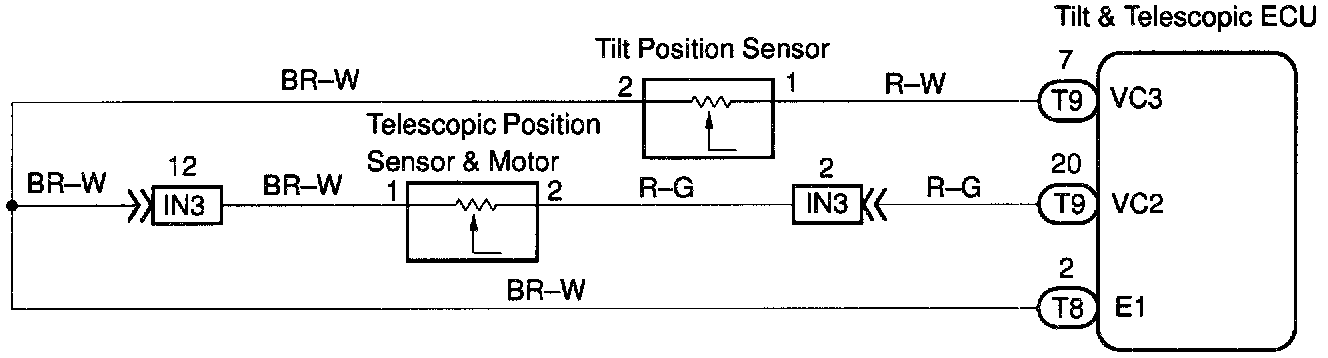

WIRING DIAGRAM

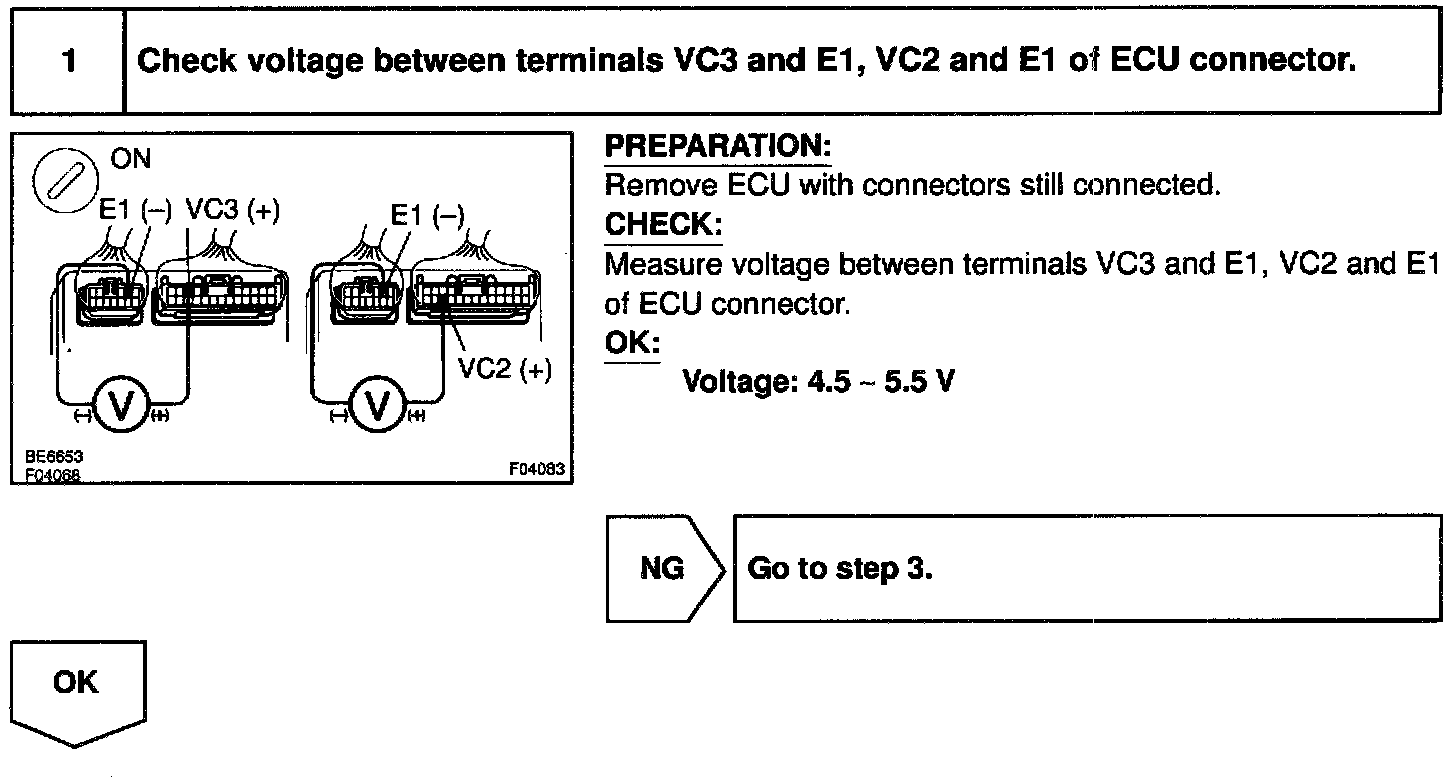

Step 1:

Step 2:

Step 3:

INSPECTION PROCEDURE
