Mirror Adjust Manual Switch Circuit


Mirror Adjust Manual Switch Circuit

CIRCUIT DESCRIPTION
The different voltage signals which are occurred by operating the adjust manual switch are sent to the tilt and telescopic ECU.

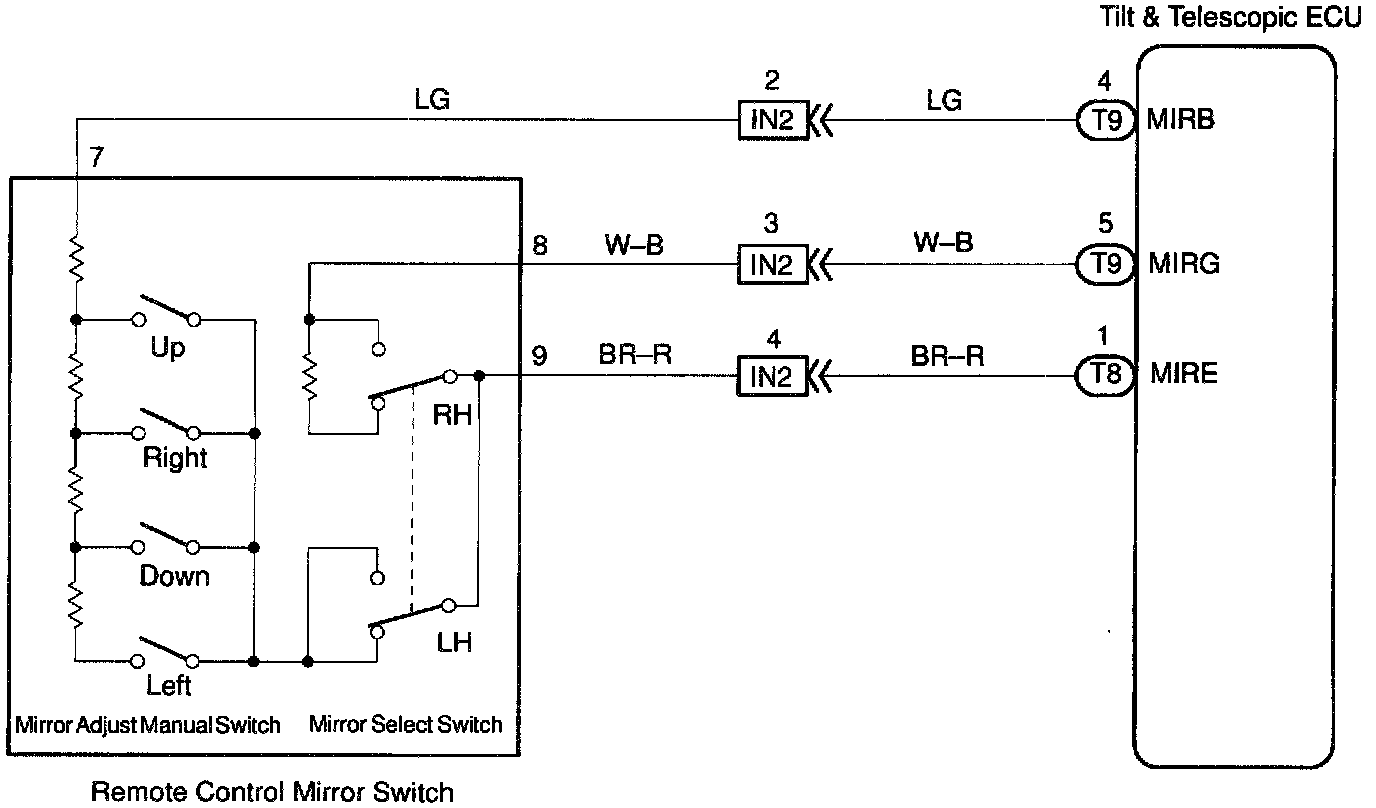

WIRING DIAGRAM

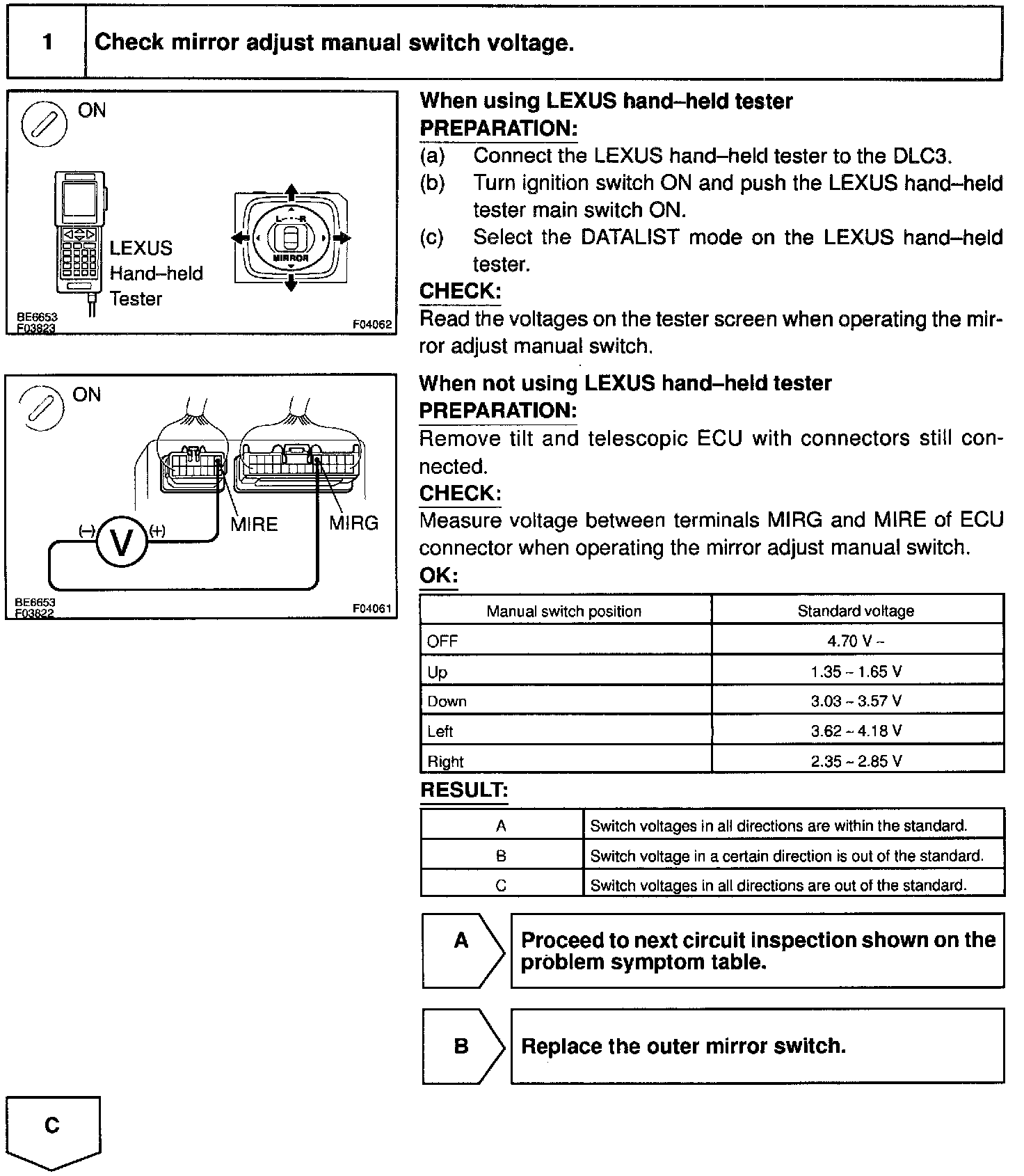

Step 1:

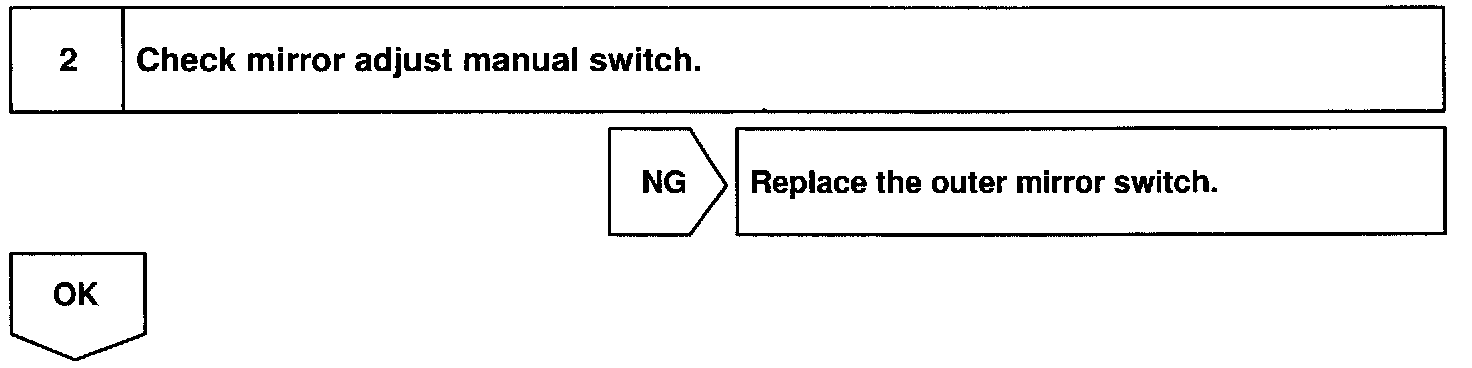

Step 2:




Step 3:





INSPECTION PROCEDURE
