Speed Sensor, Front

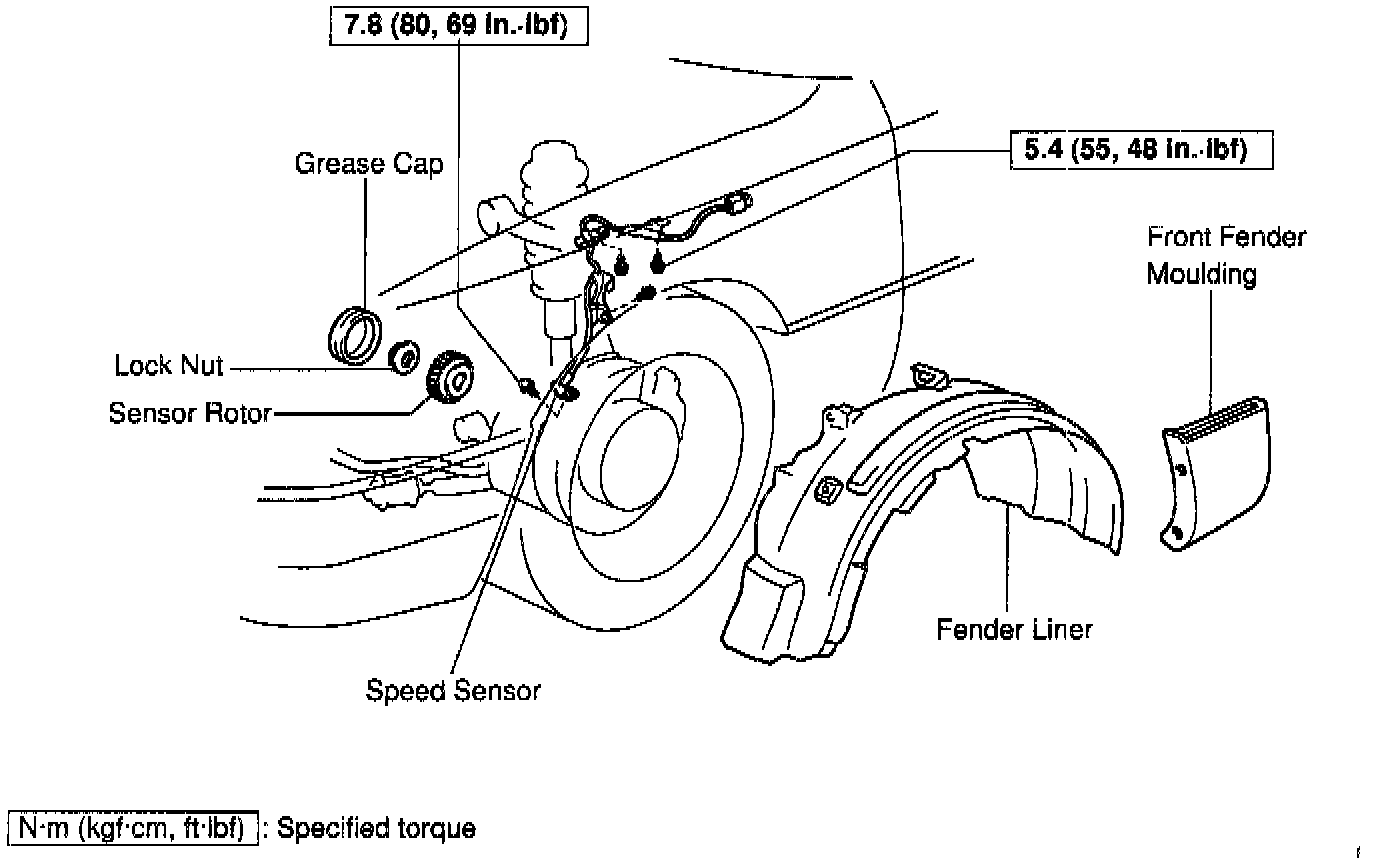

REMOVAL





1. Disconnect connector.
a. Remove the front fender moulding and fender liner.

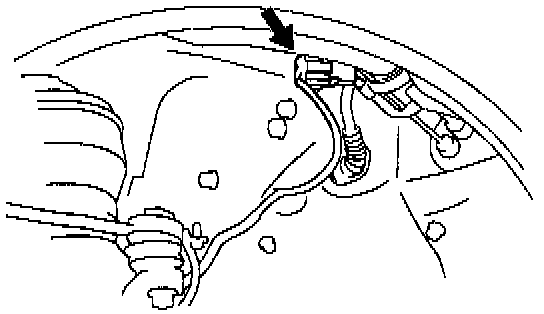

b. Disconnect the speed sensor connector.





2. Remove speed sensor.
a. Remove the 3 clamp bolts holding the sensor harness to the body and steering knuckle.
Torque: 5.4 Nm (48 inch lbs.)
b. Right wheel: Disconnect the pad wear indicator connector from the speed sensor wire harness.

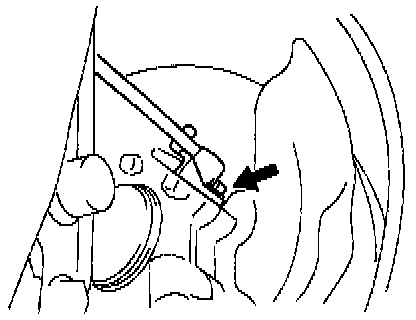

Remove the speed sensor from the steering knuckle.
Torque: 7.8 Nm (69 inch lbs.)

INSTALLATION
Installation is in the reverse order of removal .
After installation, check speed sensor signal.
