Seat Belt Reminder Lamp: Testing and Inspection

INSPECT SEAT BELT WARNING SWITCH CIRCUIT

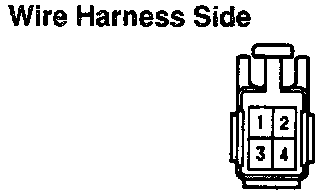

Disconnect the connector from the switch and inspect the connector on wire harness side, as shown.

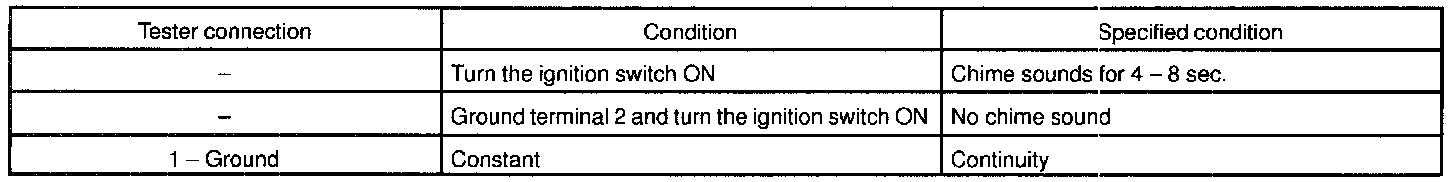

If the circuit is not as specified, inspect the circuits connected to other parts.
