Ignition Coil: Service and Repair

REMOVAL

1. REMOVE V-BANK COVER
2. REMOVE BATTERY CLAMP COVER
3. REMOVE AIR CLEANER INLET
4. REMOVE INTAKE AIR CONNECTOR

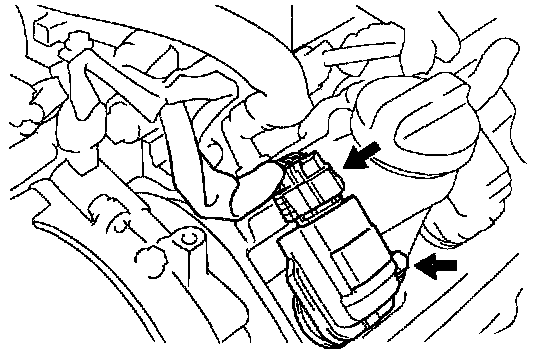

5. DISCONNECT IGNITION COIL WITH IGNITER CONNECTORS





6. REMOVE IGNITION COIL WITH IGNITERS FROM THE SPARK PLUGS
Remove the bolt.

Torque: 7.5 N.m (80 kgf.cm 69 in.lbf)

INSTALLATION
Installation is in the reverse order of removal.
