Fuel Pressure Regulator: Service and Repair

REMOVAL

1. REMOVE FUEL PUMP ASSEMBLY
2. REMOVE FUEL PRESSURE REGULATOR





(a) Remove the screw, fuel filter and fuel pressure regulator.
(b) Remove the O-rings from fuel pressure regulator and fuel filter.

INSTALLATION

1. INSTALL FUEL PRESSURE REGULATOR

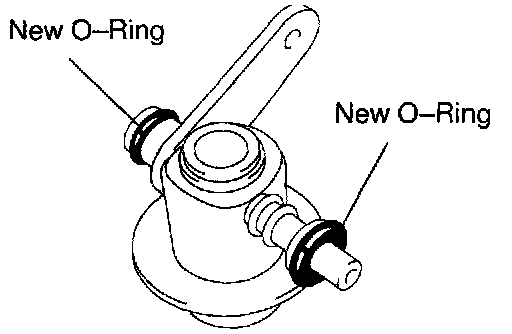

(a) Apply a light coat of gasoline to 2 new 0-rings, and install them to the pressure regulator.
(b) Insert the pressure regulator into the fuel filter by hand completely.
(c) Insert the pressure regulator and fuel filter assembly into the delivery pipe by hand completely.





(d) Install the screw.

Torque: 2.0 N.m (20 kgf.cm,. 17 in.lbf)

2. INSTALL FUEL PUMP ASSEMBLY
