Fuel Injector: Service and Repair

REMOVAL

1. REMOVE V-BANK COVER
2. REMOVE BATTERY CLAMP COVER AND AIR CLEANER INLET
3. REMOVE INTAKE AIR CONNECTOR
4. REMOVE FUEL PRESSURE PULSATION DAMPERS
5. DISCONNECT ENGINE WIRE FROM DELIVERY PIPE





(a) Disconnect the 2 wire clamps from the wire clamp bracket on the RH delivery pipe.
(b) Disconnect the 8 injector connectors.
6. DISCONNECT VVT SENSOR CONNECTORS
7. REMOVE DELIVERY PIPES AND INJECTORS

NOTICE:
- Be careful not to drop the injectors when removing the delivery pipes.
- Pay attention to put any hung load on the injector to and from the side direction.

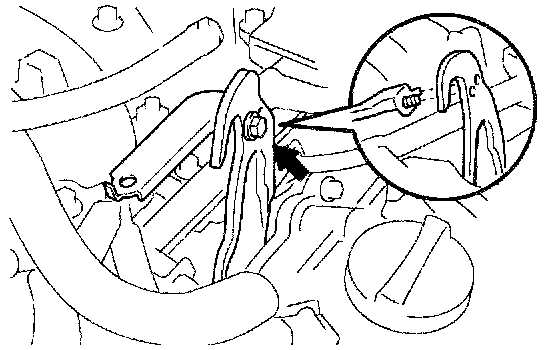

(a) Remove these parts:
- VSV for EVAP
- Accelerator cable bracket
- 3 V-bank cover brackets





(b) Remove the 4 nuts holding the delivery pipe to the intake manifold.
(c) Remove the 2 delivery pipes and 8 injectors assembly and 4 spacers.
(d) Pull out the 8 injectors from the delivery pipes.
(e) Remove the 2 O-rings, grommet and insulator from each injector.

INSTALLATION

1. INSTALL INJECTORS AND DELIVERY PIPES

NOTICE:
- Be careful not to drop the injectors when installing the delivery pipes.
- Pay attention to put any hung load on the injector to and from the side direction.





(a) Install a new grommet and new insulator to each injector.
(b) Apply a light coat of gasoline to 2 new O-rings and install them to each injector.





(c) While turning the injector clockwise and counterclockwise push it to the delivery pipes. Install the 8 injectors.

HINT: Install the injector with cover for No. 5 6, 7 and 8 cylinders.

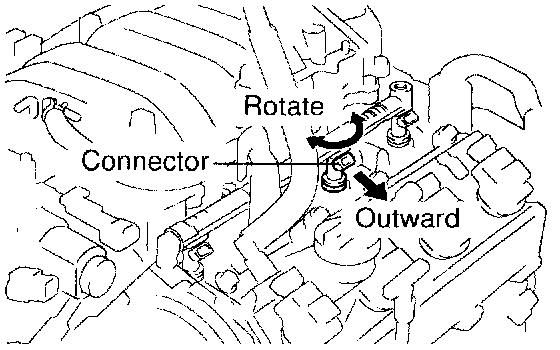

(d) Position injector connector outward.





(e) Place the 4 spacers on the intake manifold.
(f) Place the 8 injectors and 2 delivery pipes assembly in position on the intake manifold.





(g) Temporarily install the 4 nuts.





(h) Check that the injectors rotate smoothly.

HINT: If injectors do not rotate smoothly, the probable cause is incorrect installation of O-rings. Replace the O-rings.

(i) Position injector connector outward.
(j) Tighten the 4 nuts holding the delivery pipes to the intake manifold.

Torque: 18 N.m (185 kgf.cm, 13 ft.lbf)

(k) Install these parts:





- VSV for EVAP

Torque: 18 N.m (185 kgf.cm, 13 ft.lbf)

- Accelerator cable bracket

Torque: 18 N.m (185 kgf.cm, 13 ft.lbf)





- RH rear V-bank cover bracket

Torque: 7.5 N.m (80 kgf.cm, 69 in.lbf)





- LH front V-bank cover bracket

Torque: 7.5 N.m (80 kgf.cm, 69 in.lbf)





- LH rear V-bank cover bracket with noise filter

Torque: 7.5 N.m (80 kgf.cm, 69 in.lbf)

2. CONNECT ENGINE WIRE TO DELIVERY PIPE
(a) Connect the 8 injector connectors.





(b) Connect the 2 wire clamps to the wire clamp bracket on the RH delivery pipe.

3. INSTALL FUEL PRESSURE PULSATION DAMPER
4. INSTALL INTAKE AIR CONNECTOR
5. INSTALL AIR CLEANER INLET AND BATTERY CLAMP COVER
6. INSTALL V-BANK COVER
