Instrument Panel Junction Block









FUSE CIRCUIT
Remove The fuse from the junction block and inspect the connector on junction block side.

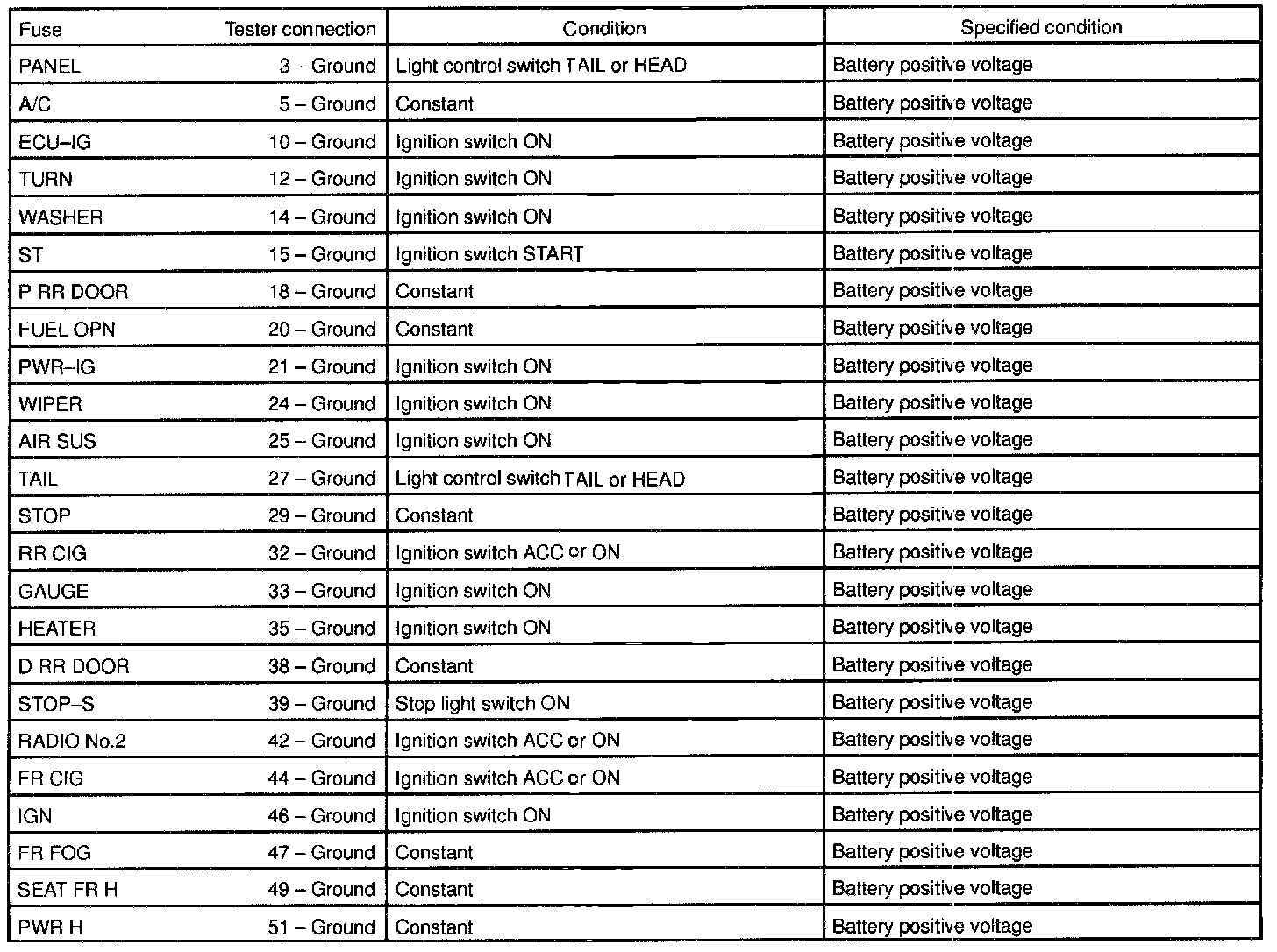

Connect numbers are shown in the illustration.
