Home >> Lexus >> 1998 >> LS 400 V8-4.0L (1UZ-FE) >> Repair and Diagnosis >> Instrument Panel, Gauges and Warning Indicators >> Odometer >> Testing and Inspection

Odometer: Testing and Inspection

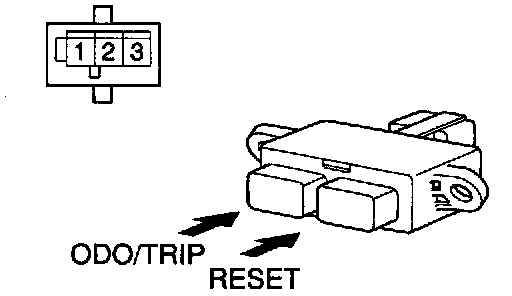

INSPECT TWIN TRIP AND ODO SWITCH CONTINUITY

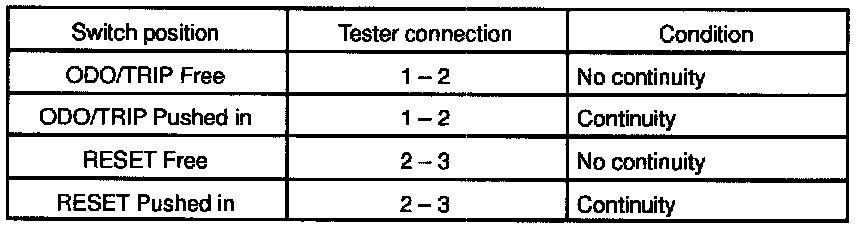

If continuity is not as specified, replace the twin trip and odo switch.
