Air Vent Mode Damper Control Servomotor Circuit

Air Vent Mode Damper Control Servomotor Circuit

CIRCUIT DESCRIPTION
This circuit turns the servomotor and changes each mode damper position by the signals from the A/C control assembly When the AUTO switch is ON, the A/C control assembly changes the mode automatically between FACE, BI-LEVEL and FOOT according to the temperature setting.





WIRING DIAGRAM

Step 1:

Step 2:

Step 3:

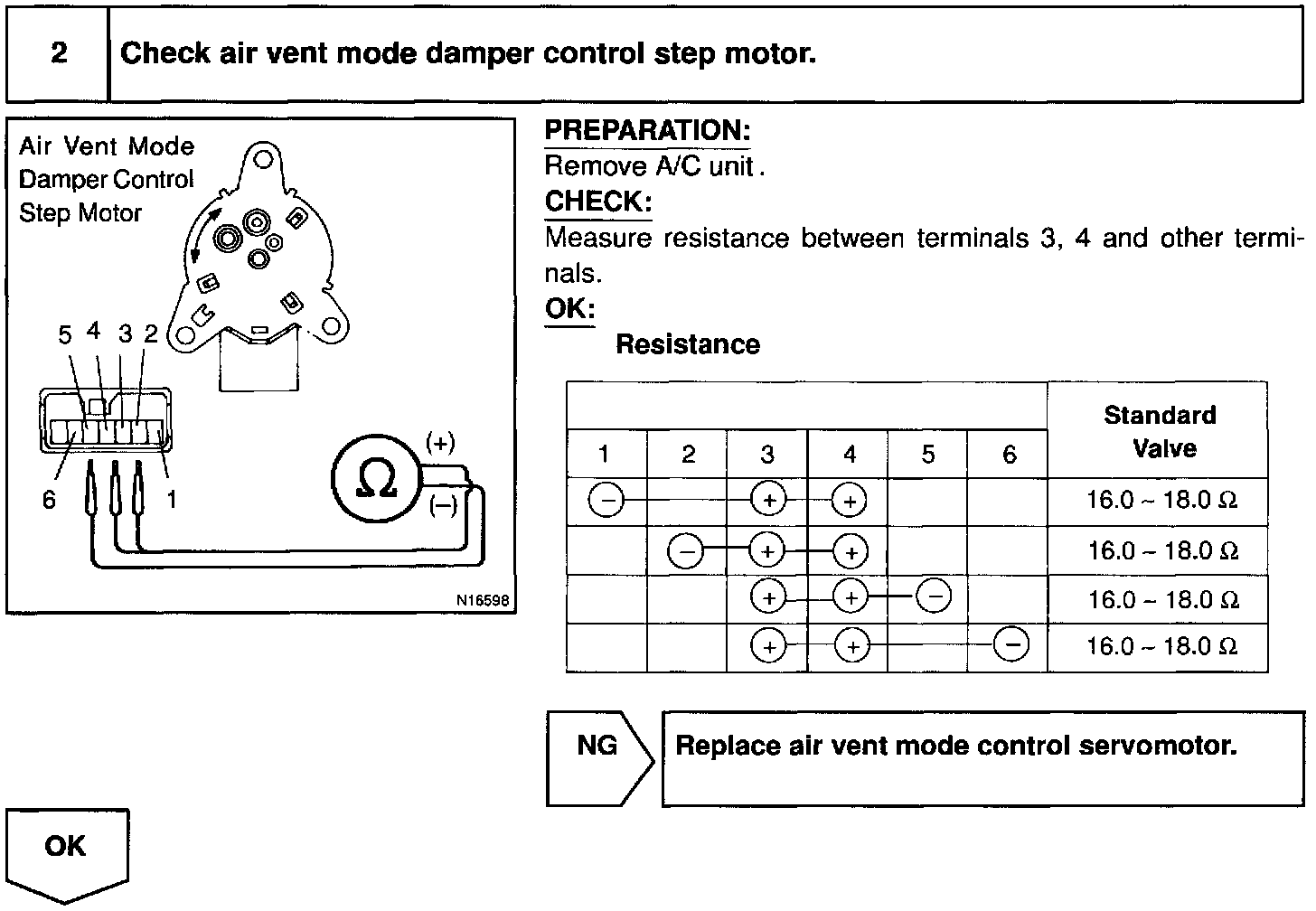

INSPECTION PROCEDURE
