Air Mix Damper Control Servomotor Circuit

Air Mix Damper Control Servomotor Circuit

CIRCUIT DESCRIPTION
This circuit turns the servomotor and changes each mode damper position by the signals from the A/C control assembly. When the AUTO switch is ON, the air mix damper changes automatically.





WIRING DIAGRAM

Step 1:

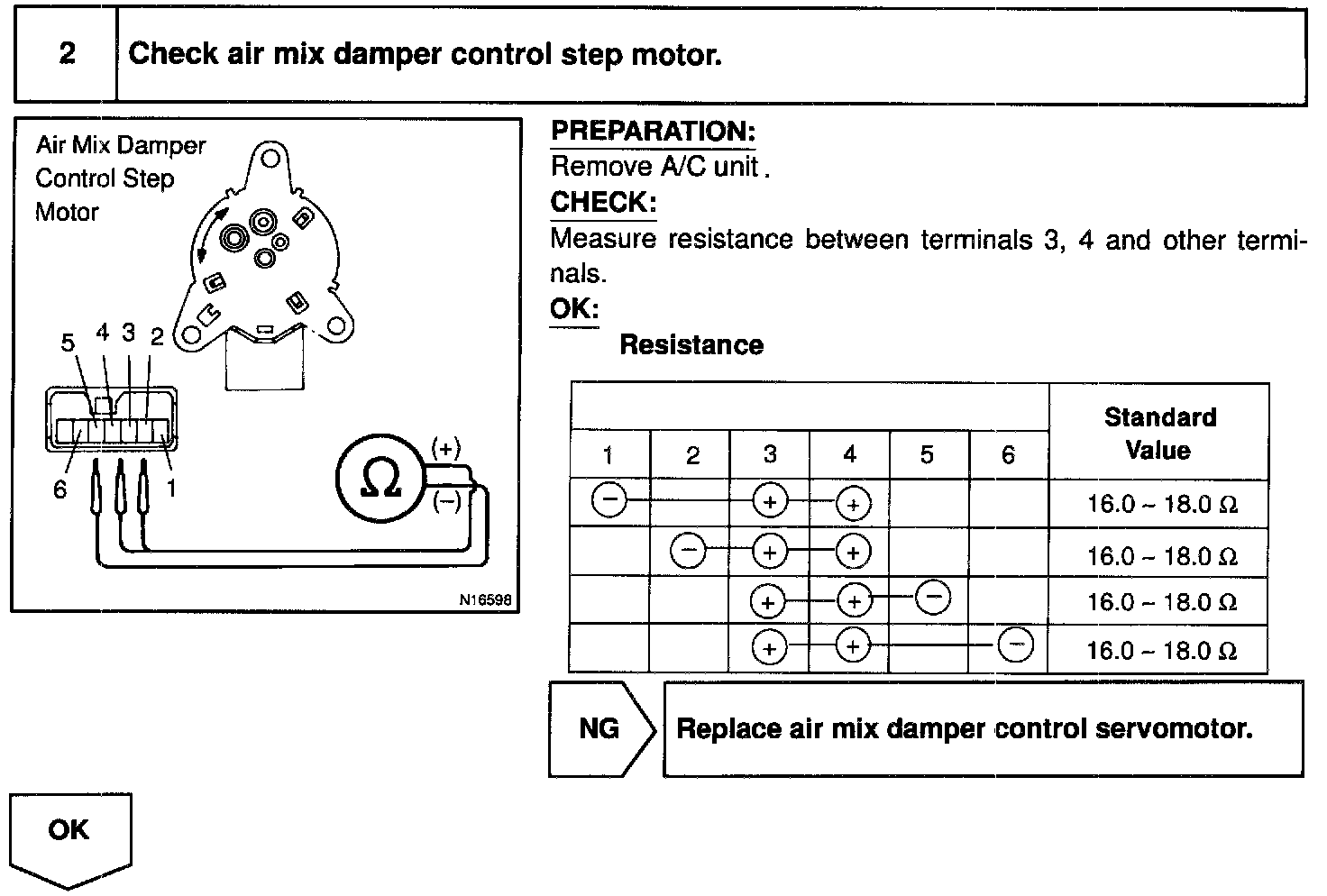

Step 2:

Step 3:

INSPECTION PROCEDURE
