VSC Buzzer Circuit

VSC Buzzer Circuit

CIRCUIT DESCRIPTION
The VSC buzzer sounds during VSC operation.

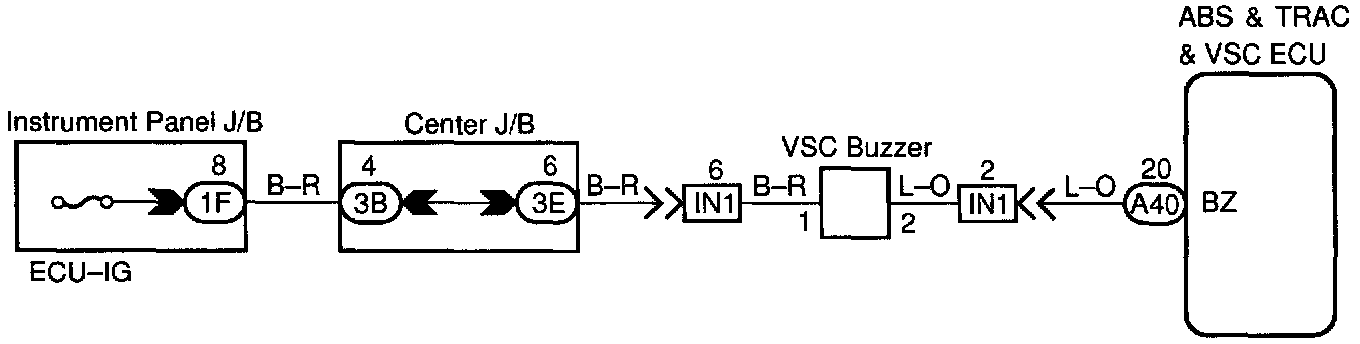

WIRING DIAGRAM

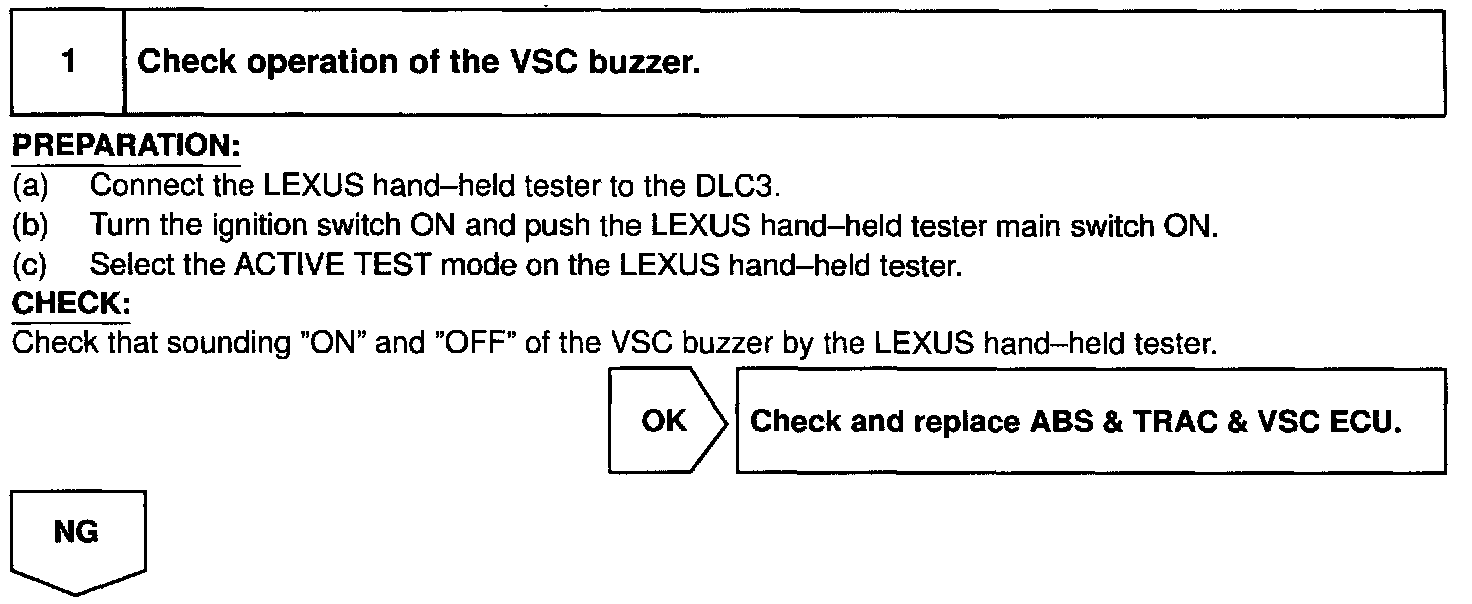

Step 1:

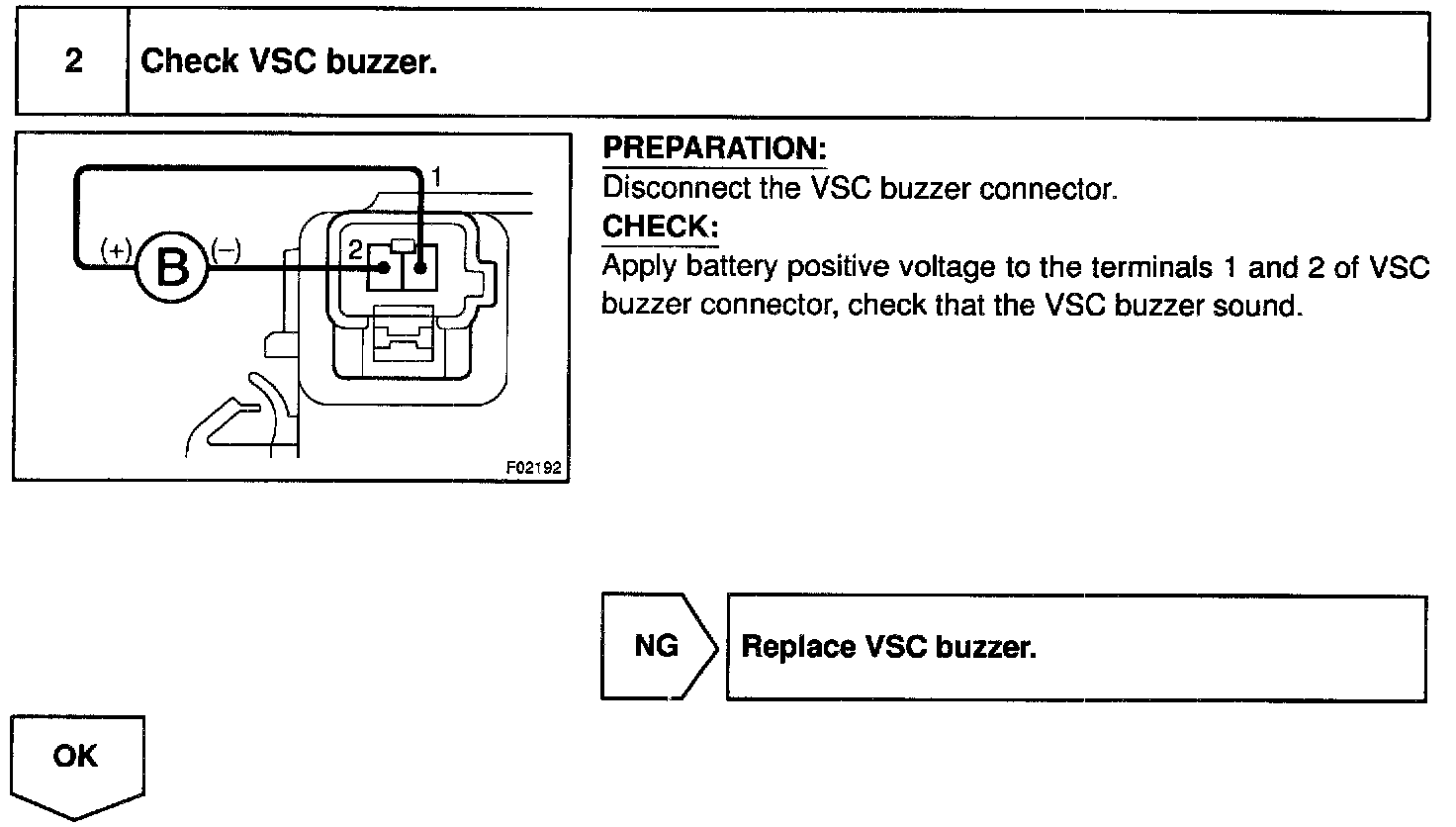

Step 2:

Step 3:

INSPECTION PROCEDURE
In case of using the LEXUS hand-held tester, start the inspection from step 1 and in case of not using the LEXUS hand-held tester, start from step 2.
