Component Inspection

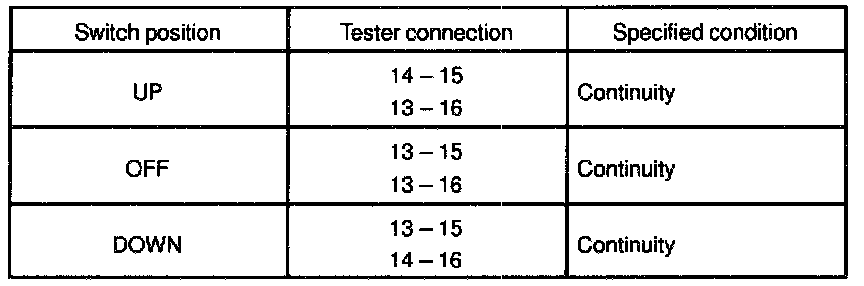

INSPECT POWER SEAT SWITCH CONTINUITY




SLIDE SWITCH




FRONT VERTICAL SWITCH




REAR VERTICAL SWITCH







RECLINING SWITCH




HEADREST SWITCH

If continuity is not as specified, replace the switch.

INSPECT POWER SEAT SWITCH CIRCUIT
a. Disconnect the switch connector and connect the seat wire harness to the floor wire harness.

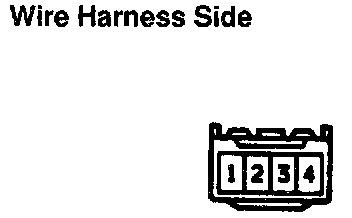

b. Inspect the connector on the wire harness side, as shown.
If circuit is not as specified, inspect the circuits connected to other parts.

INSPECT LUMBAR SUPPORT SWITCH CONTINUITY







If continuity is not as specified, replace the switch.

INSPECT LUMBAR SUPPORT SWITCH CIRCUIT
a. Disconnect the switch connector and connect the seal wire harness to the floor wire harness.




b. Inspect the connector on the wire harness side, as shown.




If circuit is not as specified, inspect the circuits connected to other parts.
