Navigation Display - Precautions When Replacing
ELECTRICALEL003-98
FEBRUARY 13, 1998
TITLE:
PRECAUTION FOR REPLACING THE NAVIGATION DISPLAY
MODELS:
'98 LS 400
Introduction
Early production 1998 LS 400 Navigation Display units may have spacers on the mounting brackets, (P/N 86211-50030 = Rand P/N 86212-50030 = L) that are not needed for replacement units.
Affected Vehicles
1998 LS 400s produced before VIN JT8BH28F*W103512.
Parts Information
OLD PART NUMBER NEW PART NUMBER PART NAME
86211-50030 Same Bracket, Radio Receiver, Right Hand
86212-50030 Same Bracket, Radio Receiver, Left Hand
Repair Procedure

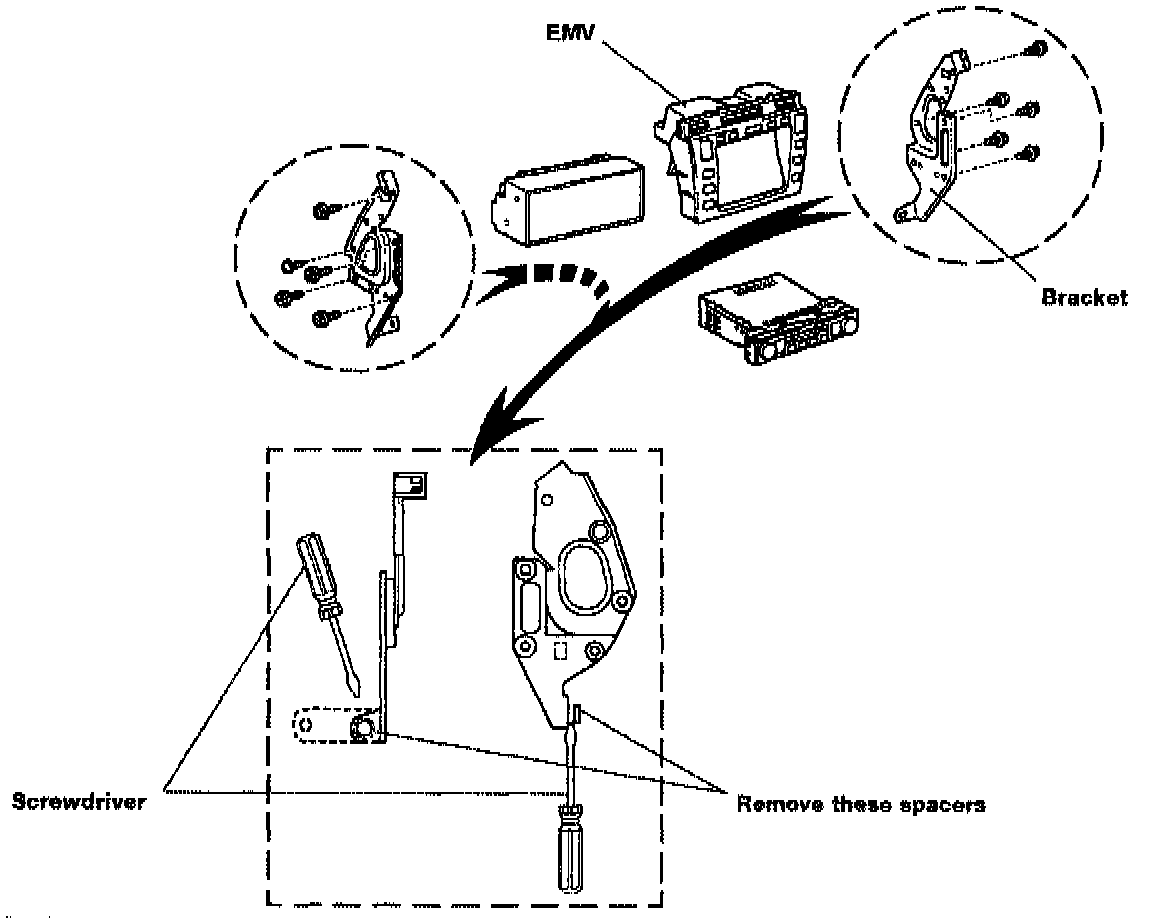

When replacing the Navigation Display unit, remove the spacer located at the bottom of each bracket. The two spacers are fixed by a double sided tape and should be removed by using a screwdriver or a scraper tool. The spacer locations are shown in the diagram:

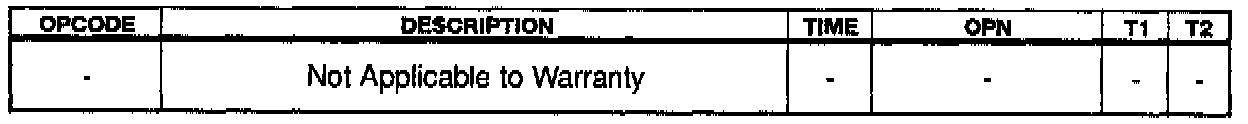

Warranty Information
