Troubleshooting

DTC P0768 Shift Solenoid D Electrical Malfunction (Shift Solenoid Valve No.4)

CIRCUIT DESCRIPTION
Shift solenoid valve No.4 is controlled by ECM and it switches ON and OFF of the O/D direct switch.

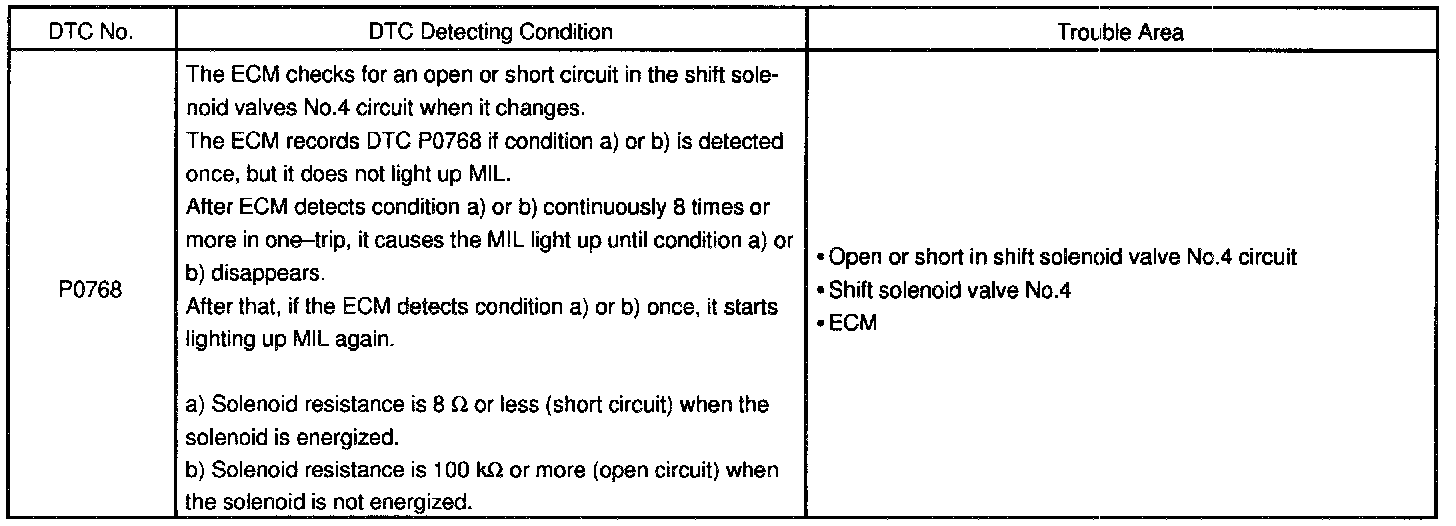

DETECTING CONDITIONS





WIRING DIAGRAM

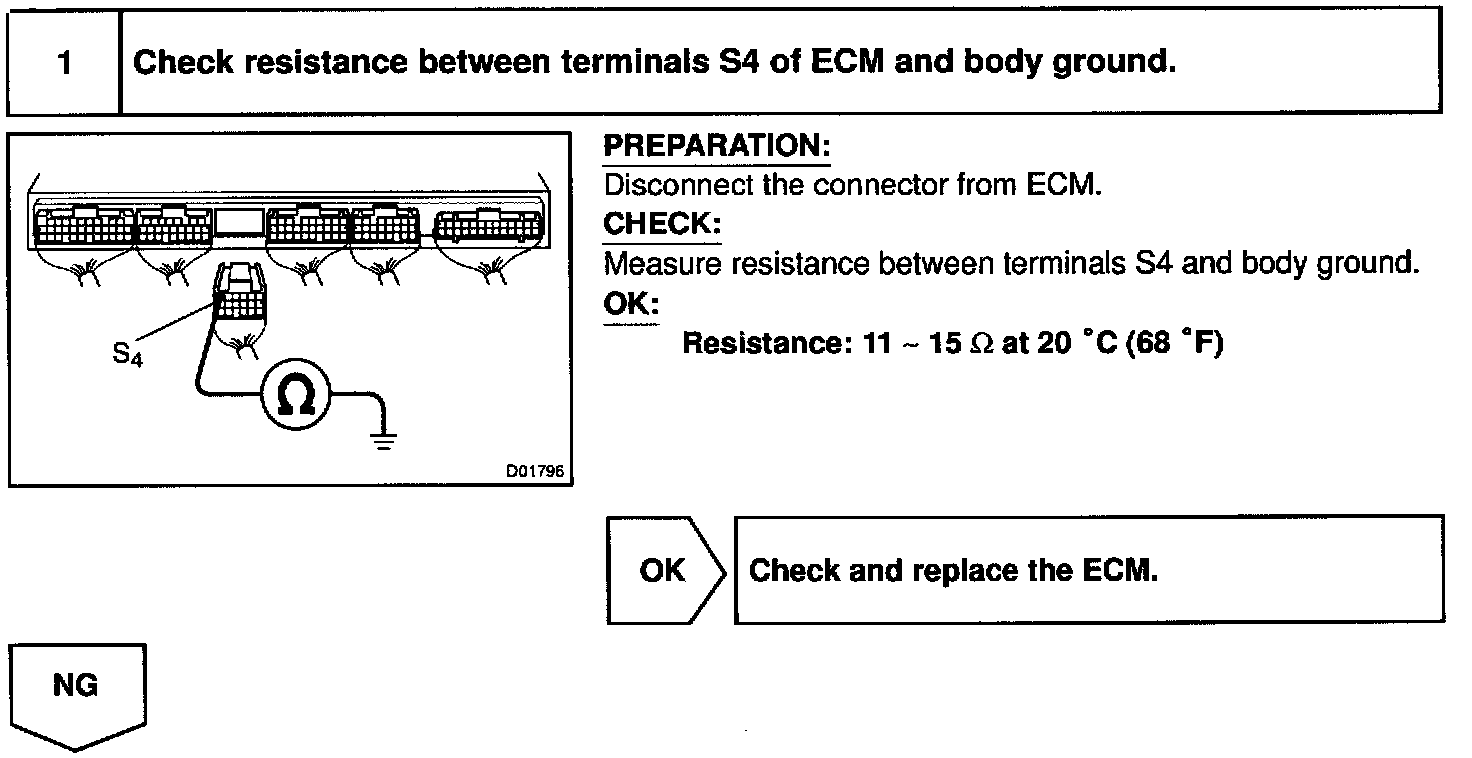

Step 1:

Step 2:

Step 3:

INSPECTION PROCEDURE
