DTC 85

DTC 85 Vehicle Speed Sensor Circuit





CIRCUIT DESCRIPTION

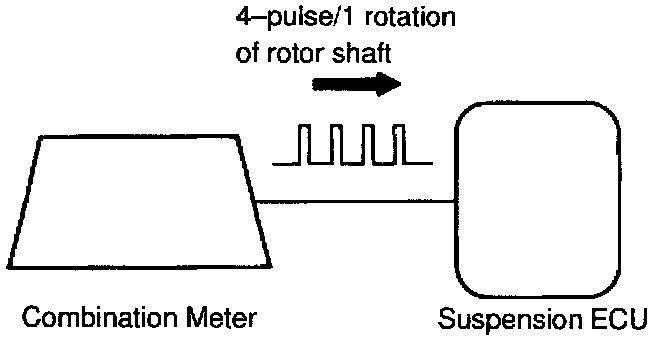

The ABS speed sensor detects the wheel speed sends the appropriate signals to the VSC ECU. VSC ECU outputs the signal to the combination meter from the ABS speed sensor. This signal is converted into pulse inside the meter and sent as a 4-pulse signal to the suspension ECU. The ECU calculates the vehicle speed from this pulse frequency.





DETECTING CONDITIONS





WIRING DIAGRAM

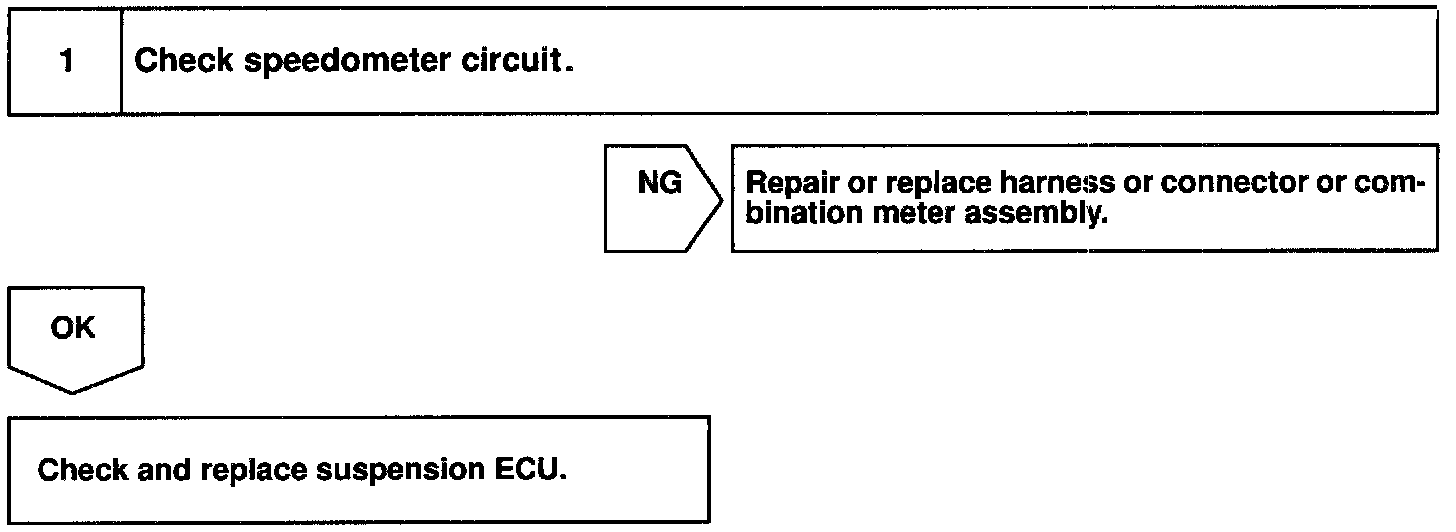

Step 1:

INSPECTION PROCEDURE
