DTC 82

DTC 82 Stop Light Switch Circuit

CIRCUIT DESCRIPTION
When the brake pedal is depressed the stop light switch comes on and battery positive voltage is applied to terminal STP of ECU. This signal is used by the ECU as one of the starting conditions for anti-dive control.





DETECTING CONDITIONS

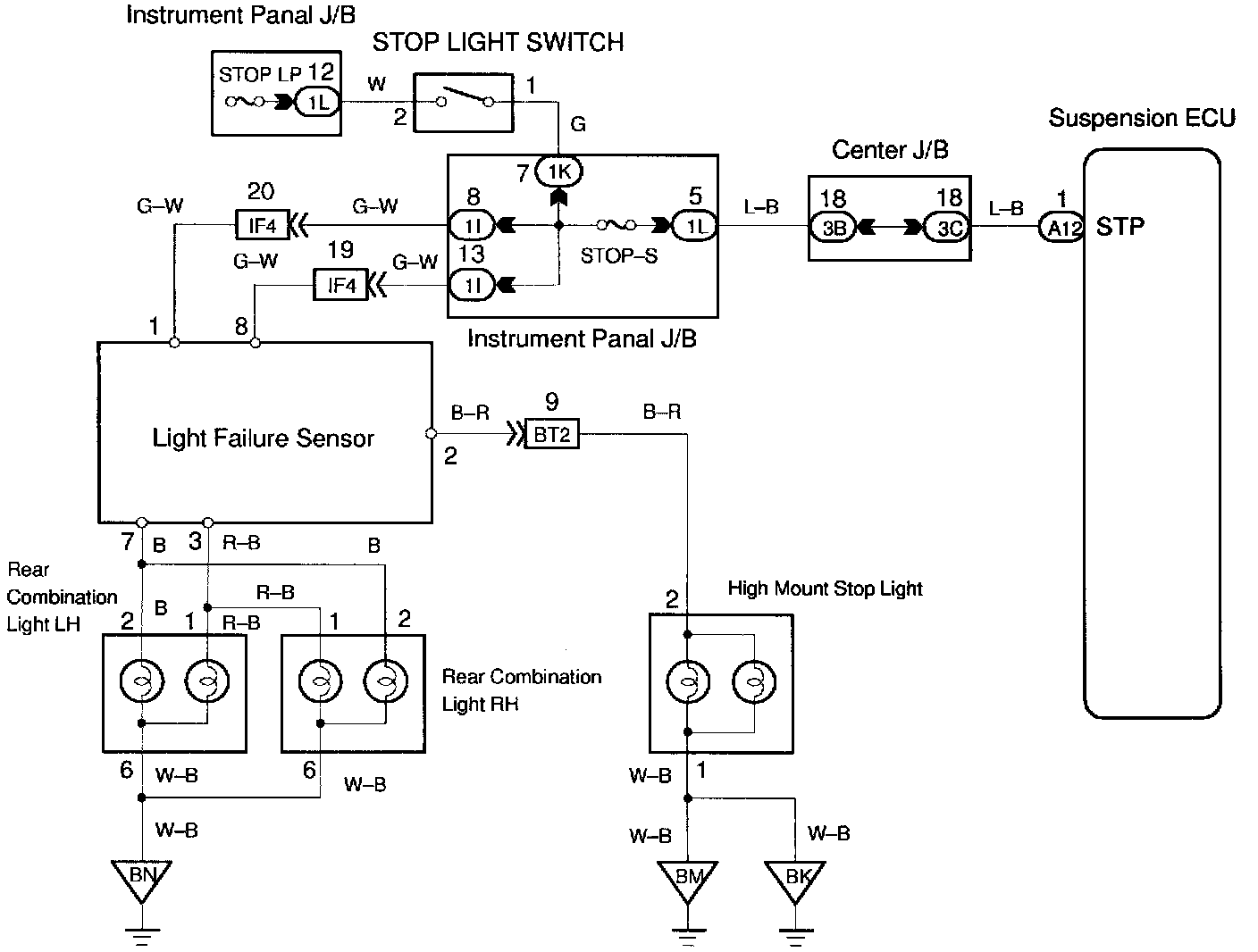

WIRING DIAGRAM

Step 1:

Step 2:

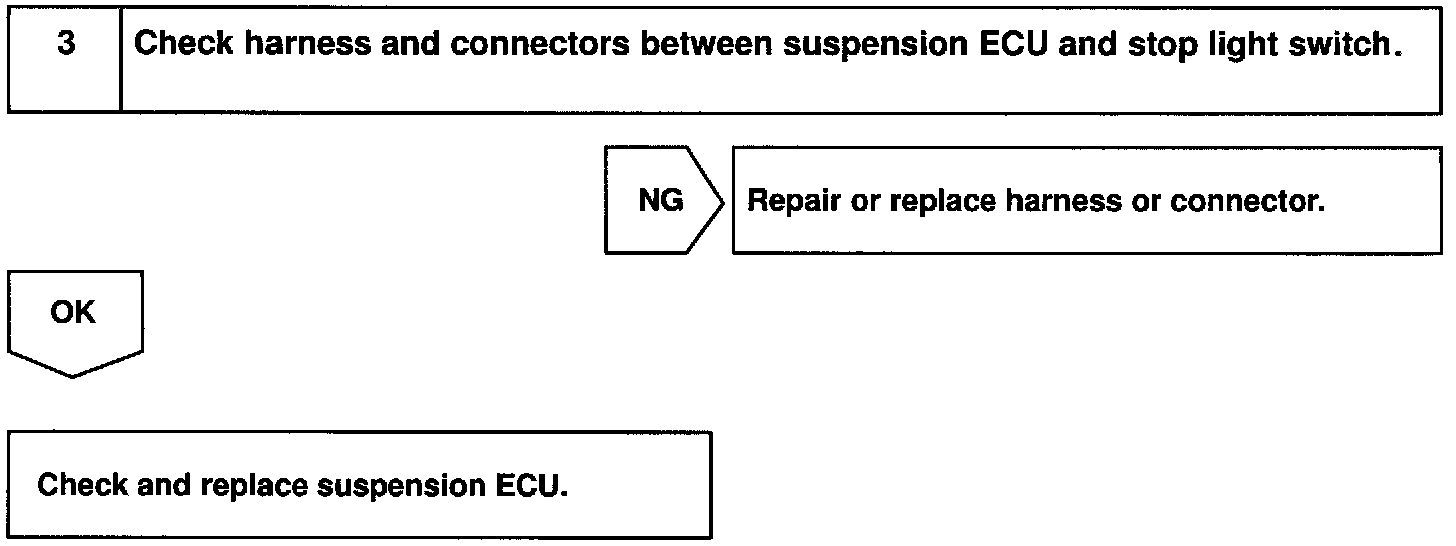

Step 3:

INSPECTION PROCEDURE
