DTC 51


DTC 51 Continuous Electric Current to Air SUS Relay

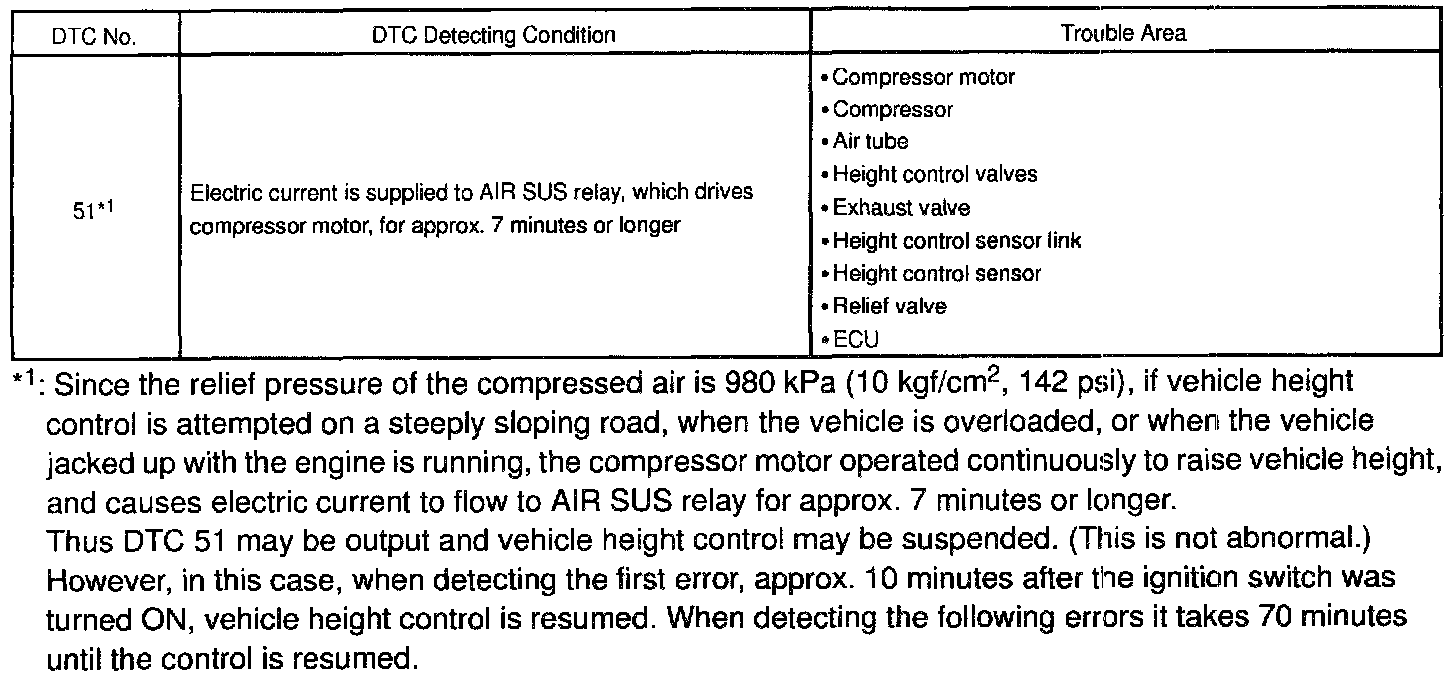

DETECTING CONDITIONS

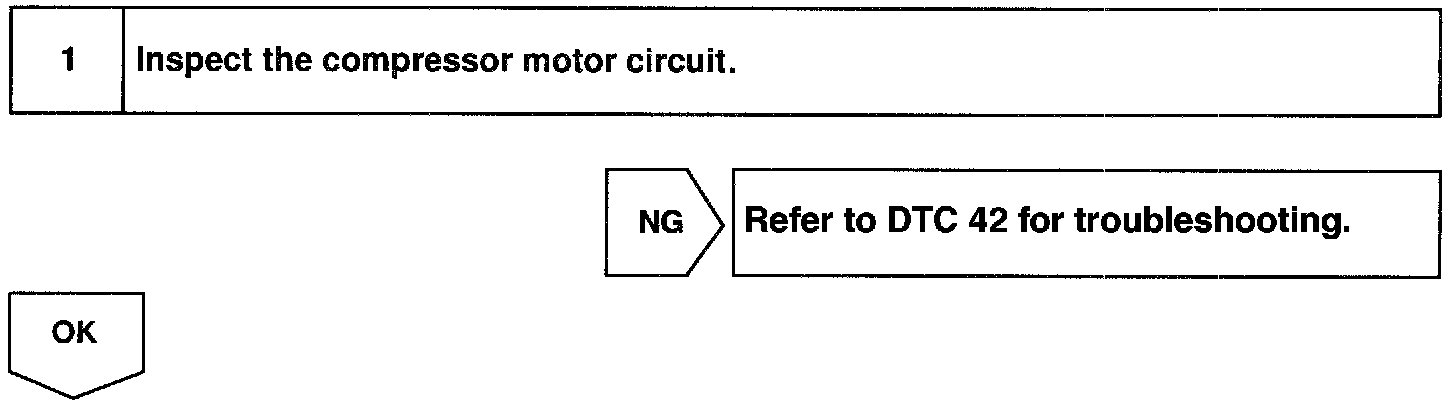

Step 1:

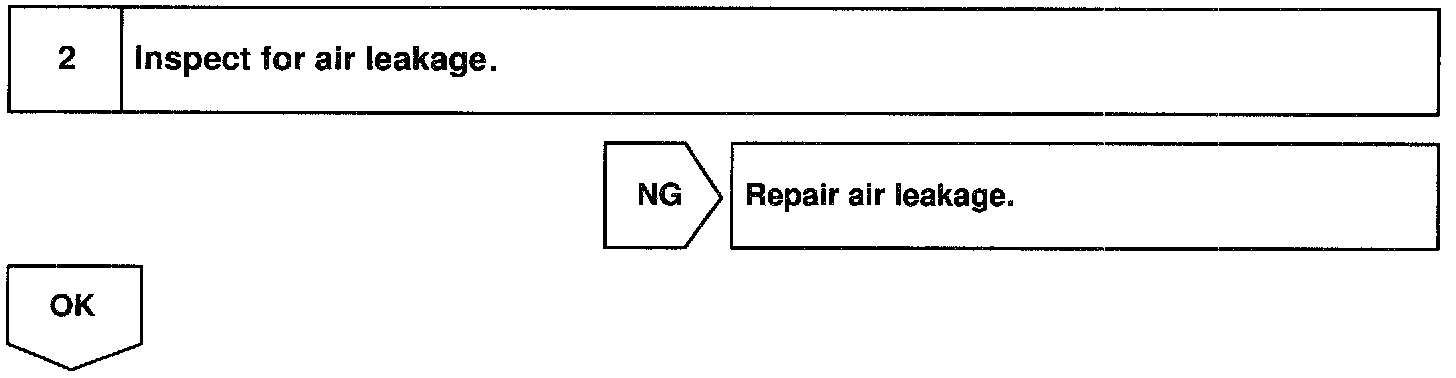

Step 2:

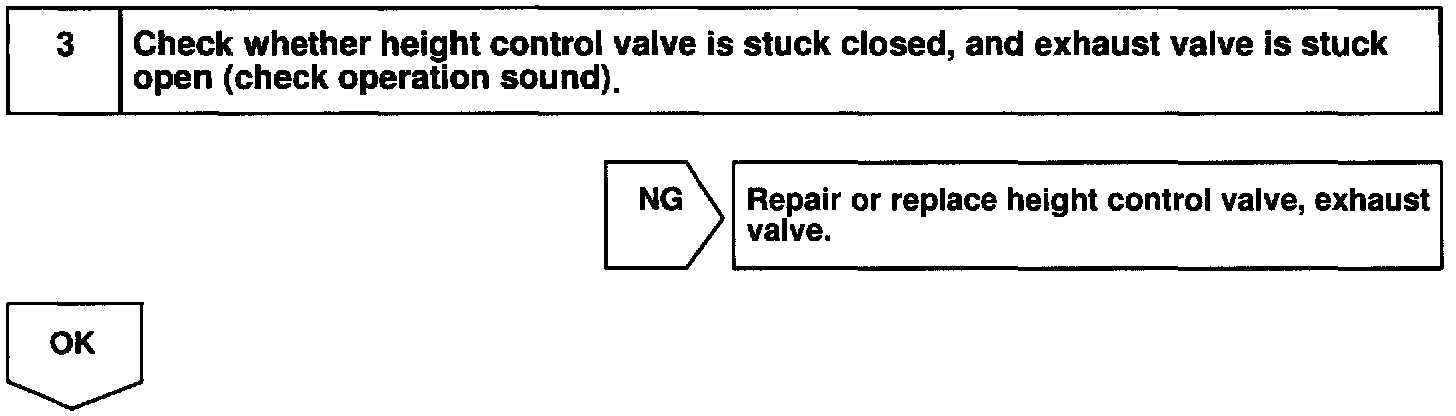

Step 3:




Step 4:

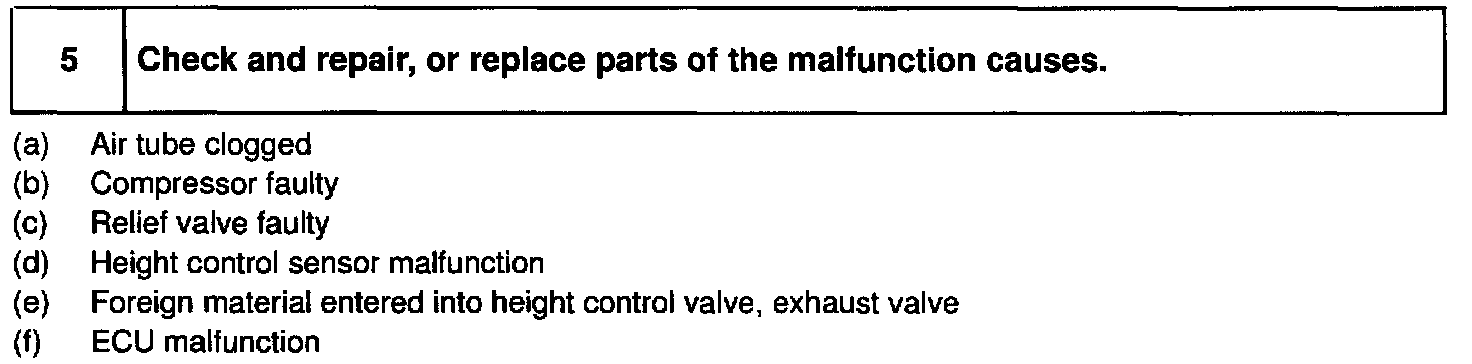

Step 5:





INSPECTION PROCEDURE
