ABS (Antilock Brake System)

Part 1 Of 2:

Part 2 Of 2:

NOTICE: Before replacing or removing the part, turn the ignition switch OFF.

HINT:
- Using SST 09843-18020, connect the terminals TC and E1, and remove the short pin.
- If any abnormality is not found when inspection parts, inspect the ECU.

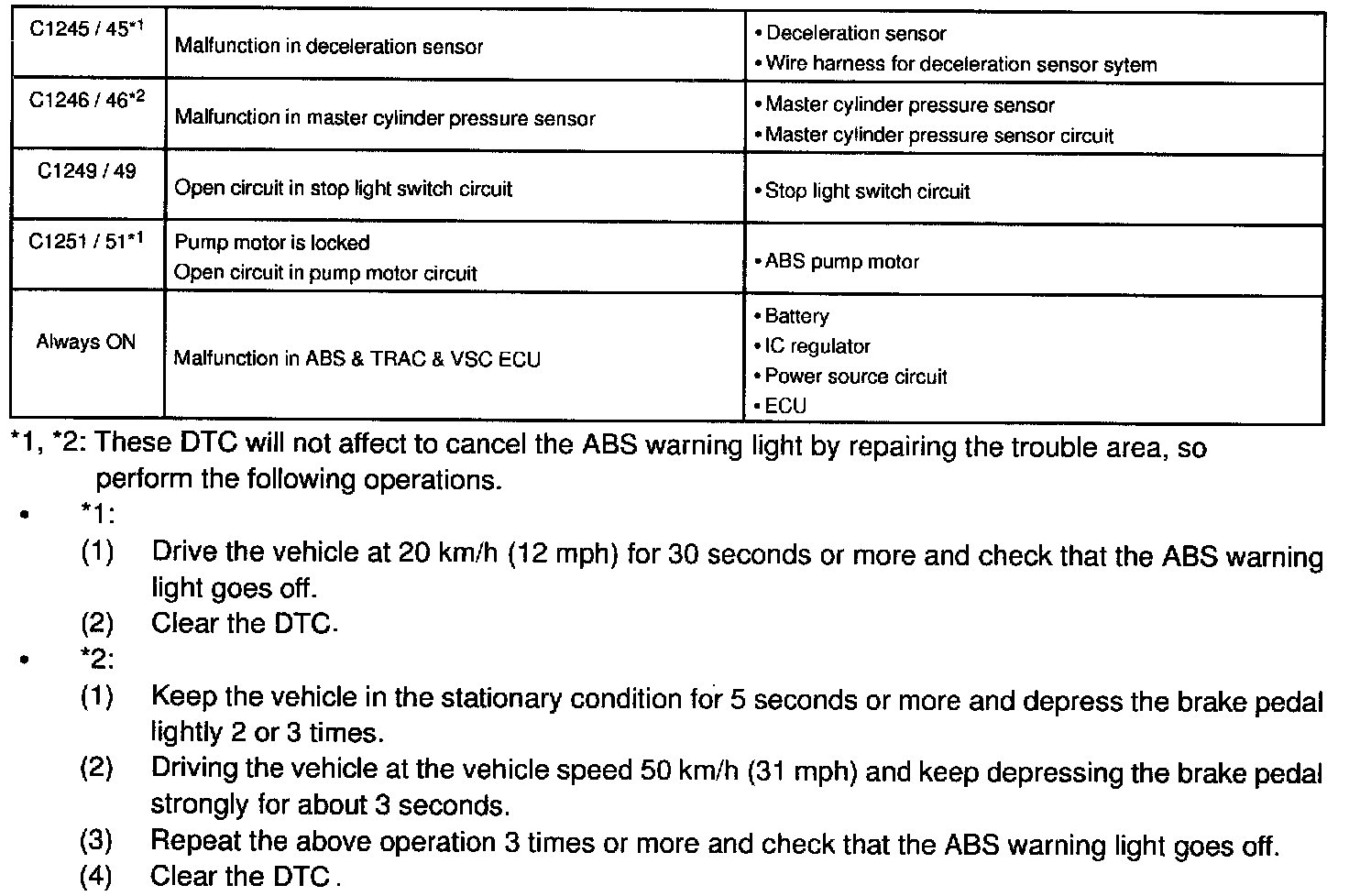

- If a malfunction code is displayed during the DTC check, check the circuit listed that the code.

HINT: There is a case that LEXUS hand-held tester cannot be used when ABS warning light is always on.
