ABS W/Traction Control (TRAC)

DTC C1202 Brake Fluid Warning Switch Circuit

CIRCUIT DESCRIPTION
The brake fluid level warning switch sends the appropriate signal to the ECU where the brake fluid level drops.

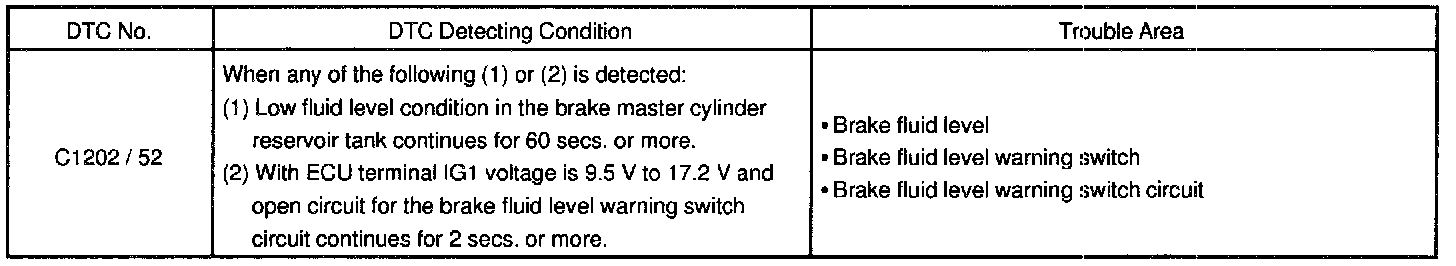

DETECTING CONDITIONS

HINT: Depress the parking brake pedal also turns on the brake warning light but does not diagnose DTC No. C1202/ 52.





WIRING DIAGRAM

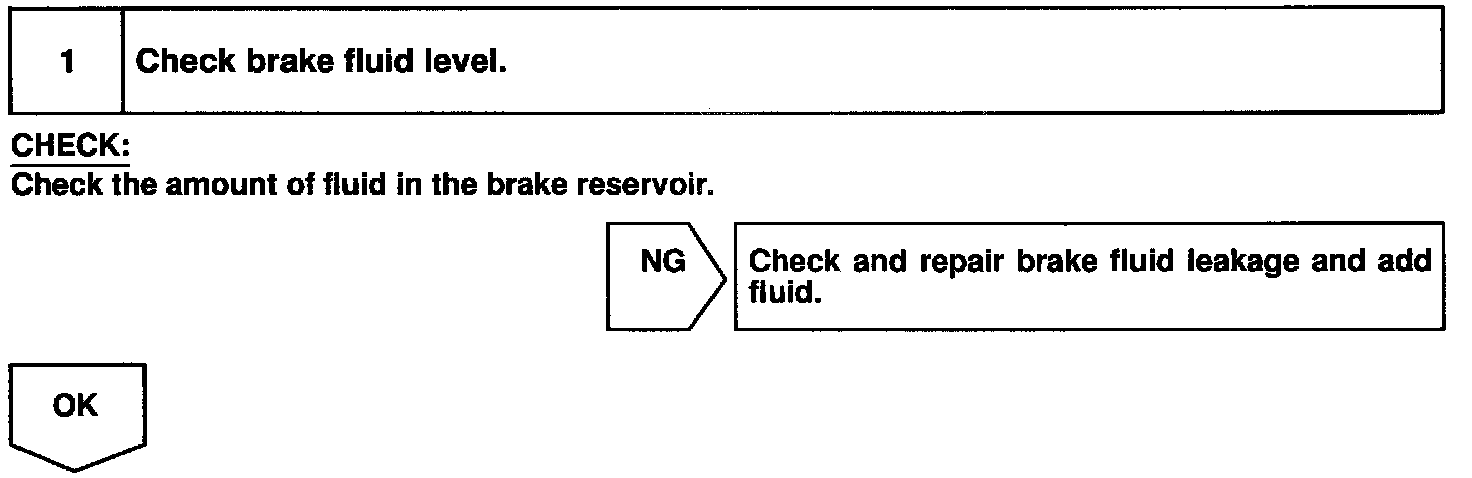

Step 1:

Step 2:

Step 3:

INSPECTION PROCEDURE
