B2611

DTC B2611 Telescopic Position Sensor or Telescopic Motor Circuit Malfunction





CIRCUIT DESCRIPTION
Telescopic motor is operated by the power voltage supplied from tilt and telescopic ECU and makes the steering column slide forward and rearward. Telescopic position sensor detects the sliding position of the toward and rearward direction of the steering column and outputs the signal to tilt and telescopic ECU in response to that sliding amount.

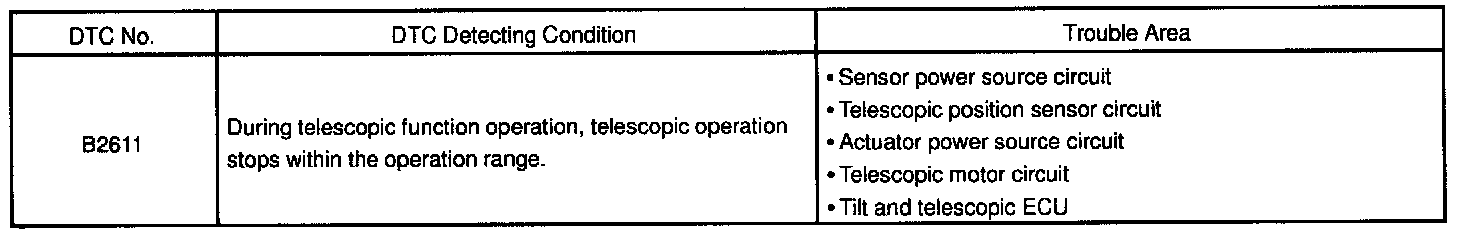

DETECTING CONDITIONS

HINT: Limit positions can be confirmed on the screen of the LEXUS hand-held tester.





WIRING DIAGRAM

Step 1:

Step 2:

Step 3:

Step 4:

INSPECTION PROCEDURE
