DTC B1432 Air Inlet Damper Position Sensor Circuit





CIRCUIT DESCRIPTION
This sensor detects the position of the air in let damper and sends the appropriate signals to the A/C control assembly. The position sensor is built into the air inlet damper control servomotor assembly.





DETECTING CONDITIONS





WIRING DIAGRAM

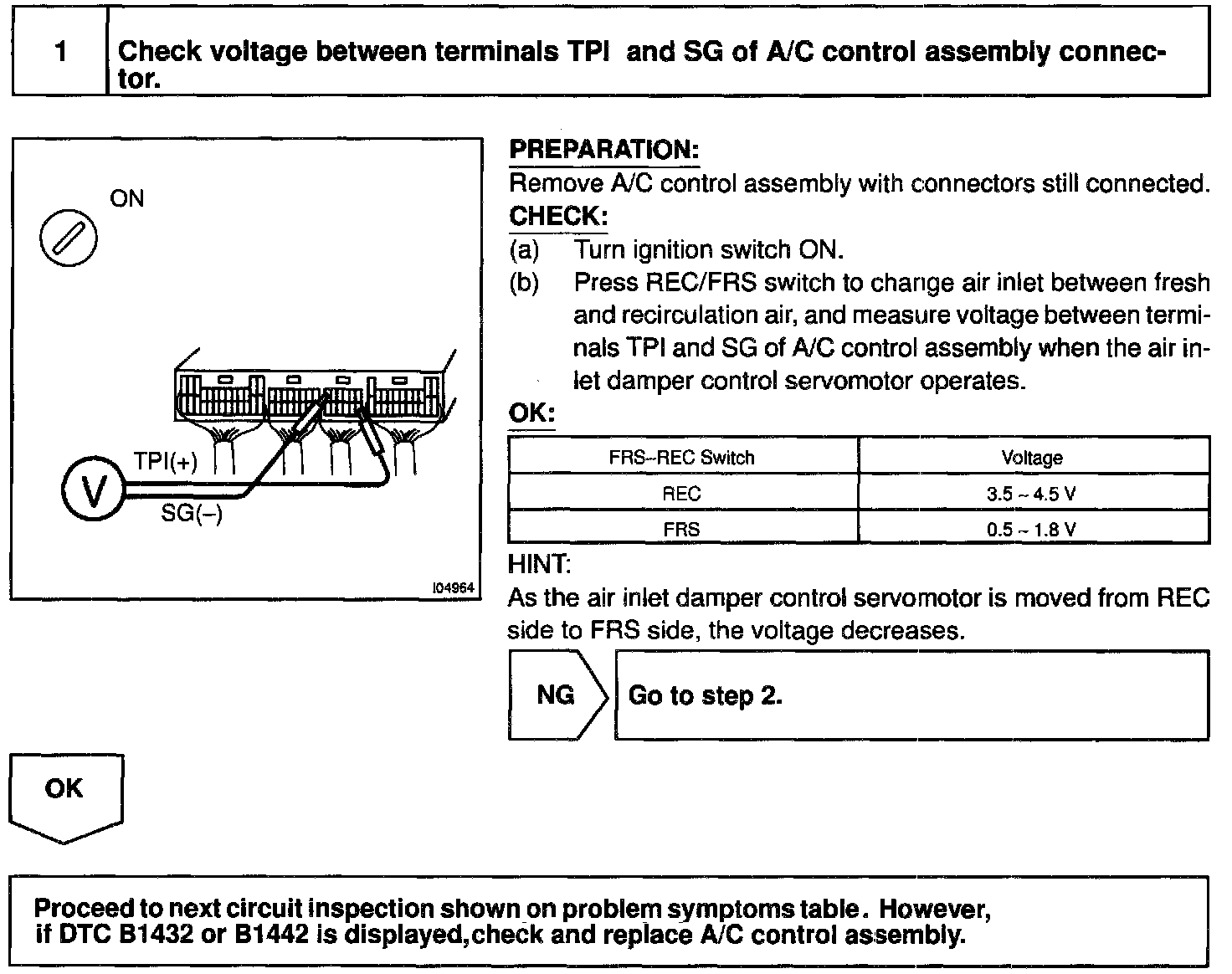

Step 1:

Step 2:

Step 3:

INSPECTION PROCEDURE
